Compressor/Pump, Suspension Control



Air Suspension Connector End Views

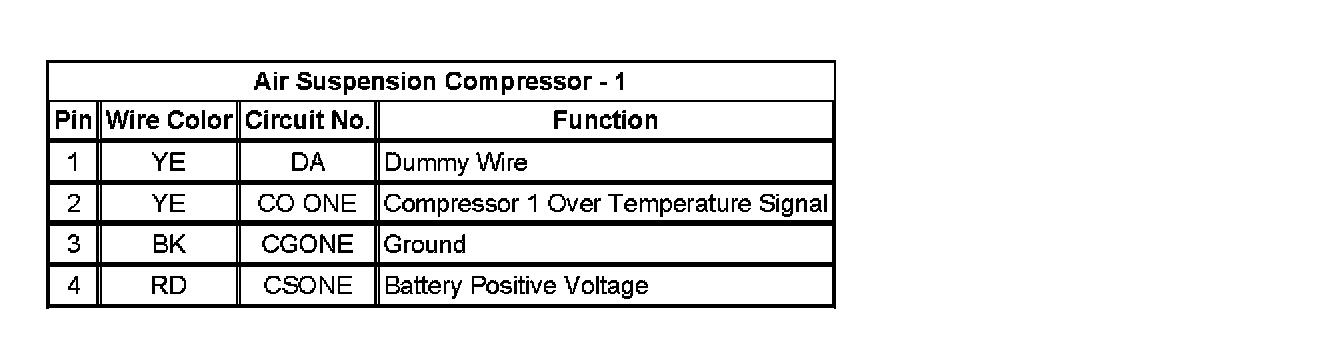

Air Suspension Compressor - 1:

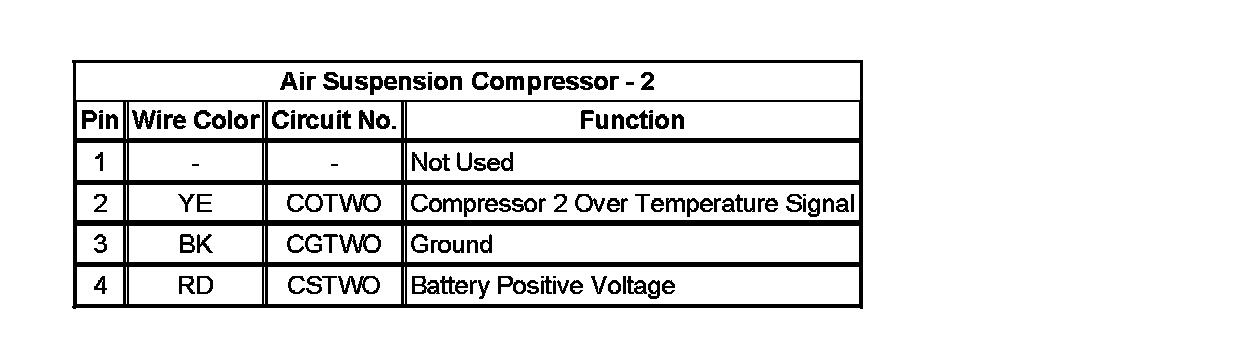

Air Suspension Compressor - 2:
