Compressor/Pump Relay, Suspension Control

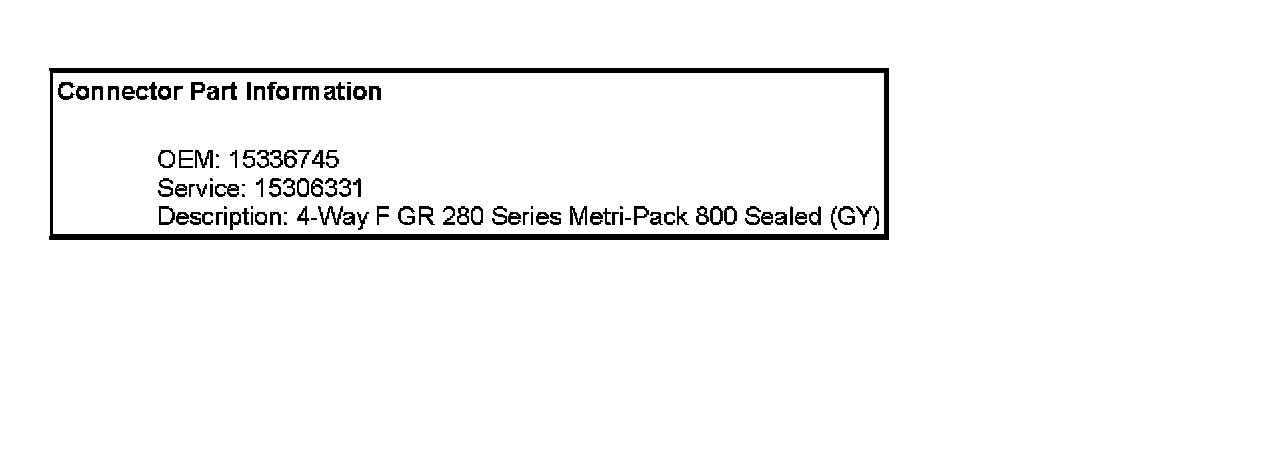

Air Suspension Connector End Views

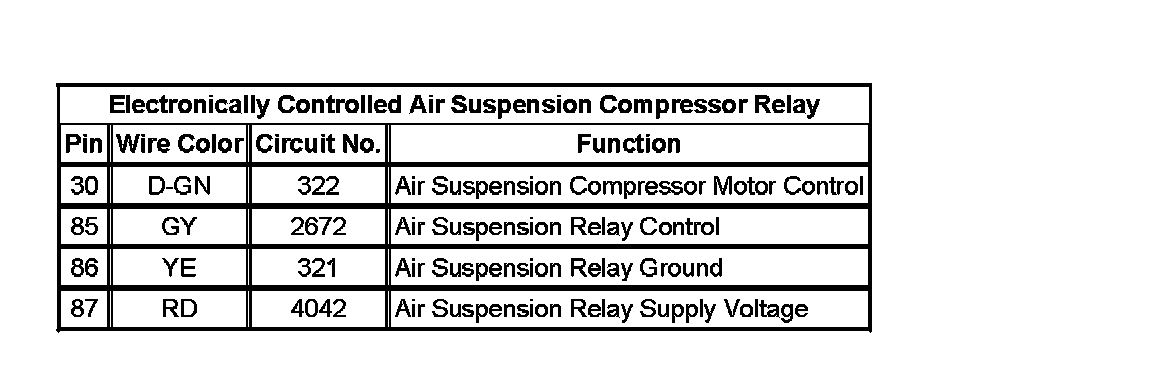

Electronically Controlled Air Suspension Compressor Relay:
