Secondary/Configurable Control Connector End Views

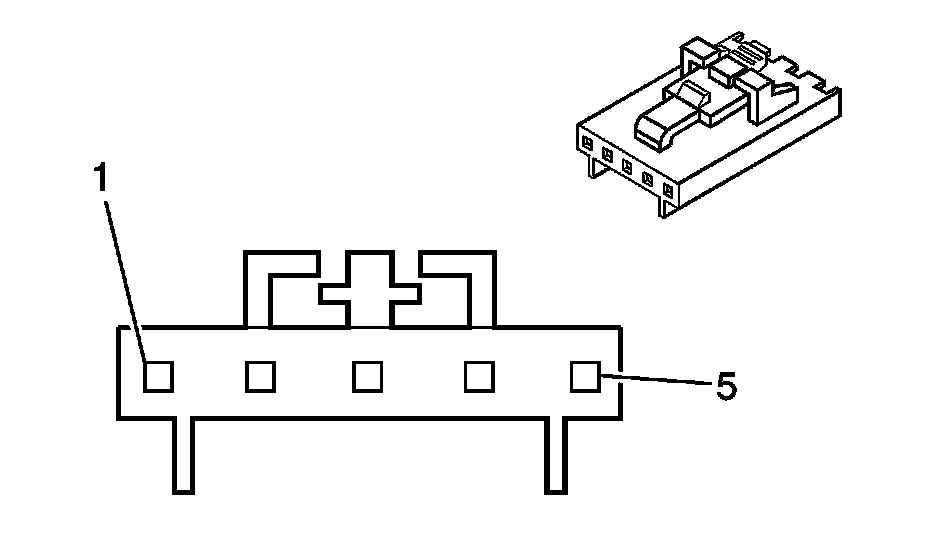

Secondary/Configurable Control Connector End Views

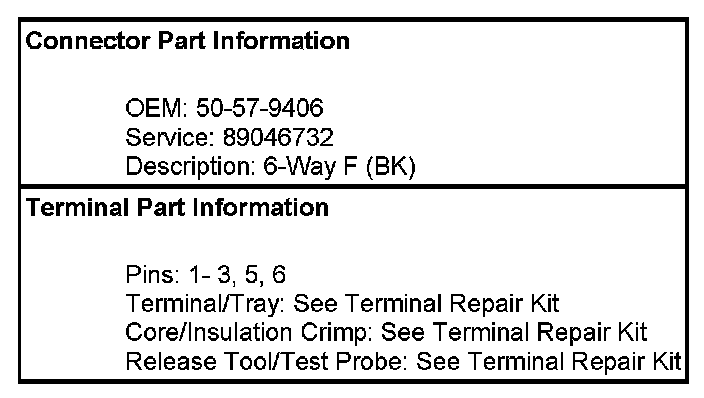

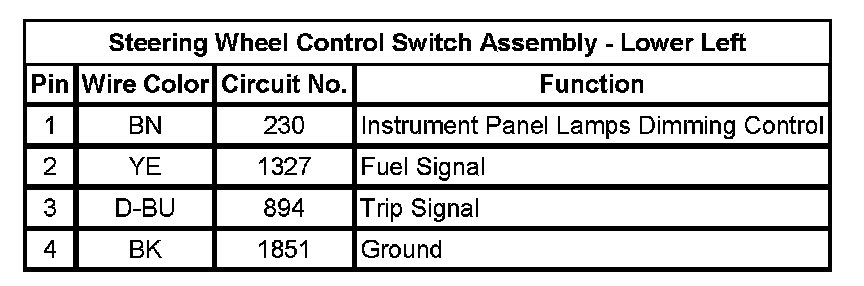

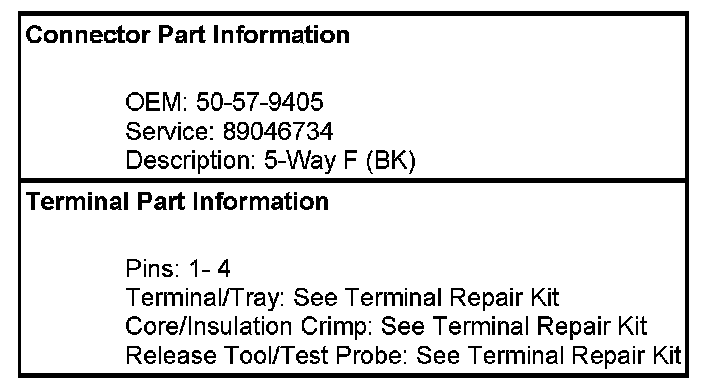

Steering Wheel Control Switch Assembly - Lower Left

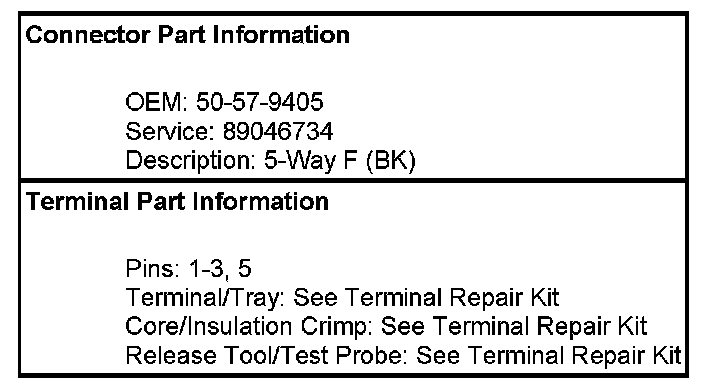

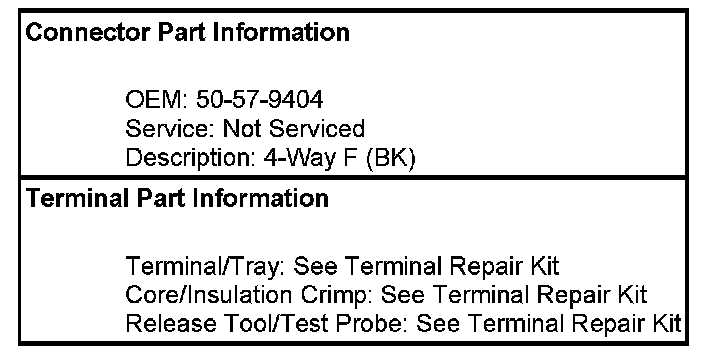

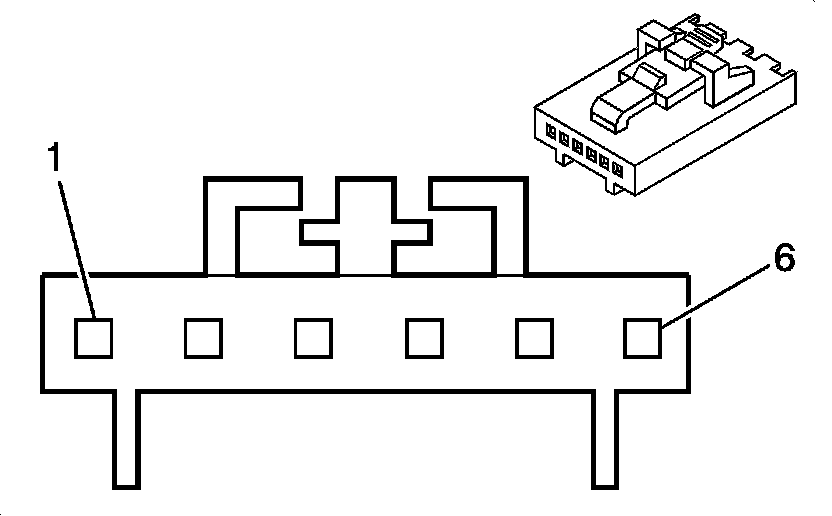

Steering Wheel Controls - Right (UK3):

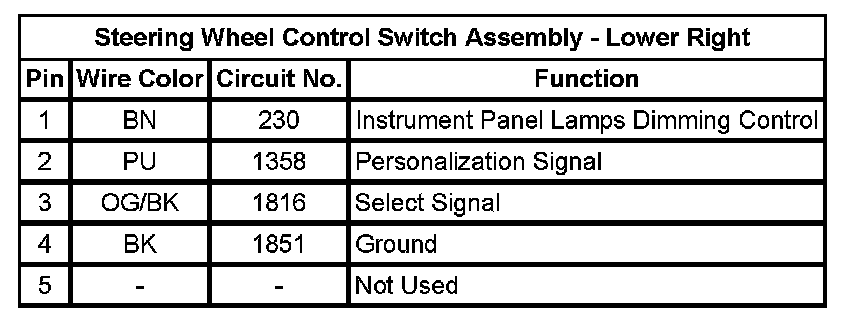

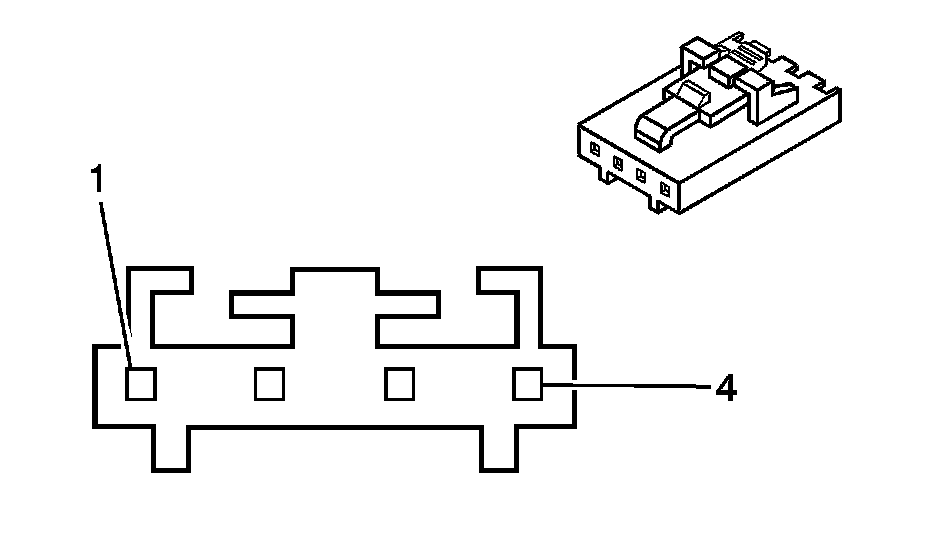

Steering Wheel Control Switch Assembly - Lower Right

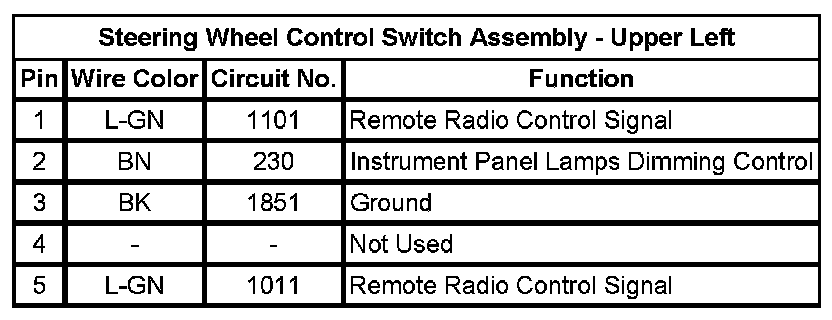

Steering Wheel Control Switch Assembly - Upper Left

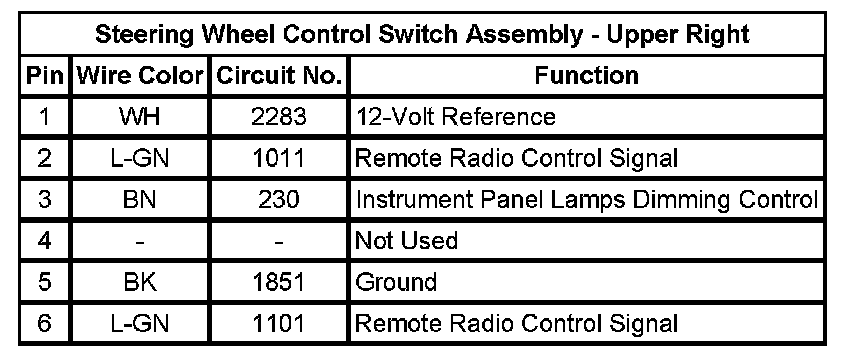

Steering Wheel Control Switch Assembly - Upper Right
