C105

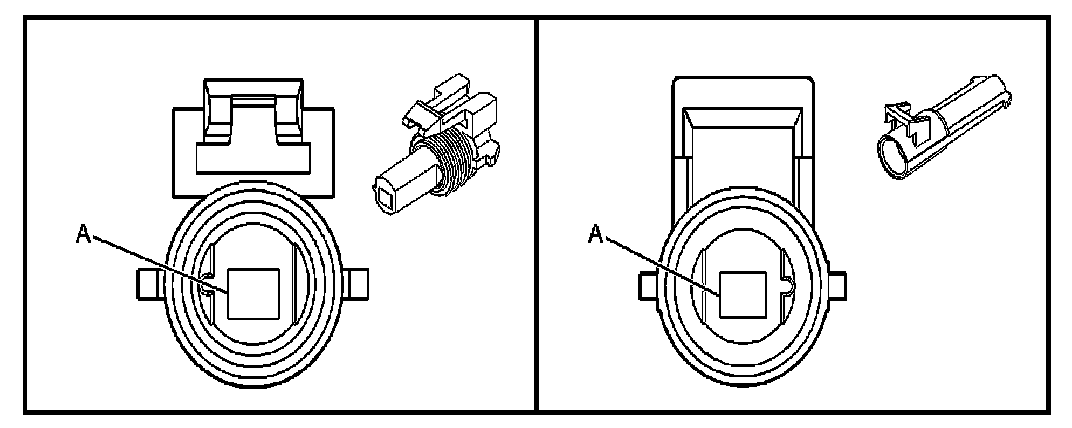

Inline Harness Connector End Views

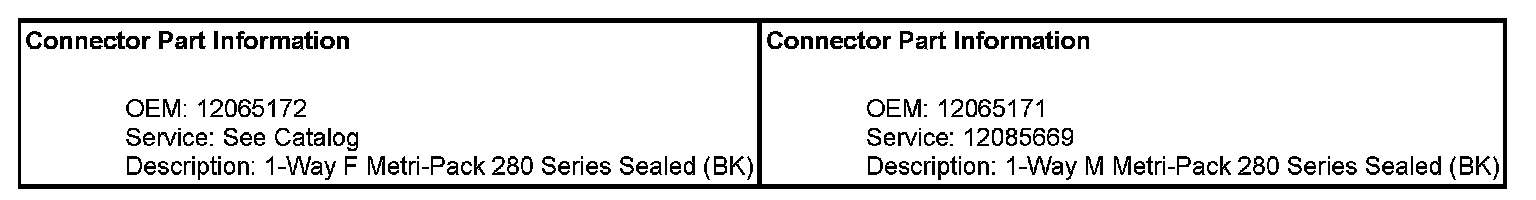

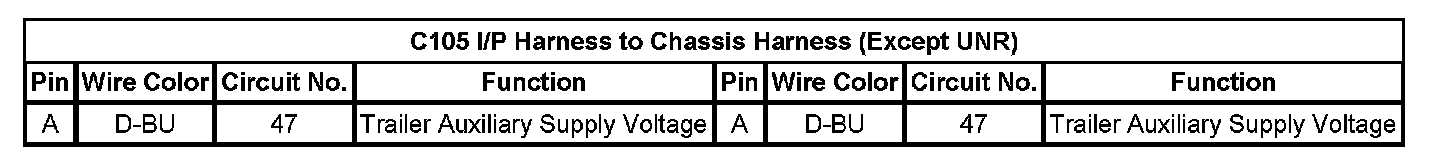

C105 I/P Harness to Chassis Harness (Except UNR)

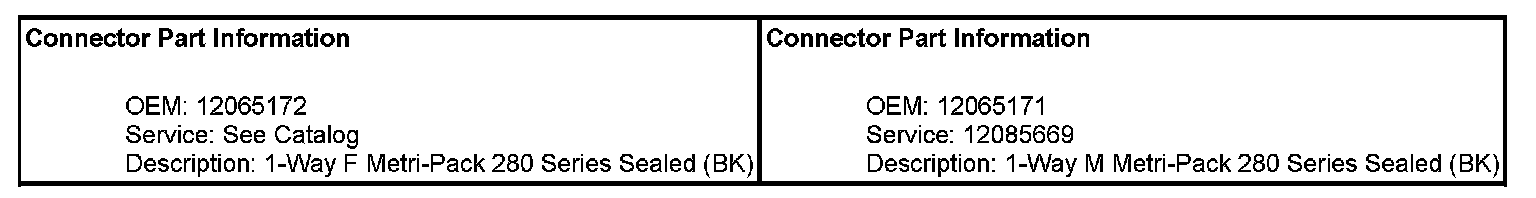

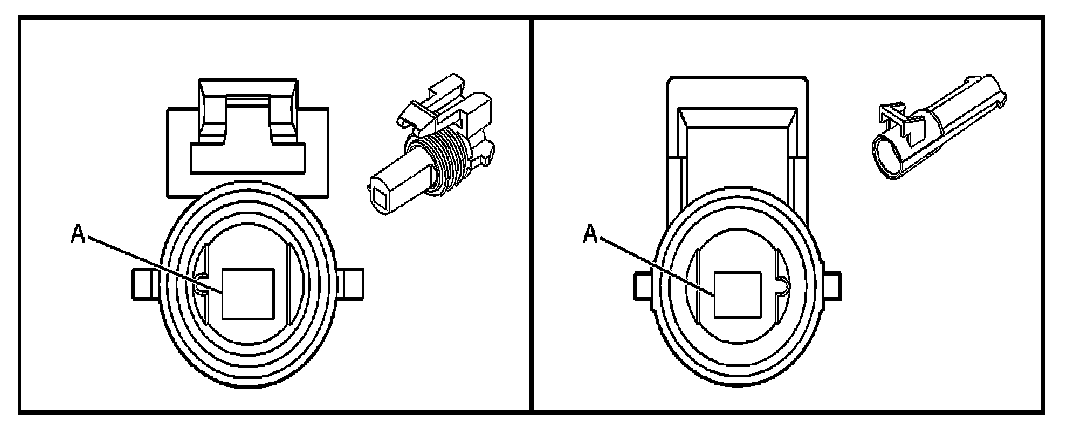

C105 I/P Harness to Grille Brushguard Lamp Harness (UNR)
