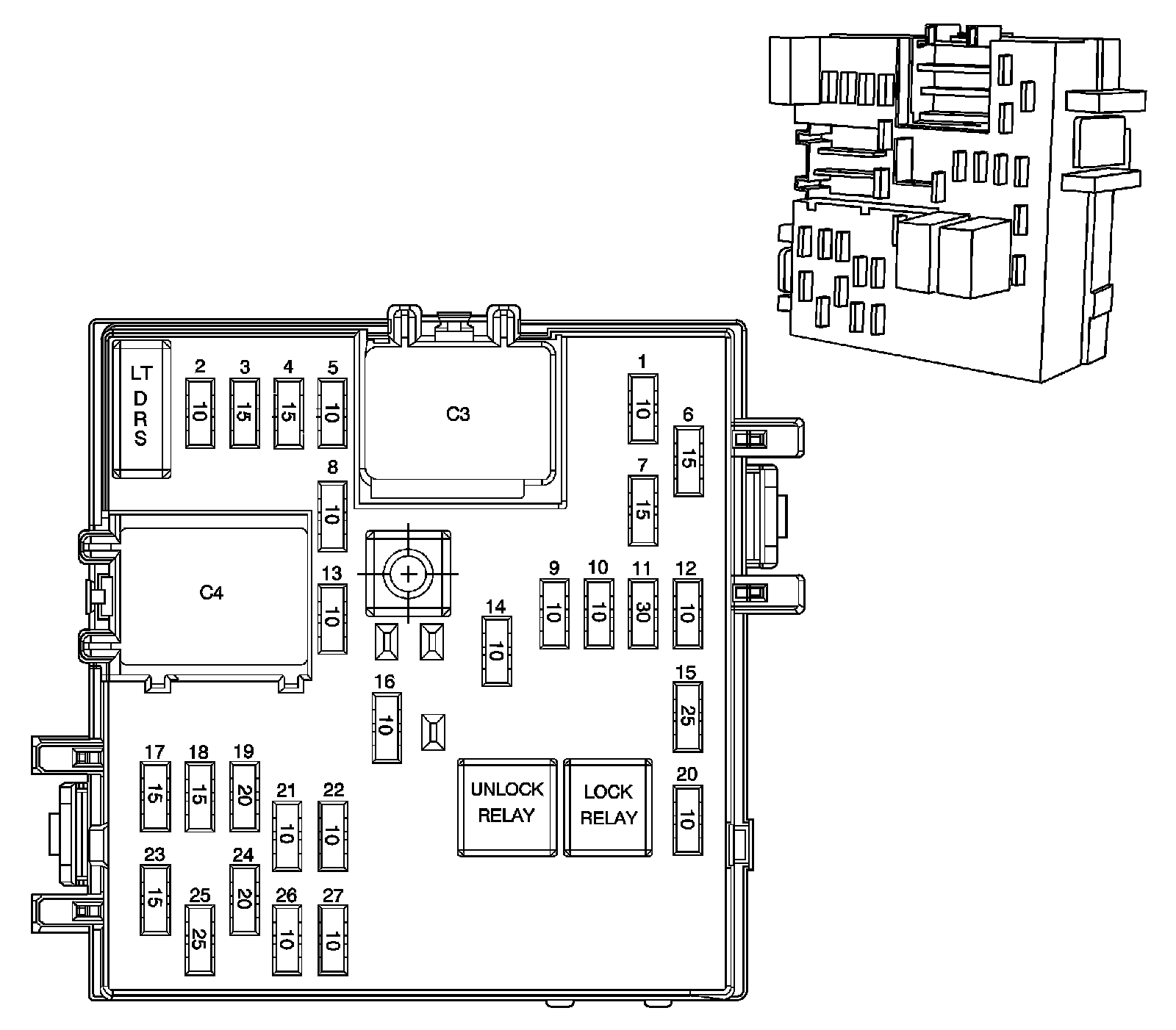

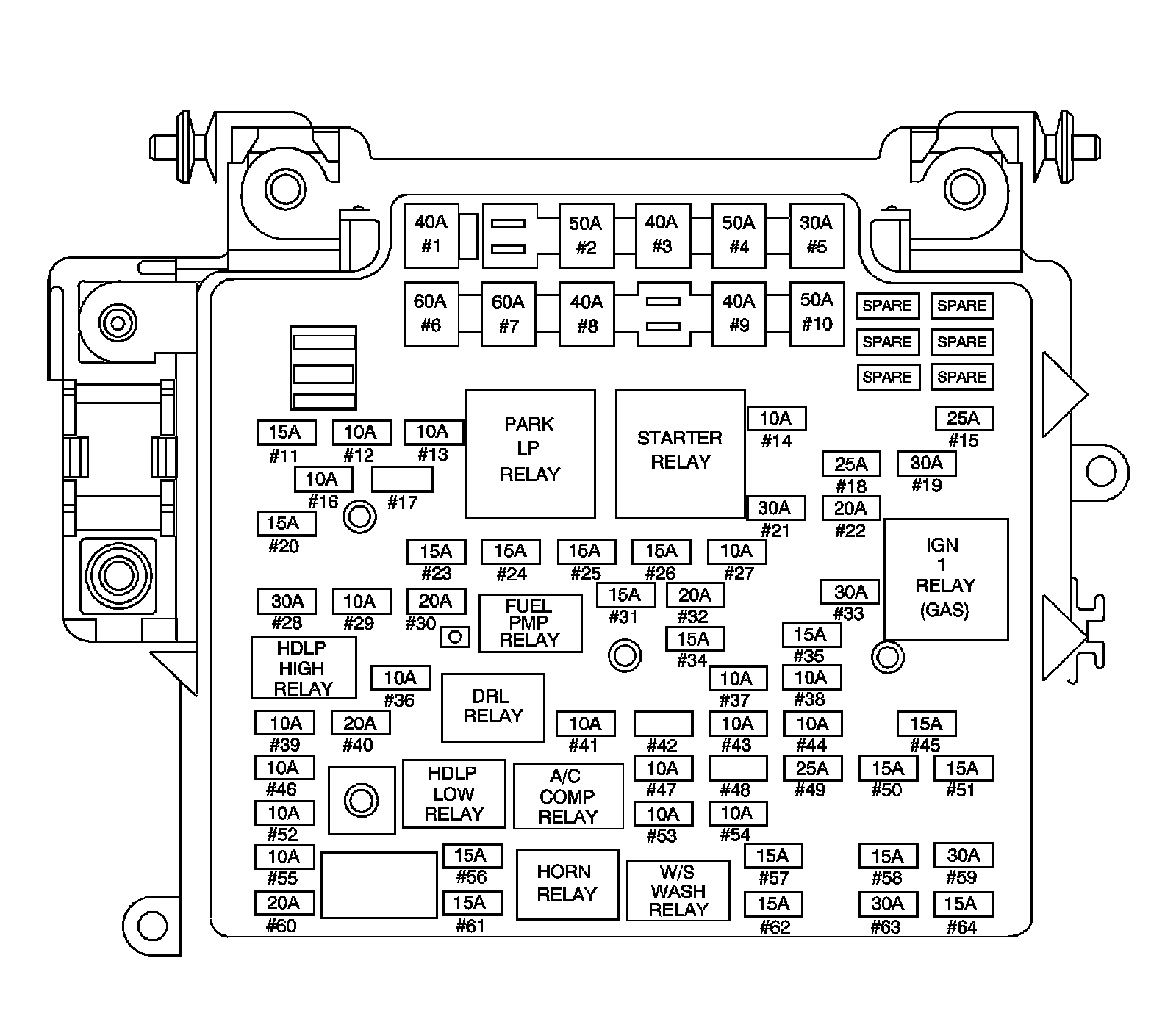

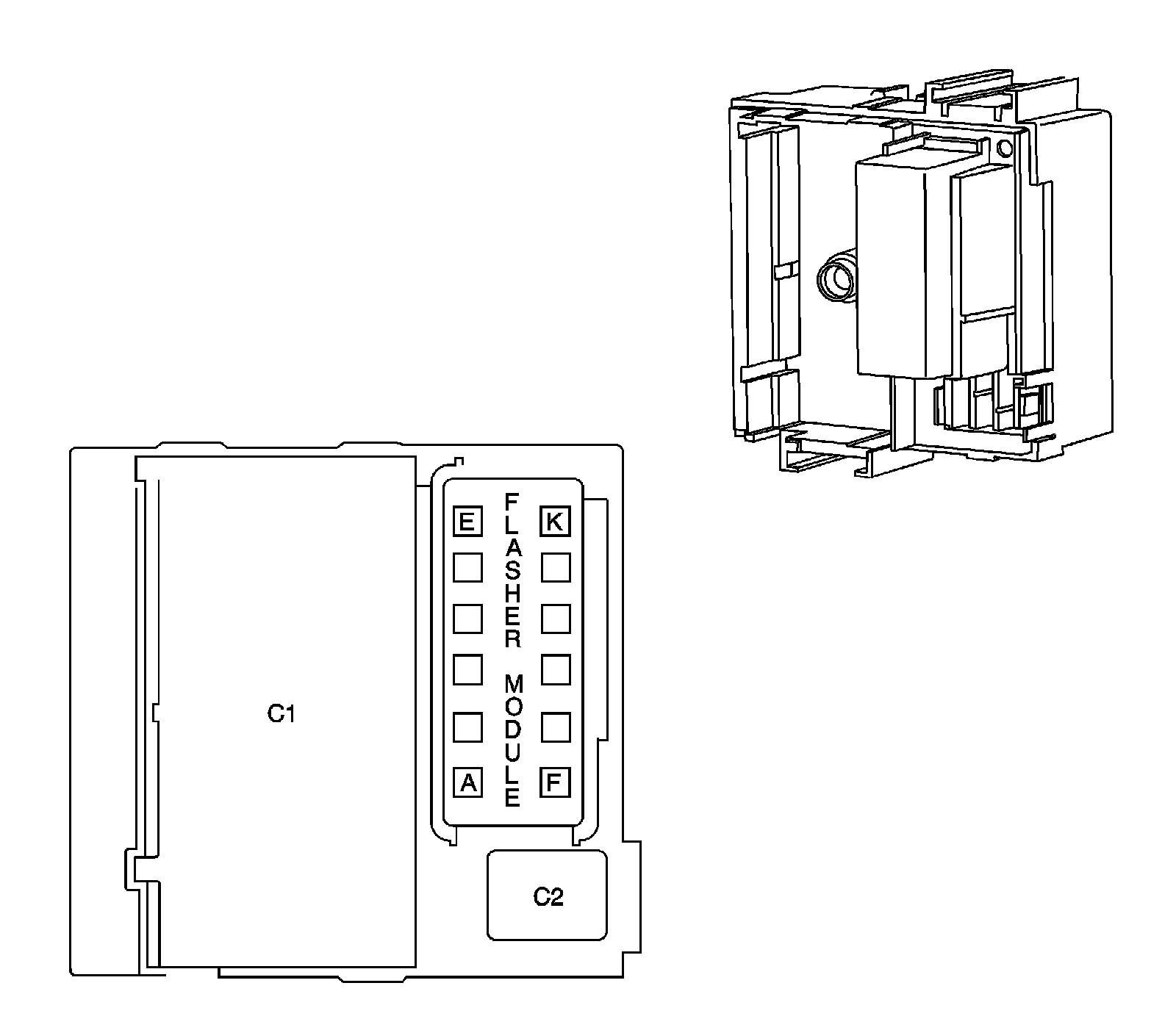

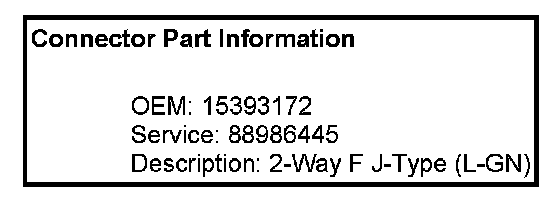

Electrical Center Identification Views

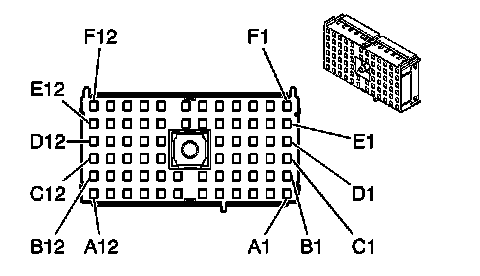

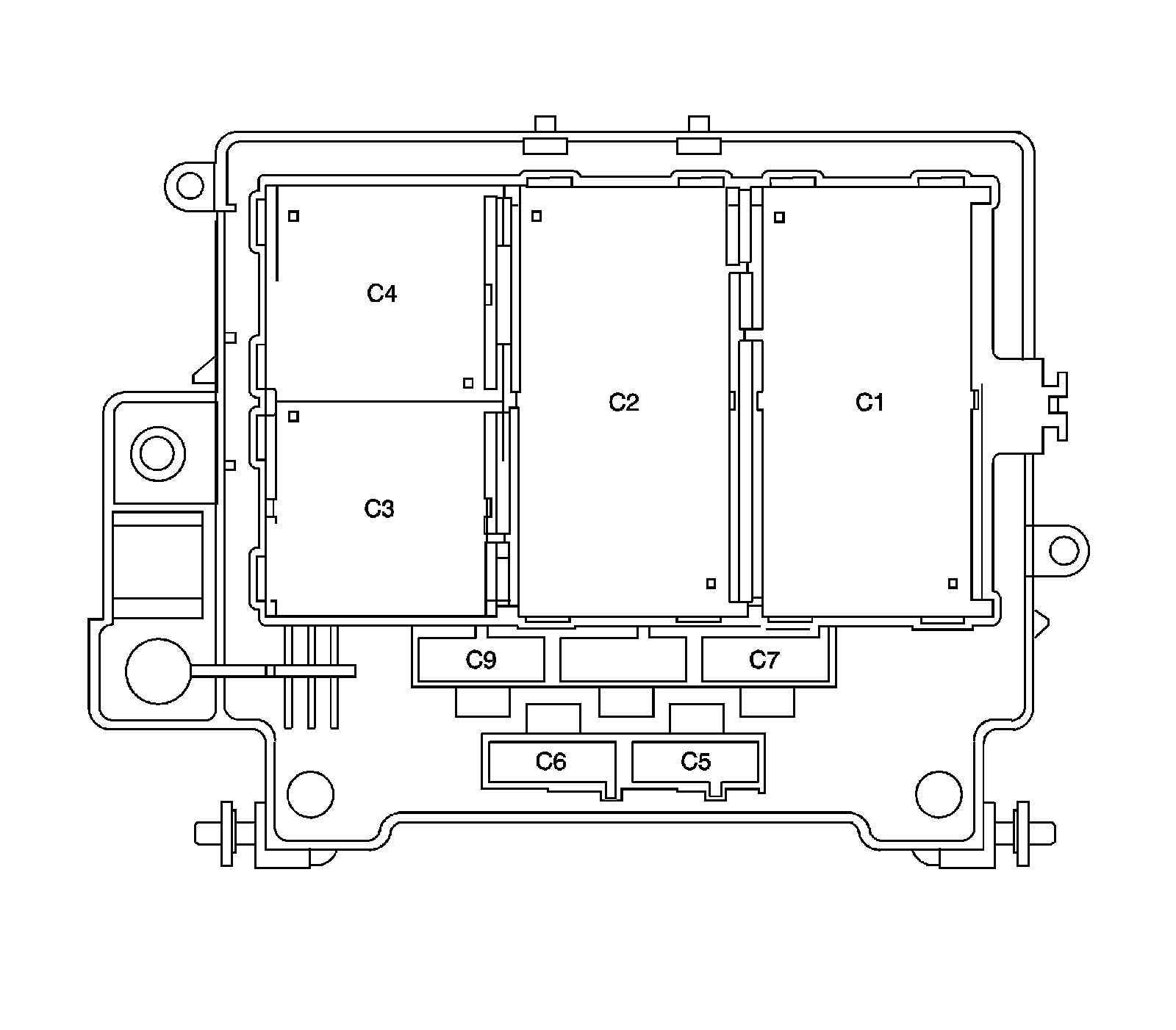

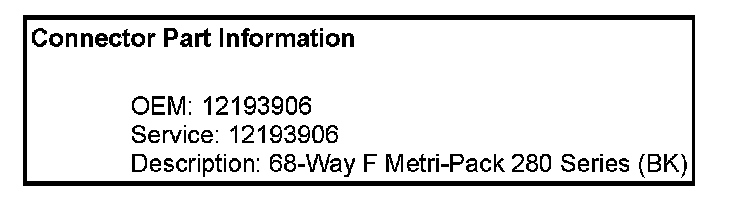

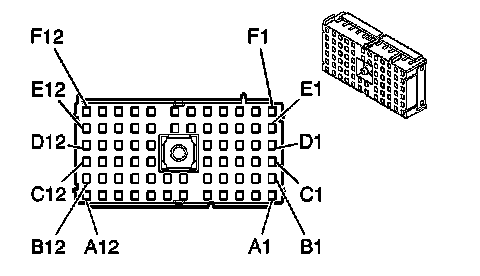

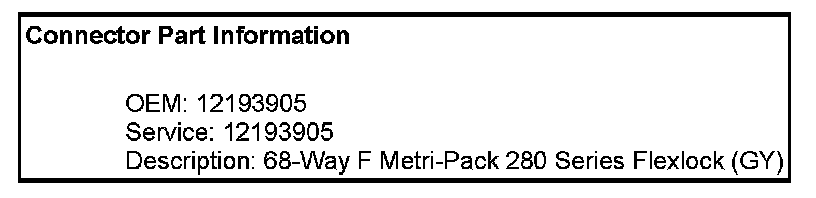

Fuse Block - Underhood C1 (Pin A1 To D3):

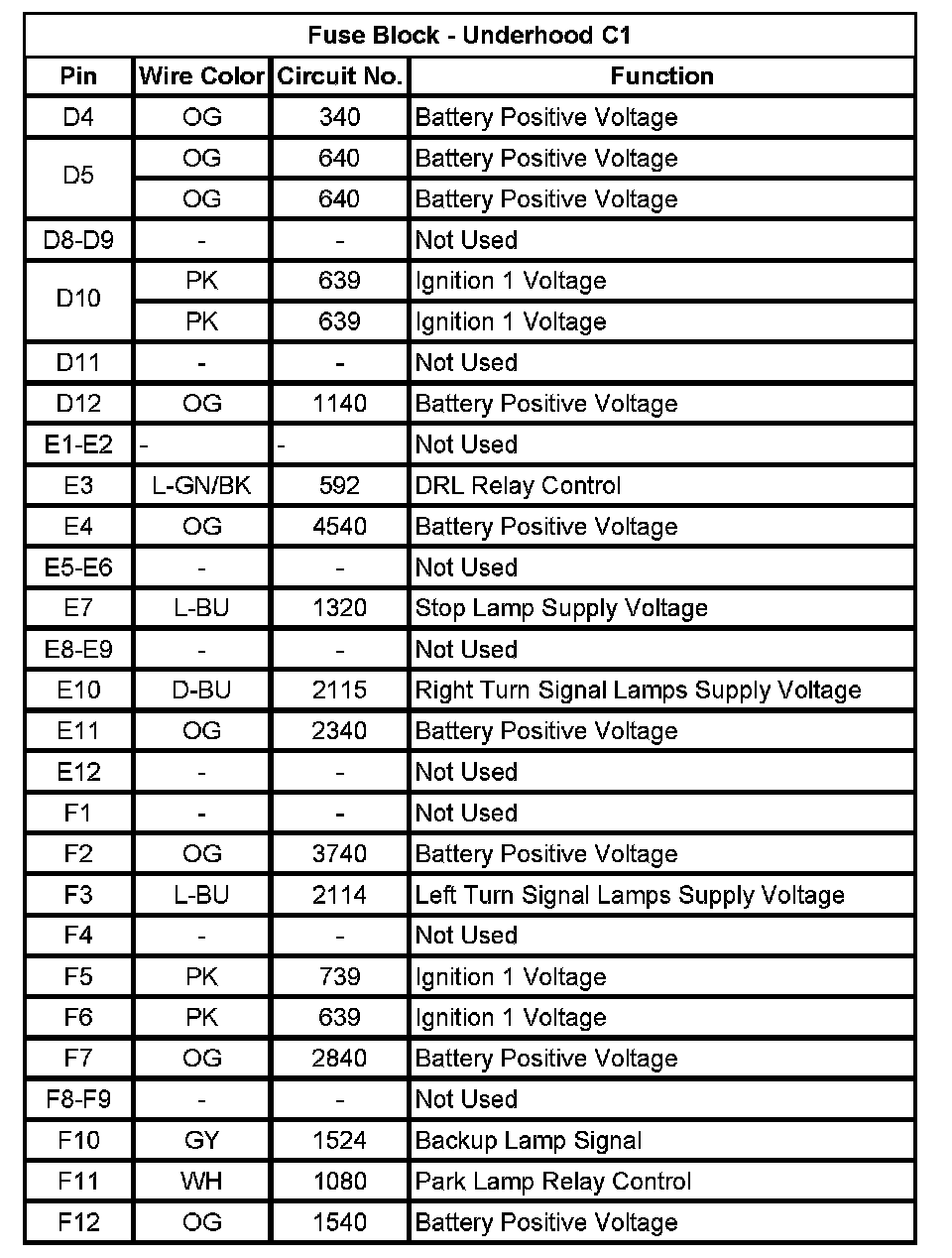

Fuse Block - Underhood C1 (Pin D4 To F12):

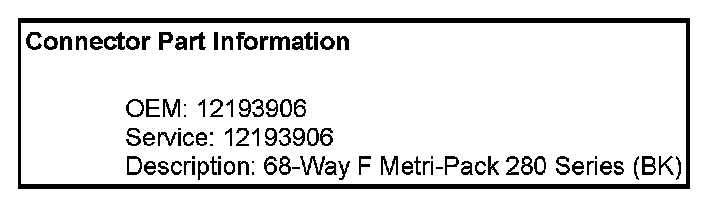

Fuse Block - Underhood C2 (Pin A1 To D12):

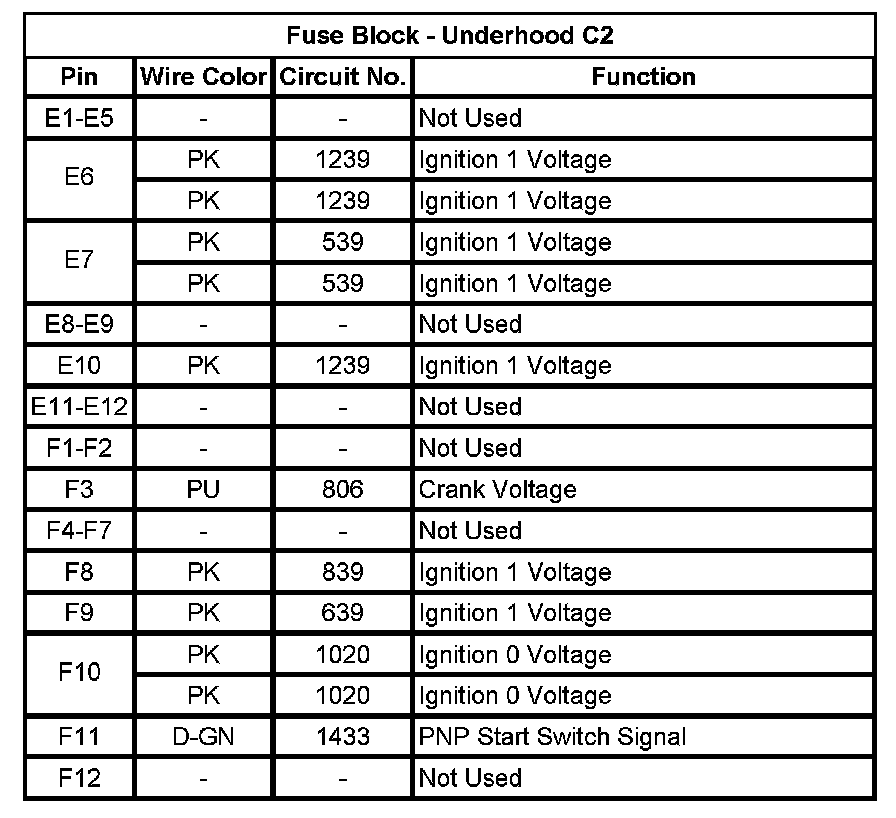

Fuse Block - Underhood C2 (Pin E1 To F12):

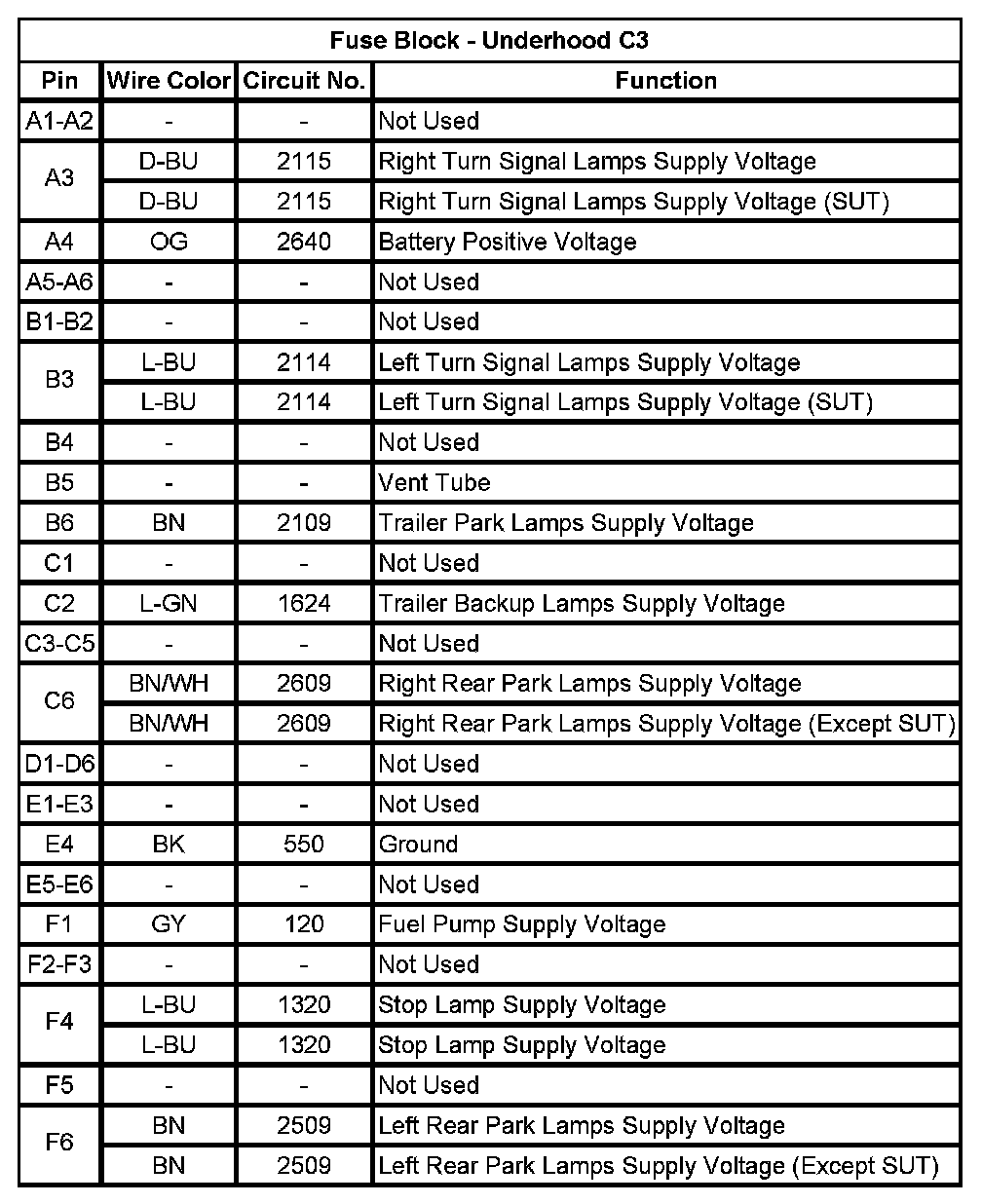

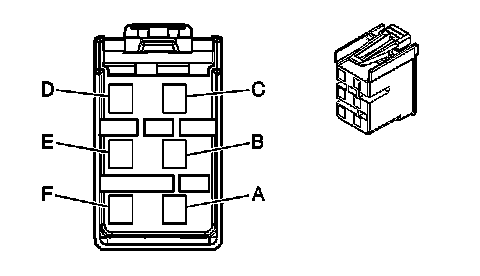

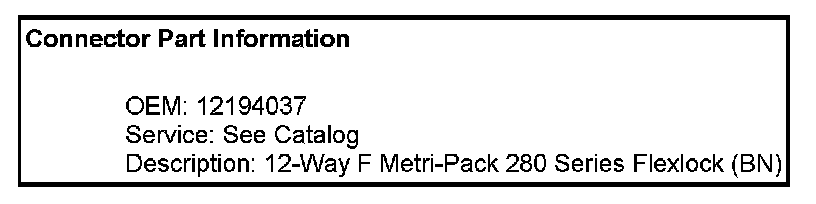

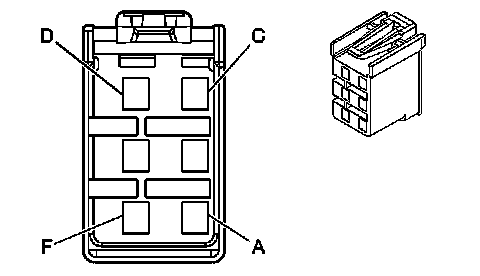

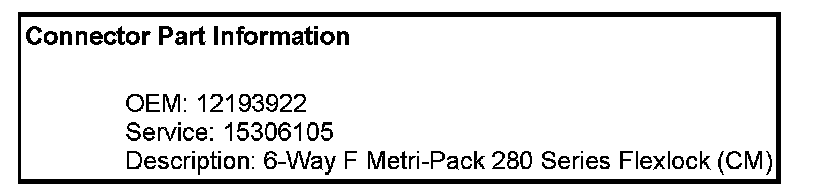

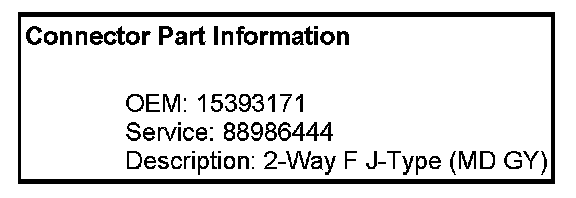

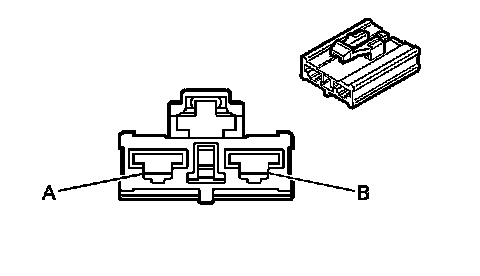

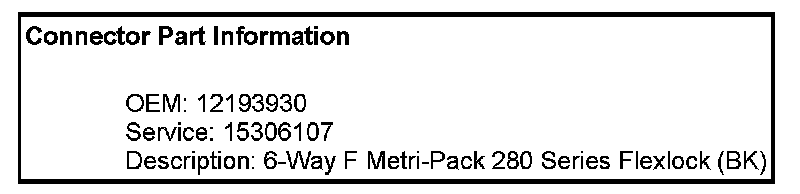

Fuse Block - Underhood C3:

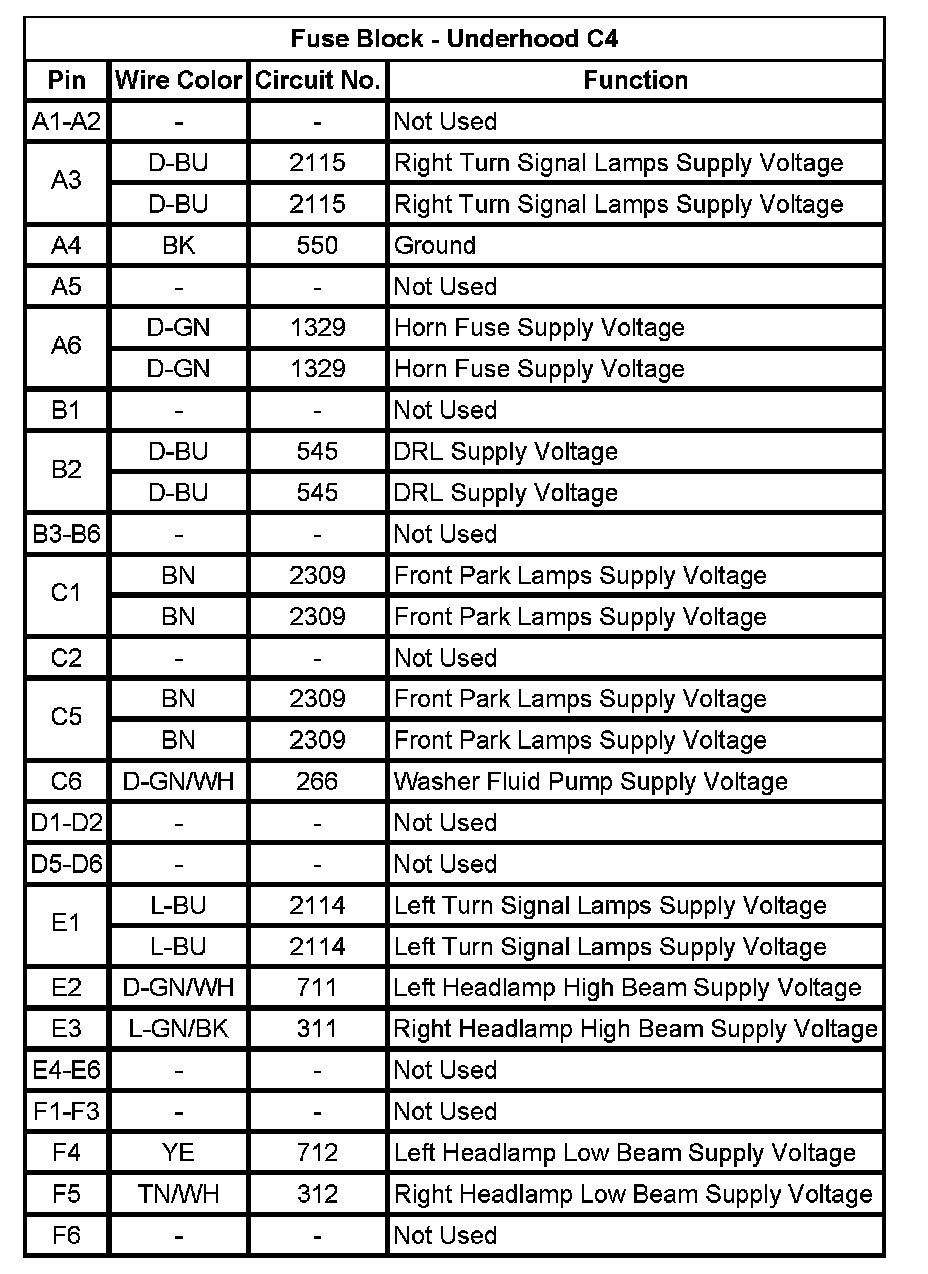

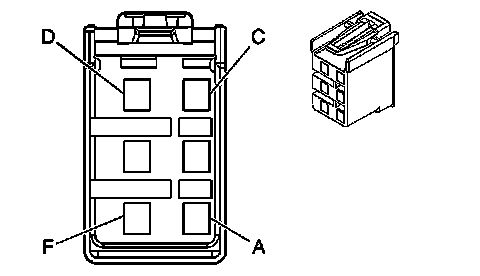

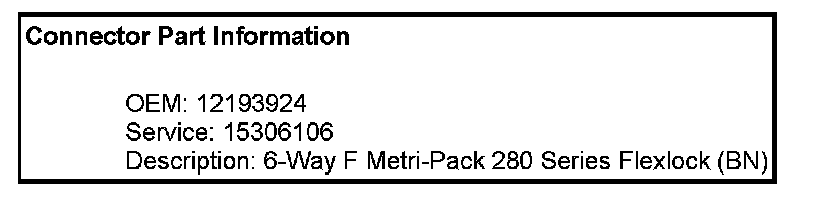

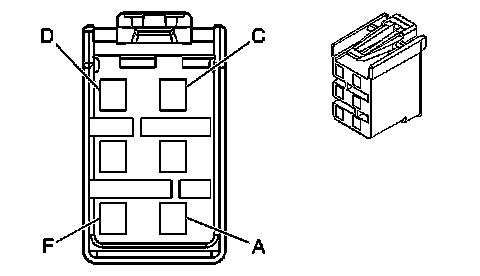

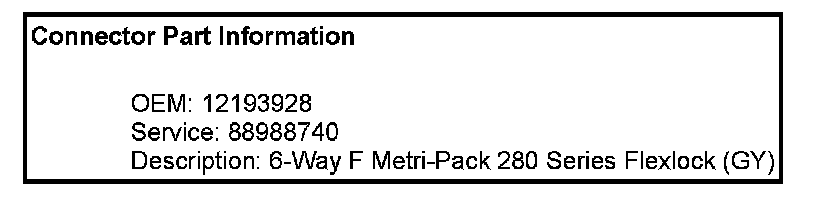

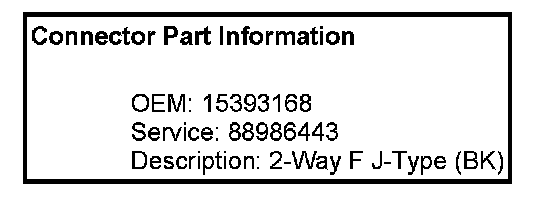

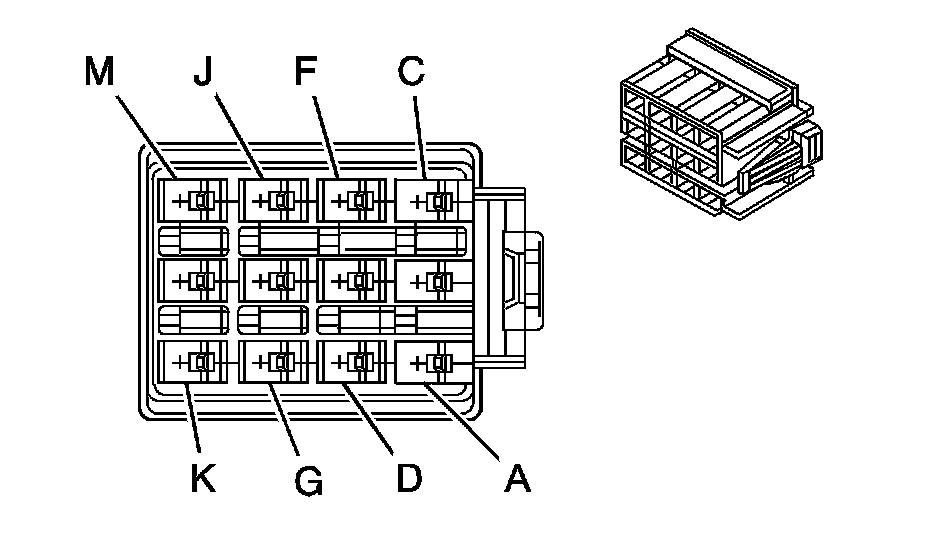

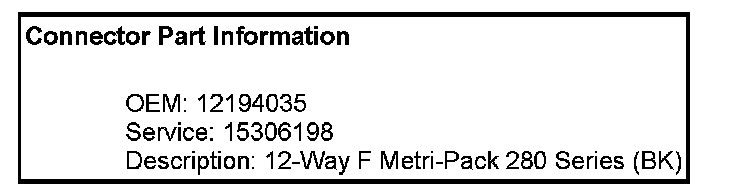

Fuse Block - Underhood C4:

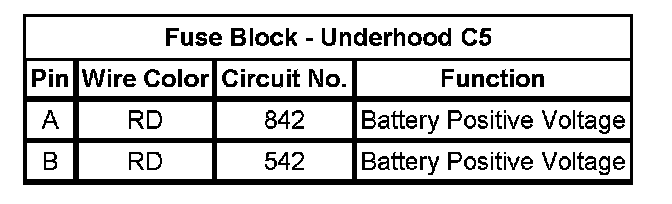

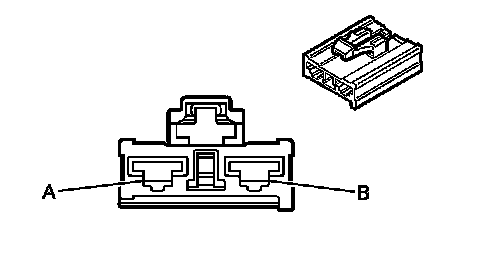

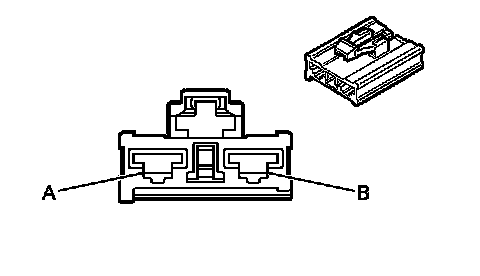

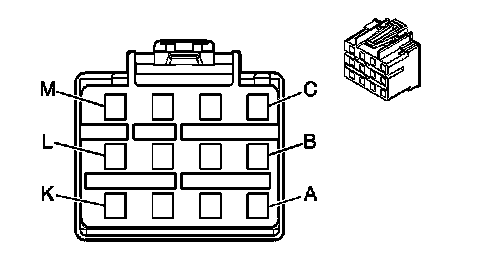

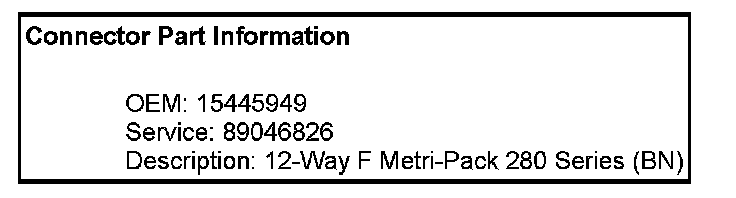

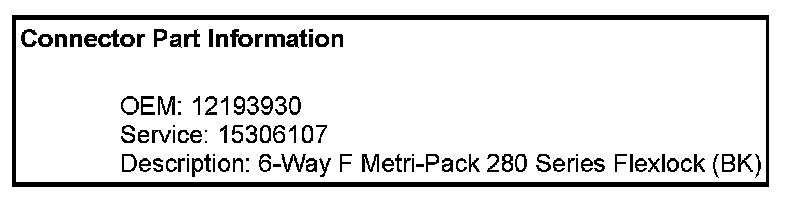

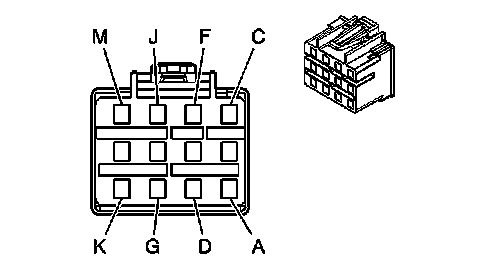

Fuse Block - Underhood C5:

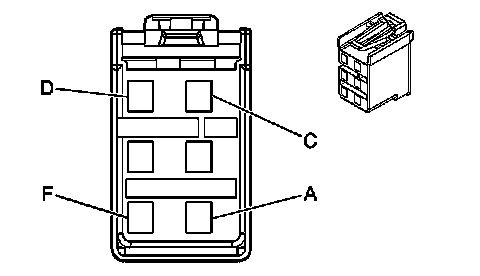

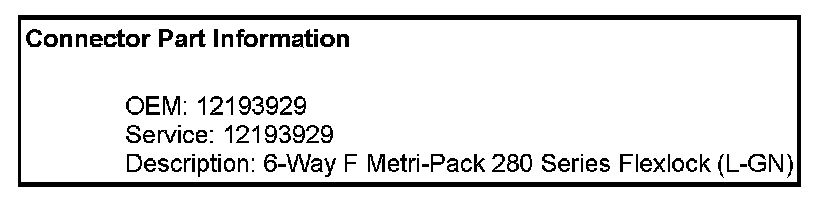

Fuse Block - Underhood C6:

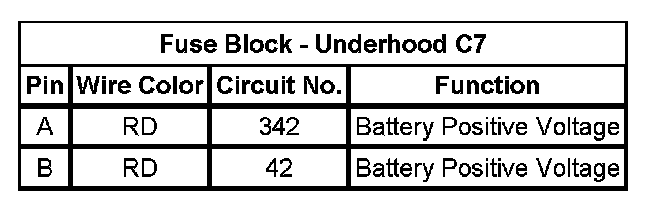

Fuse Block - Underhood C7:

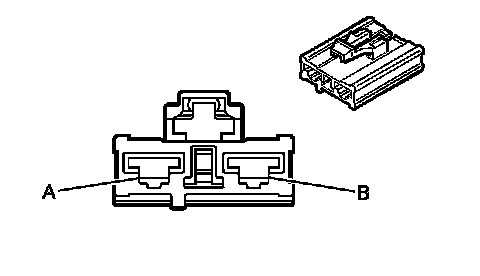

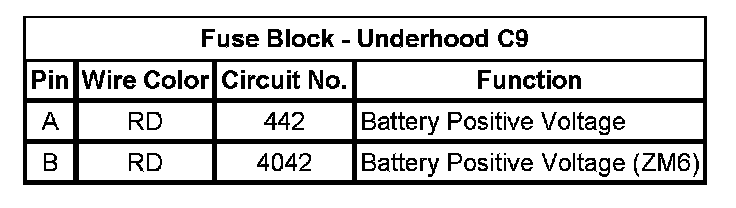

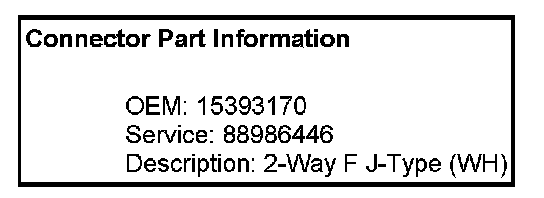

Fuse Block - Underhood C9:

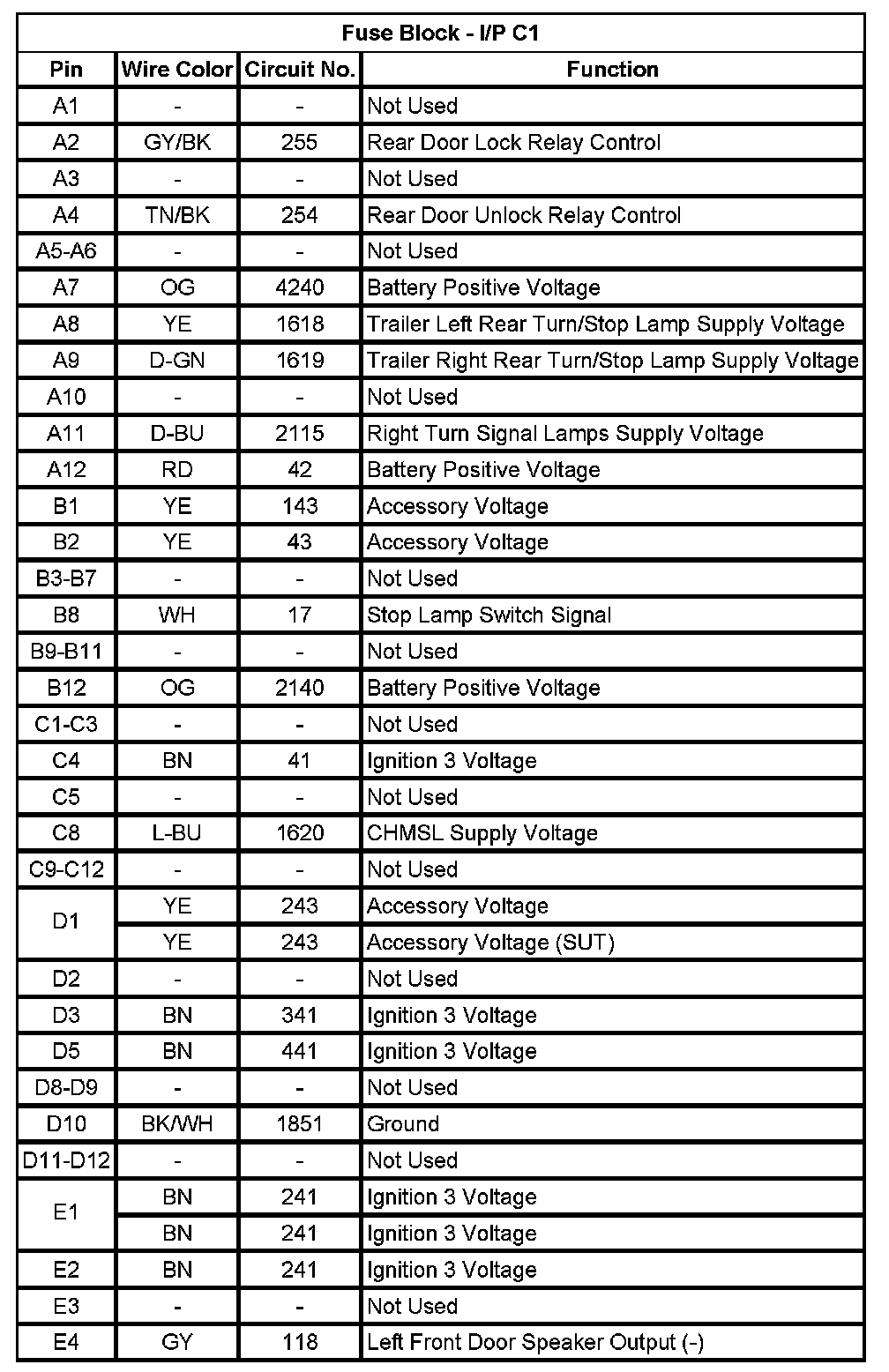

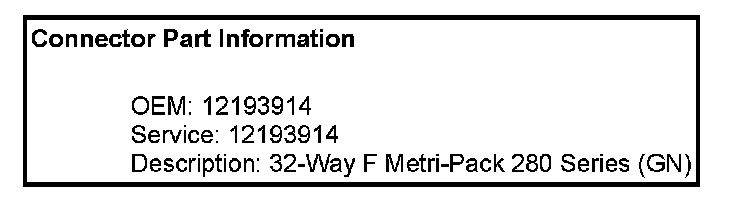

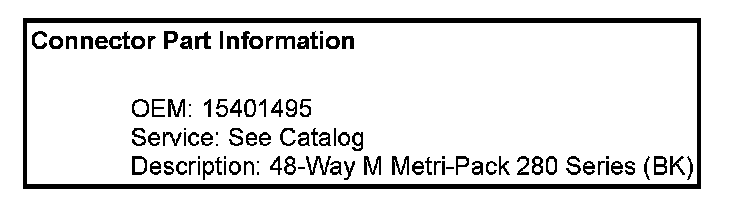

Fuse Block - I/P C1 (Pin A1 To E4):

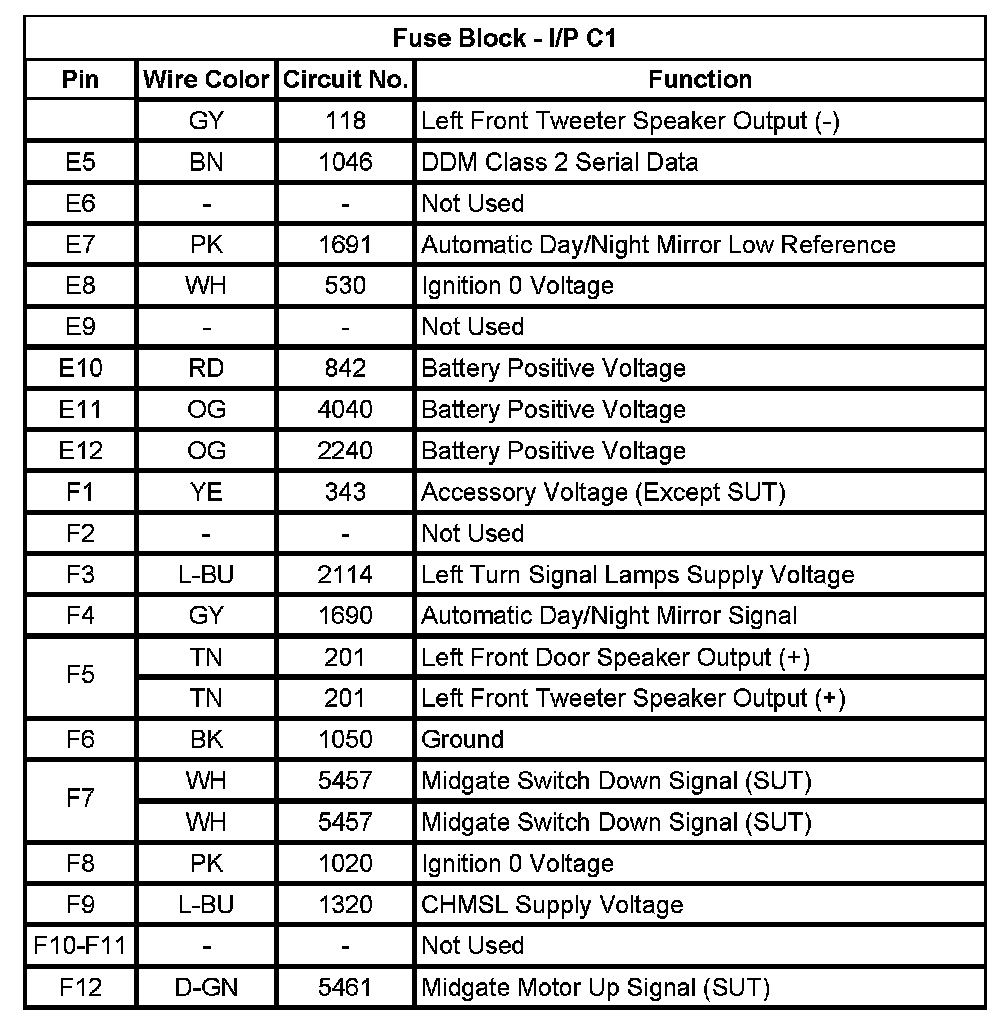

Fuse Block - I/P C1 (Pin E5 To F12):

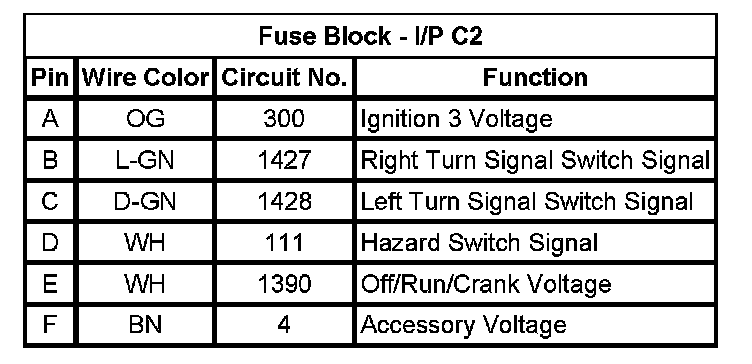

Fuse Block - I/P C2:

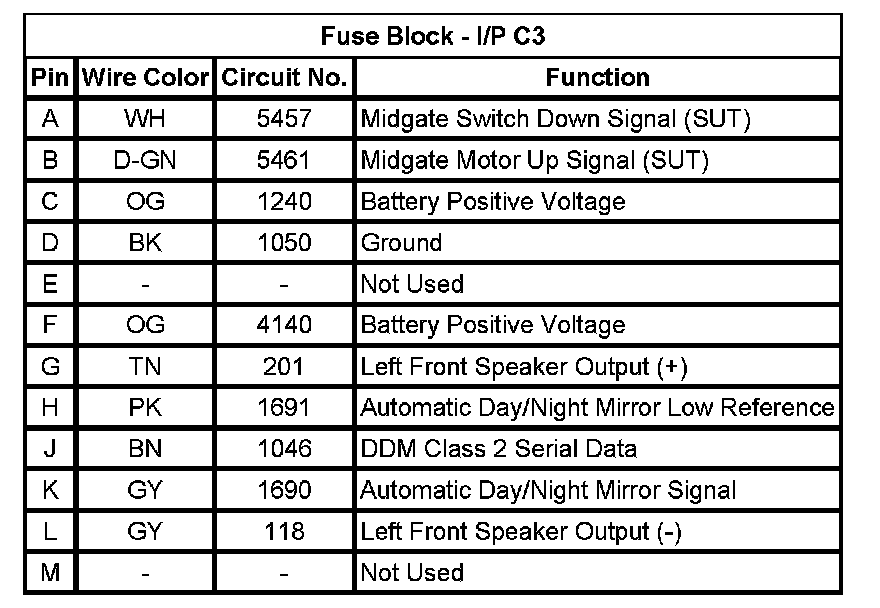

Fuse Block - I/P C3:

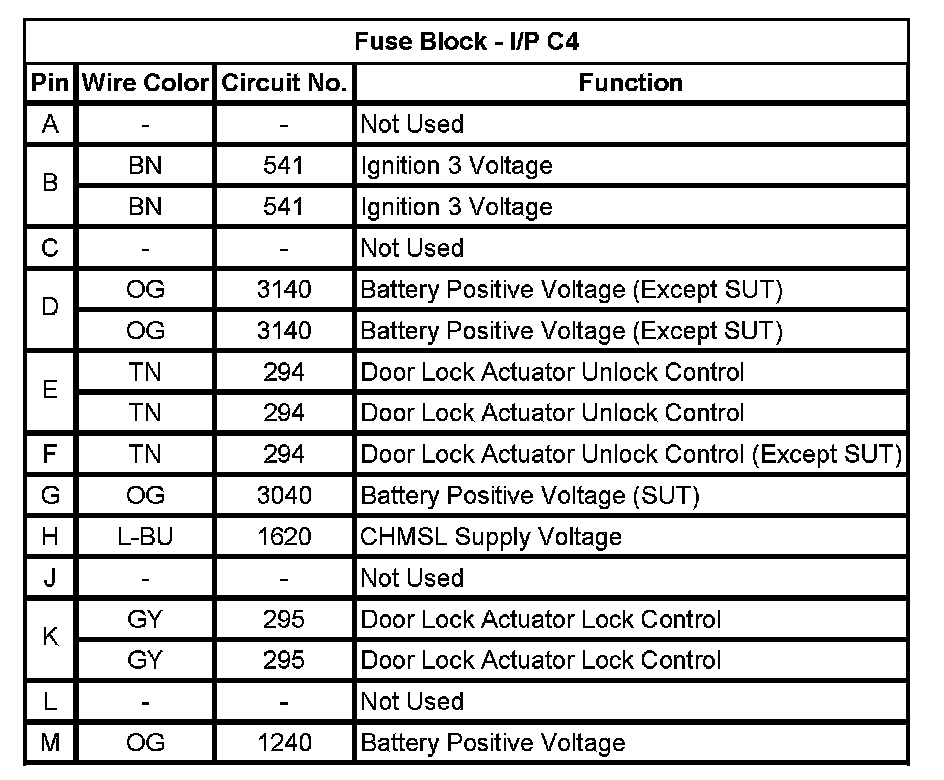

Fuse Block - I/P C4:

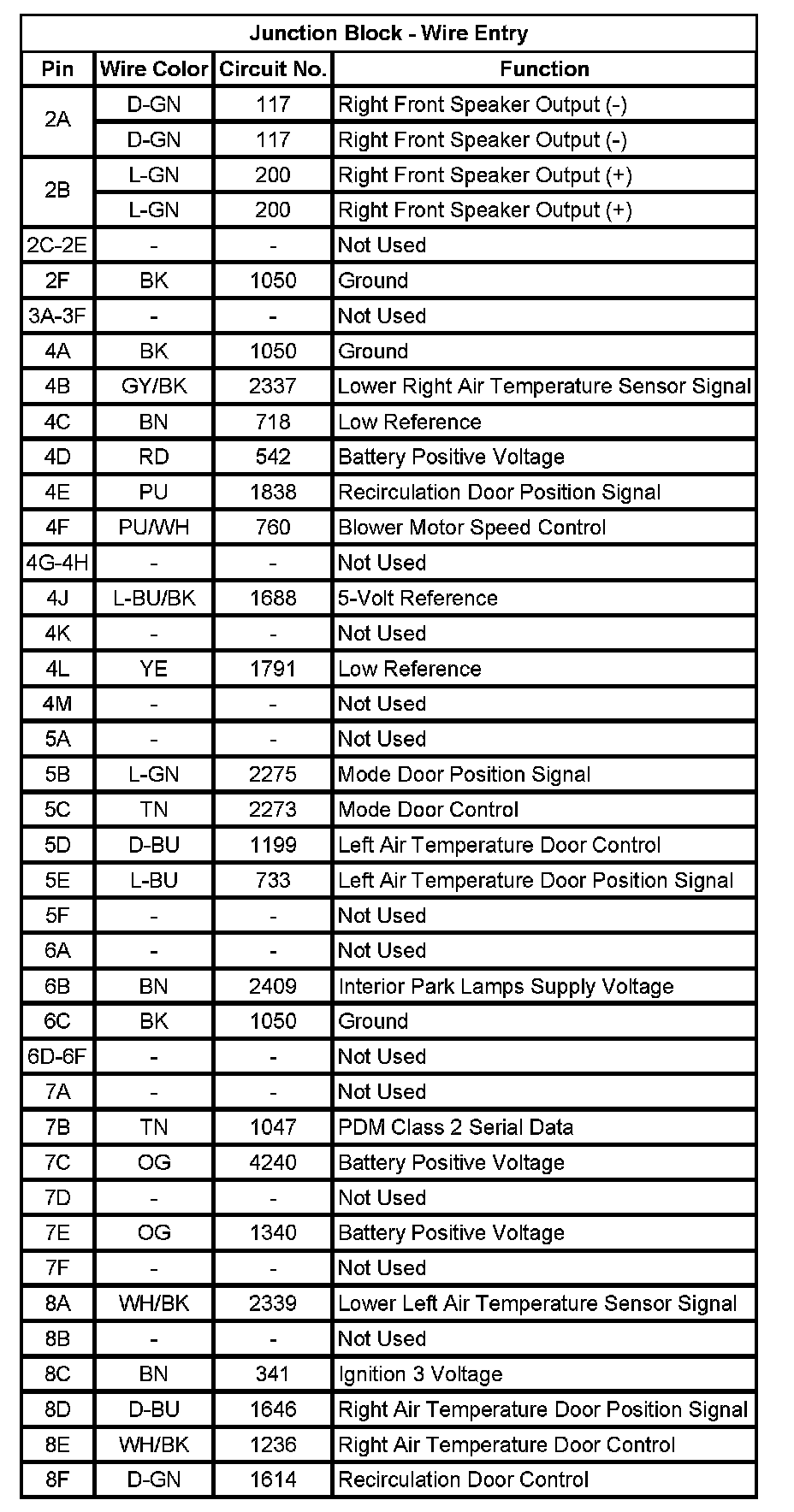

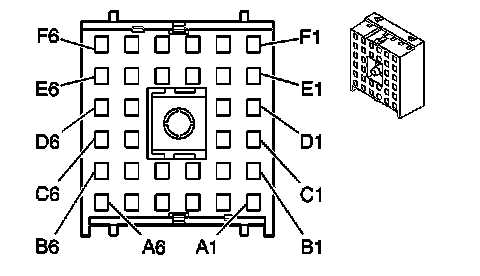

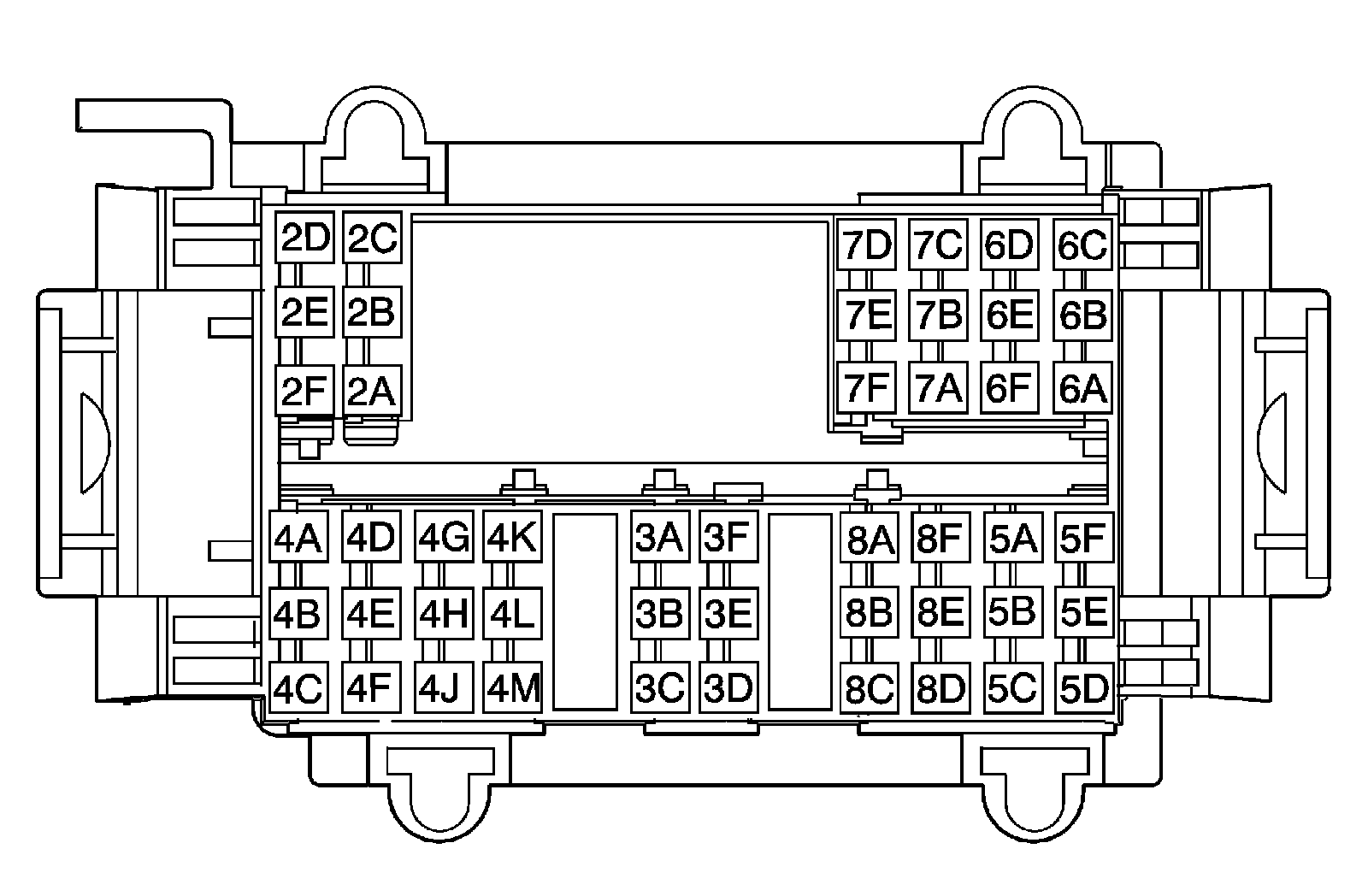

Junction Block - Wire Entry:

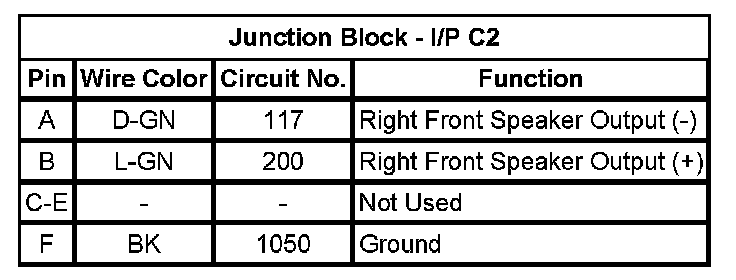

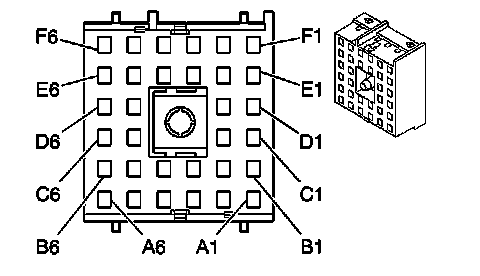

Junction Block - I/P C2:

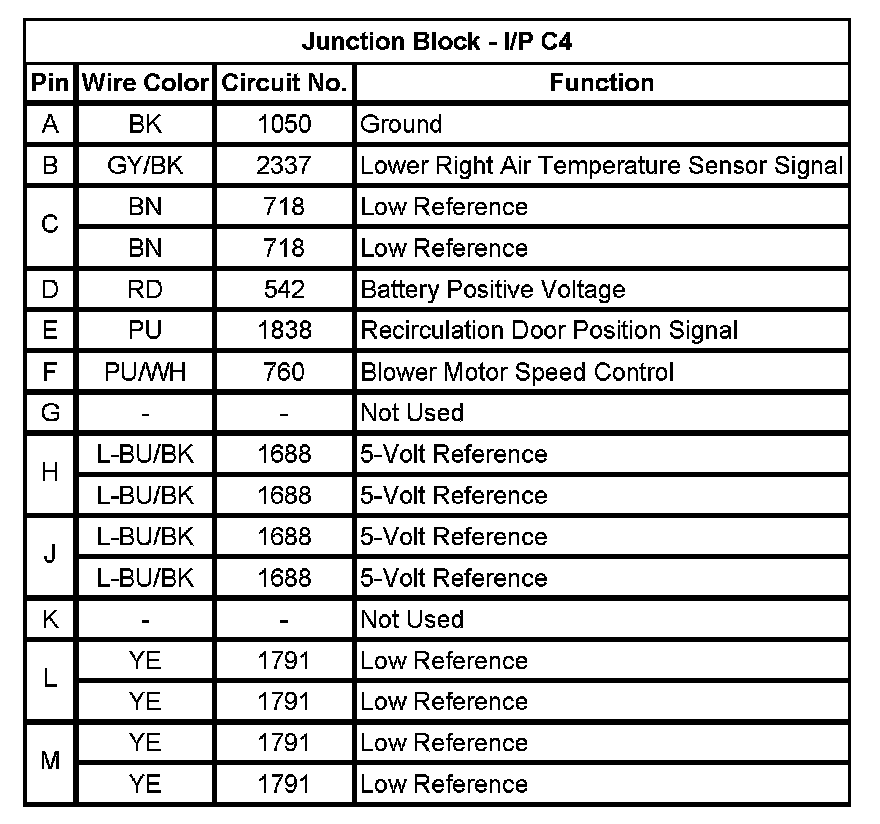

Junction Block - I/P C4:

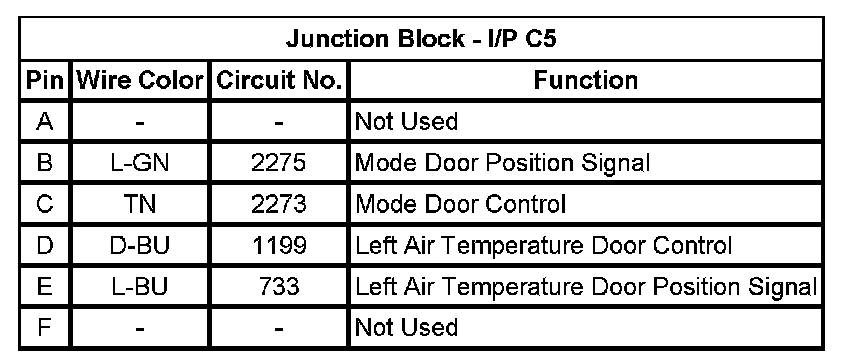

Junction Block - I/P C5:

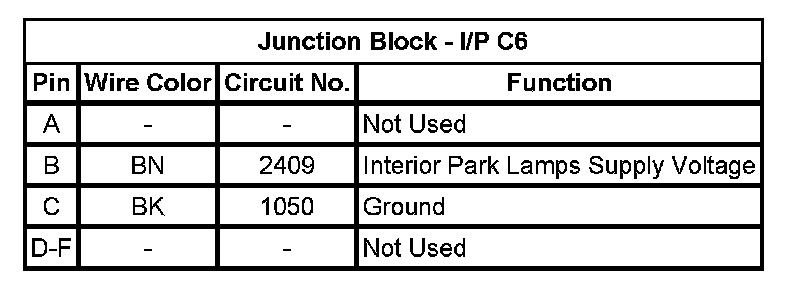

Junction Block - I/P C6:

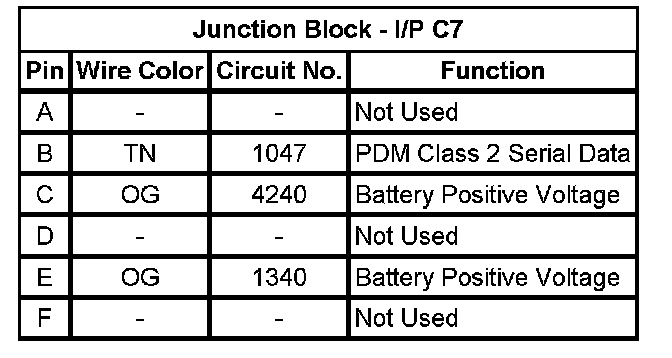

Junction Block - I/P C7:

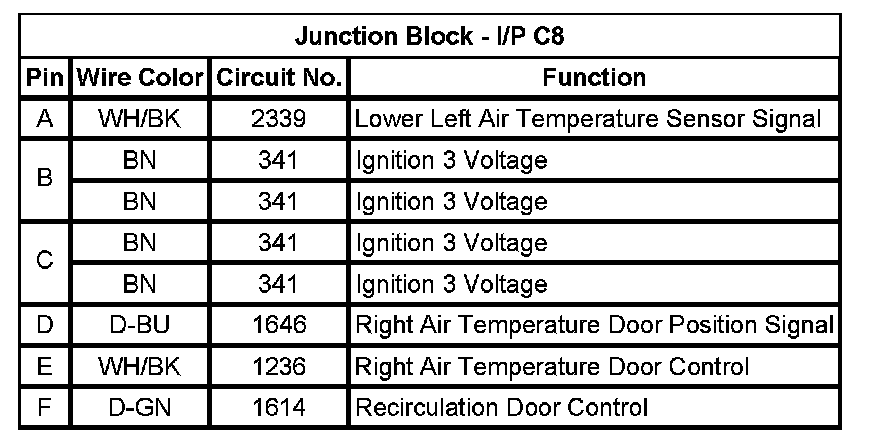

Junction Block - I/P C8:
