Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> Branching Point >> SP400 - SP499

SP400 - SP499

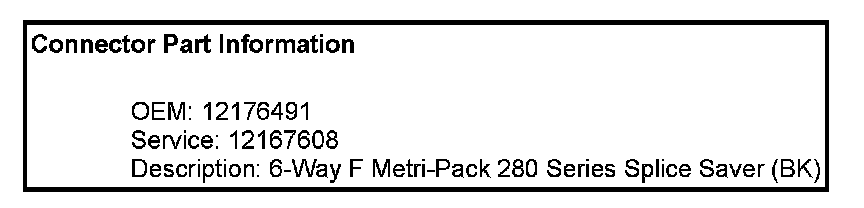

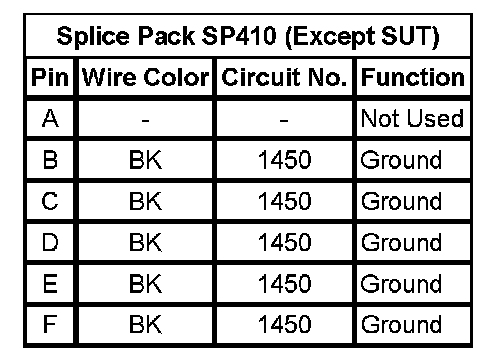

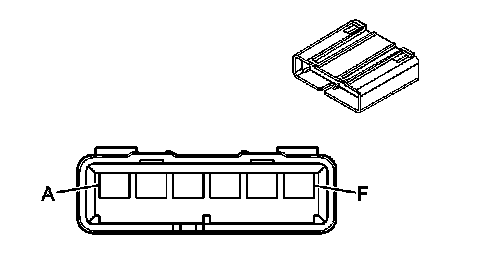

Splice Pack SP410 (Except SUT)
