Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Control Module

Power Trunk / Liftgate Control Module



Window Systems Connector End Views

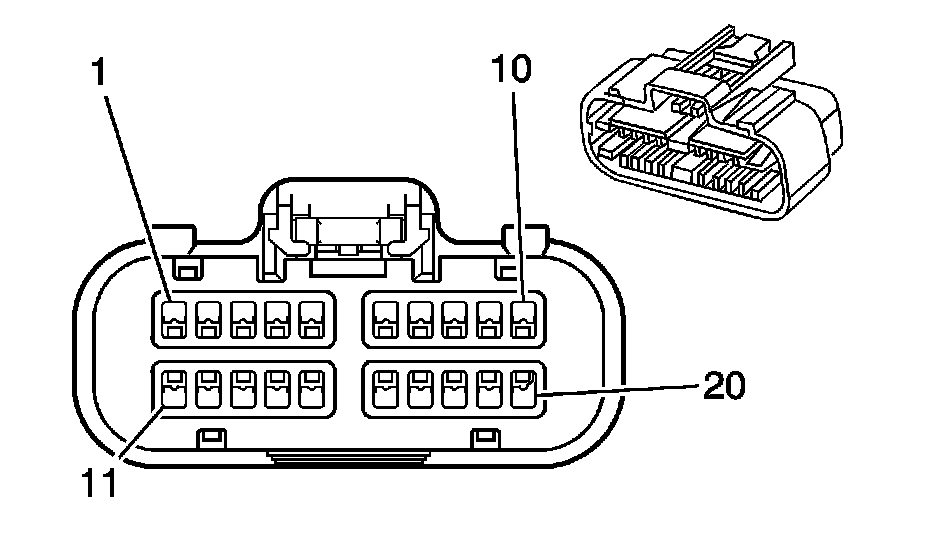

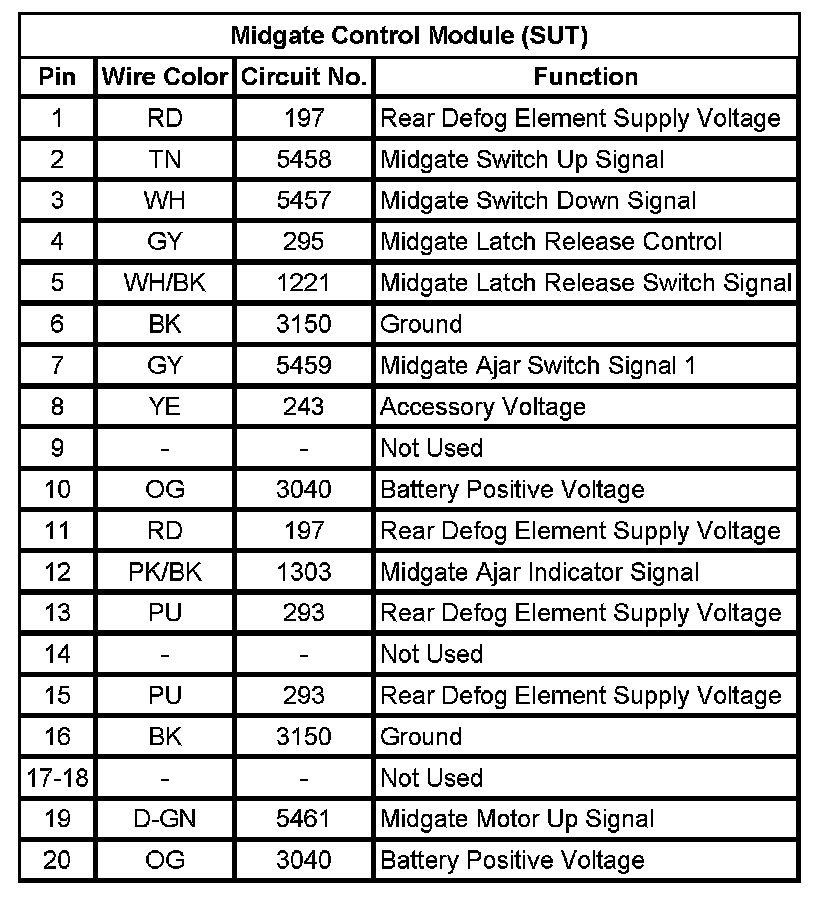

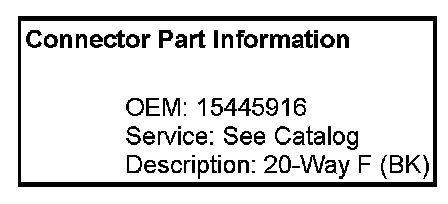

Midgate Control Module (SUT)
