System Diagram



Lighting Systems Connector End Views

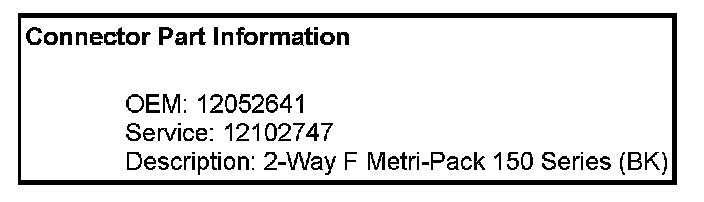

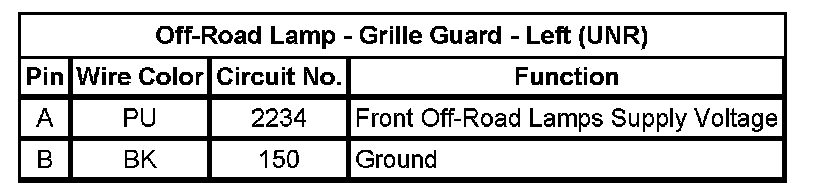

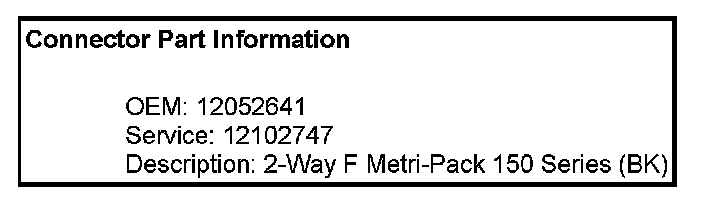

Off-Road Lamp - Grille Guard - Left (UNR)

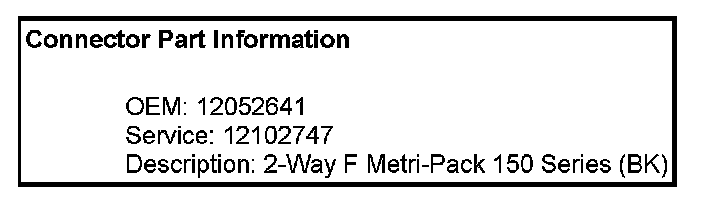

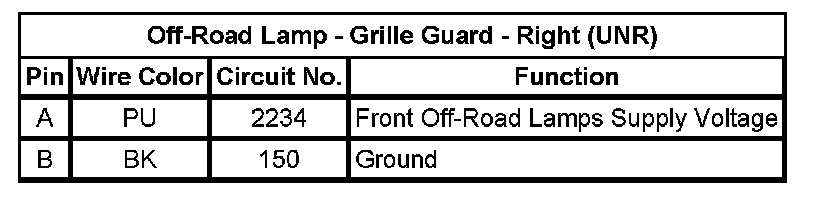

Off-Road Lamp - Grille Guard - Right (UNR)

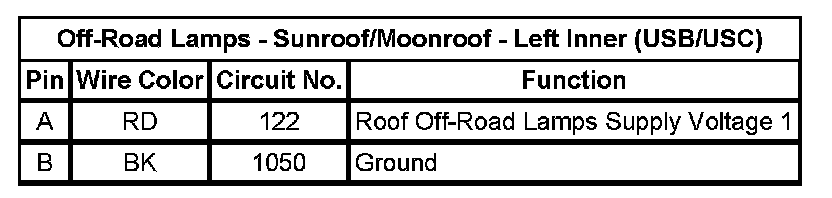

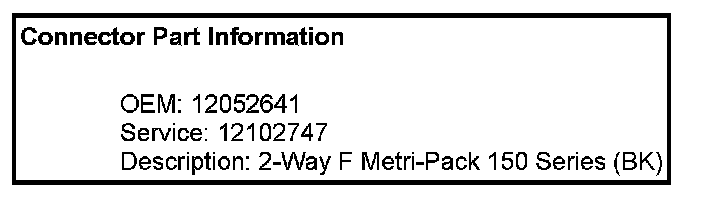

Off-Road Lamps - Roof - Left Inner (USB/USC)

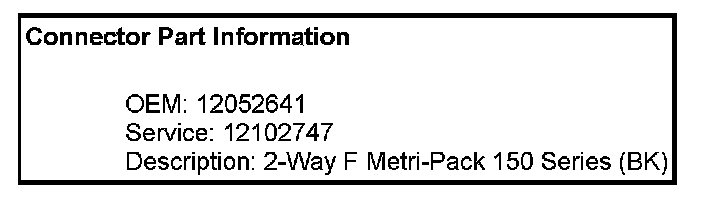

Off-Road Lamps - Roof - Left Outer (USB/USC)

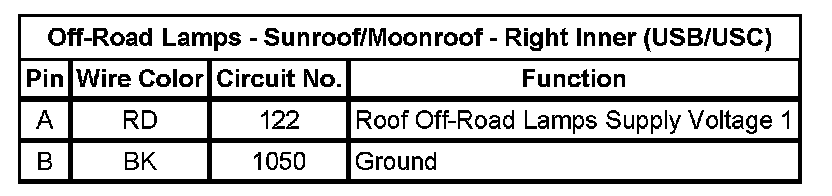

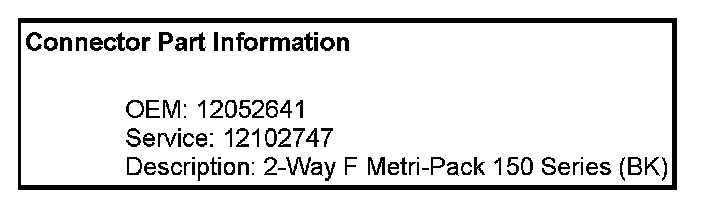

Off-Road Lamps - Roof - Right Inner (USB/USC)

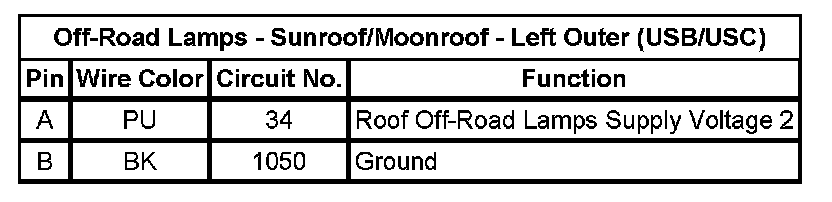

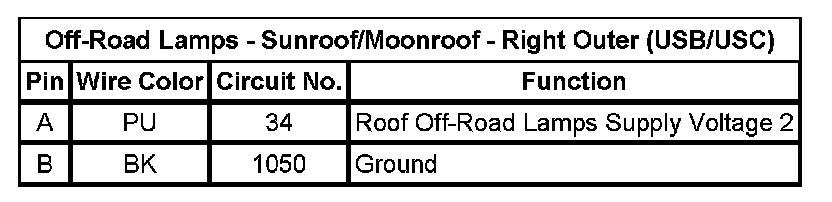

Off-Road Lamps - Roof - Right Outer (USB/USC)
