Engine Control Module
Powertrain Control Module Connector End Views

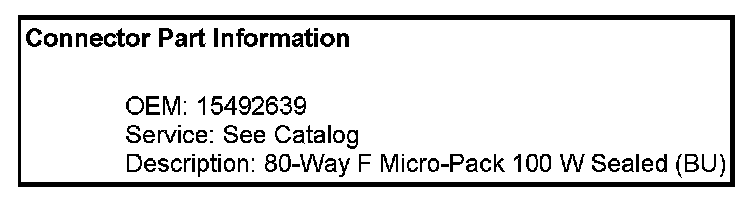

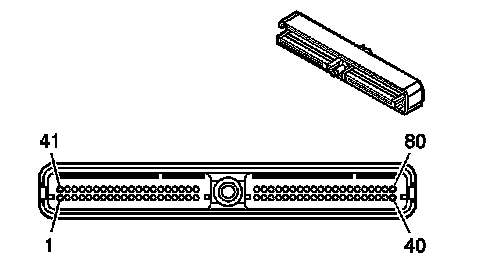

Powertrain Control Module (PCM) - C1
Powertrain Control Module (PCM) - C1 (Pin 1 To 36):

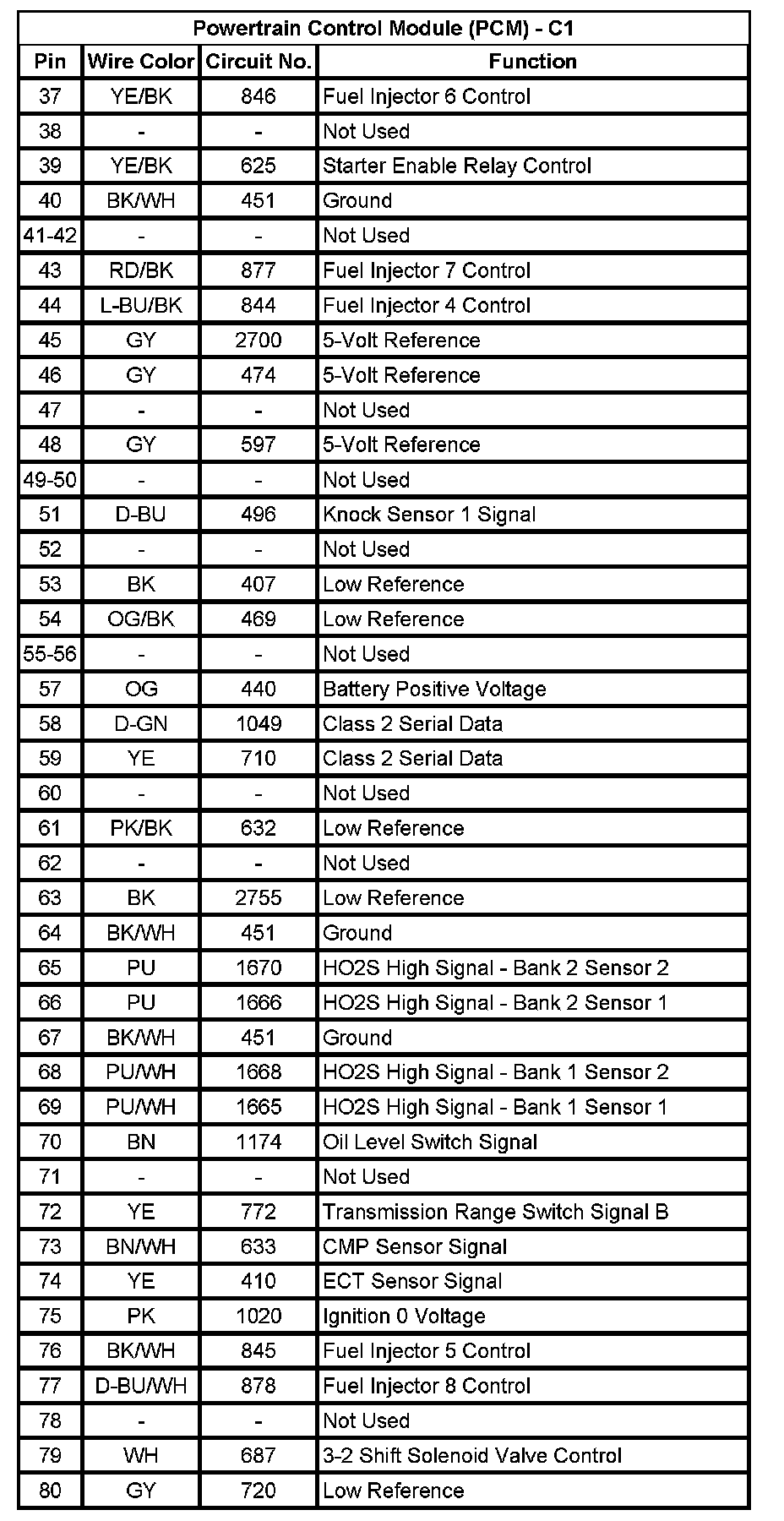

Powertrain Control Module (PCM) - C1 (Pin 37 To 80):

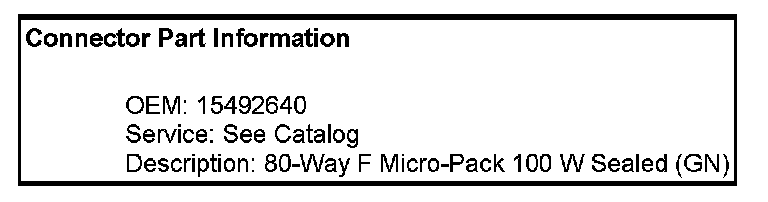

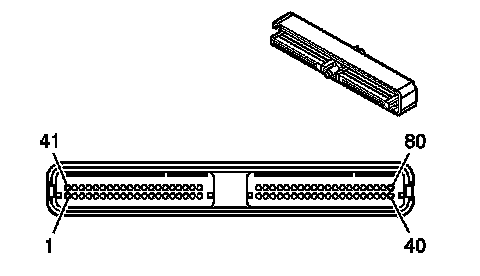

Powertrain Control Module (PCM) - C2

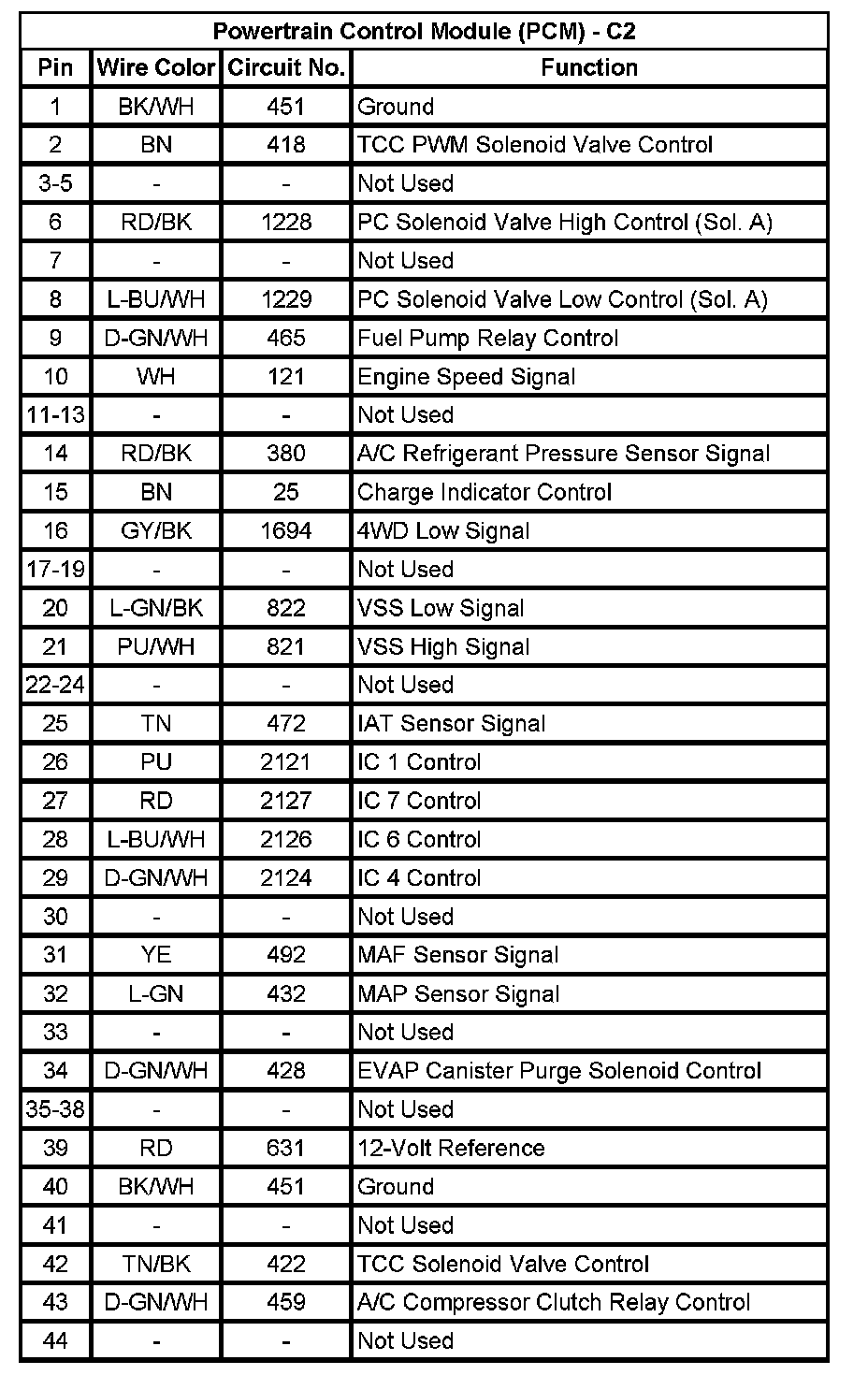

Powertrain Control Module (PCM) - C2 (Pin 1 To 44):

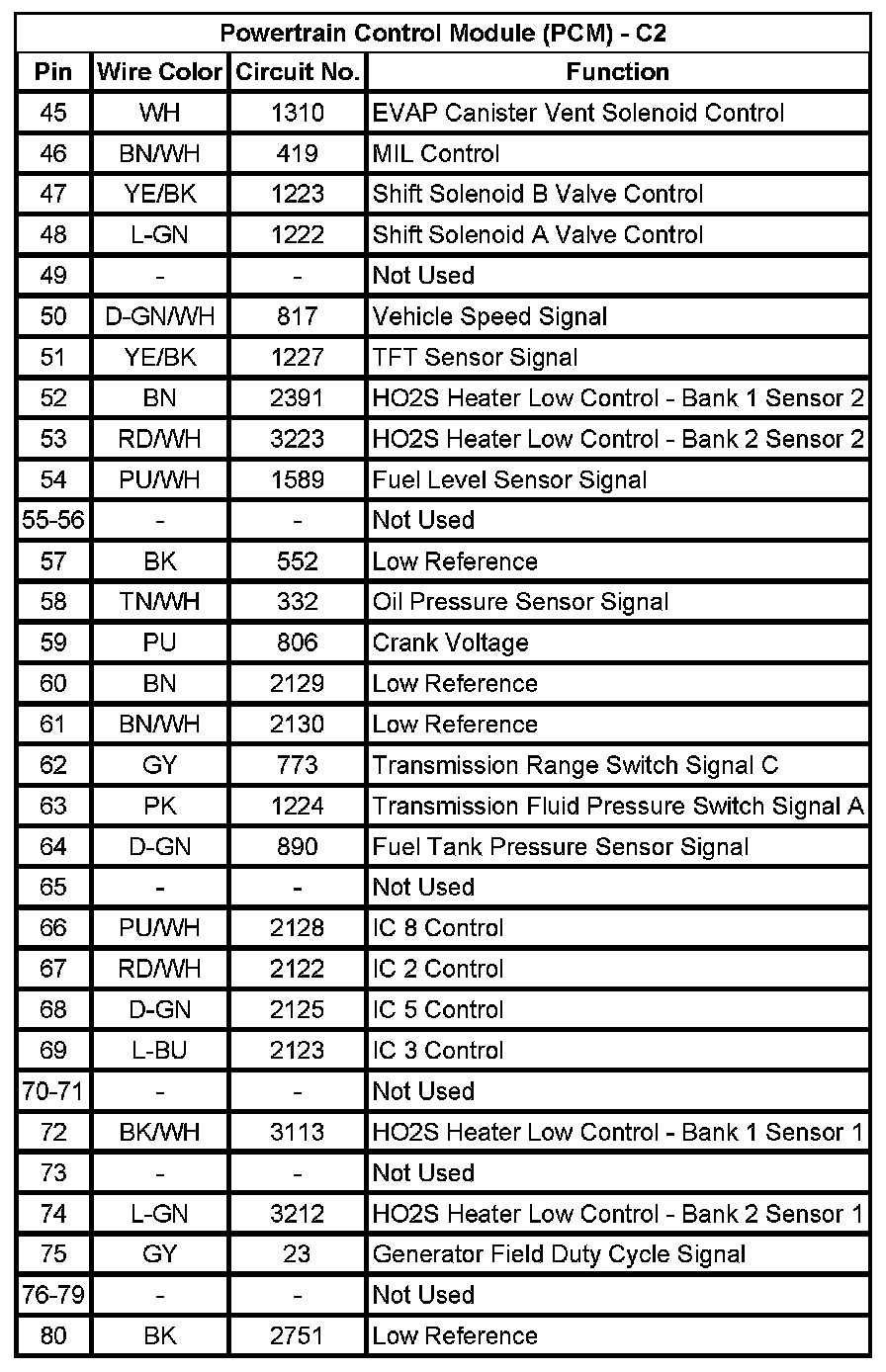

Powertrain Control Module (PCM) - C2 (Pin 45 To 80):
