Clearance Lamp



Lighting Systems Connector End Views

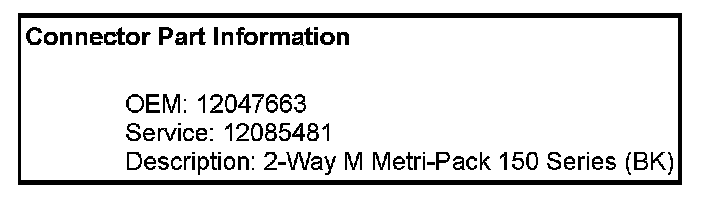

Clearance Lamp - LF

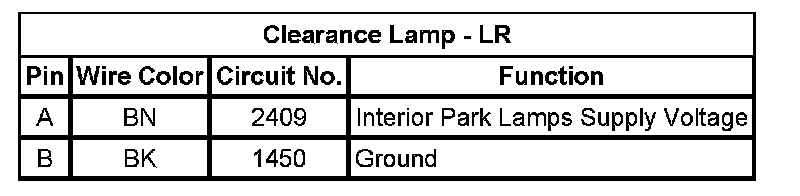

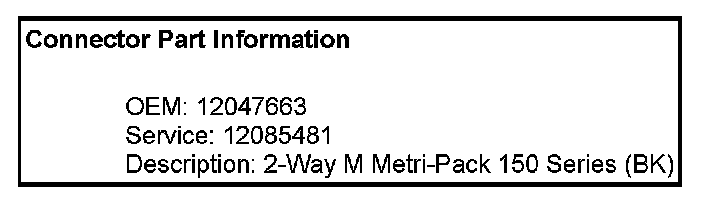

Clearance Lamp - LR

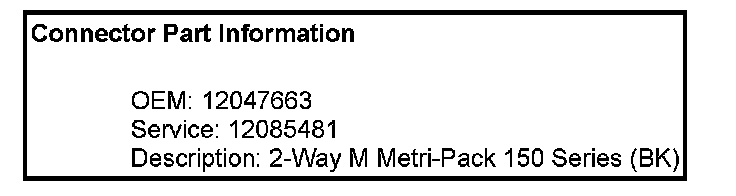

Clearance Lamp - RF

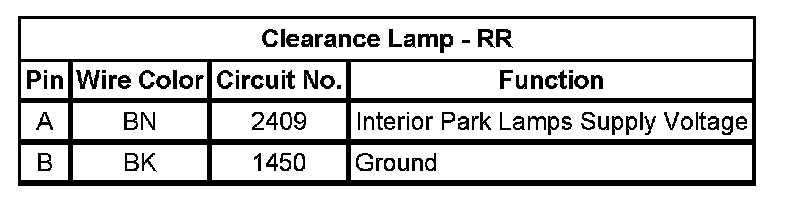

Clearance Lamp - RR
