Automatic Volume Control



Entertainment/Communication Connector End Views

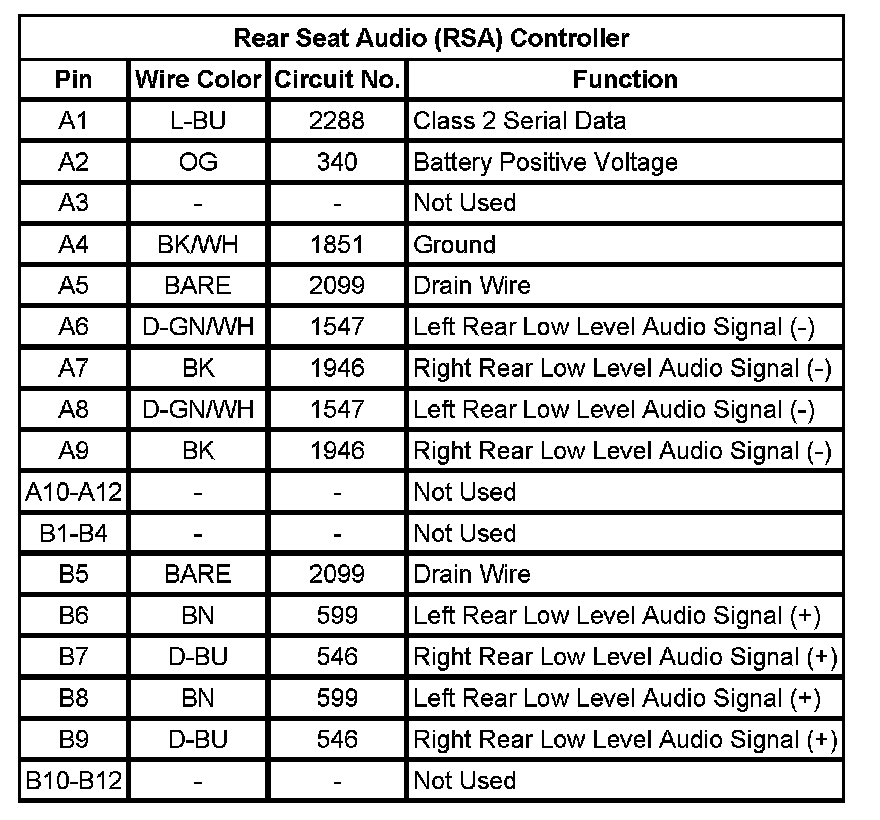

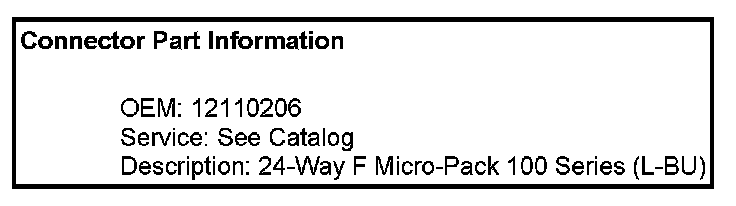

Rear Seat Audio (RSA) Controller
