Parking Brake Pedal: Service and Repair

Park Brake Pedal Assembly Replacement

Removal Procedure

Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Disable the park brake cable automatic adjuster.
3. Remove the left side hinge pillar panel.
4. Remove the MID-Bussed Electrical Center from the bracket.




5. Disconnect the park brake warning lamp connection.

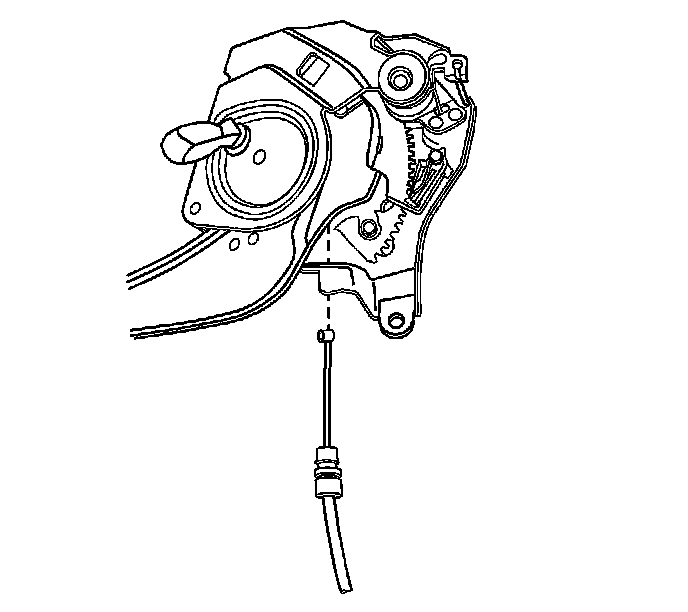

6. Disconnect the park brake release cable from the park brake lever.

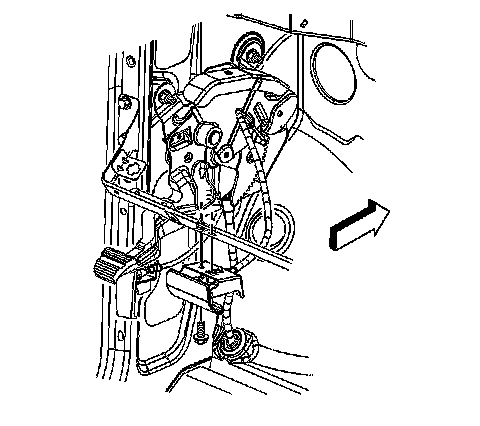

7. Remove the park brake lever mounting nuts.




8. Disconnect the front park brake cable from the park brake lever.
9. Remove the park brake lever.

Installation Procedure




1. Connect the front park brake cable to the park brake lever.




2. Install the park brake lever.

Notice: Refer to Fastener Notice.

3. Install the park brake lever mounting nuts.

Tighten the nuts to 25 N.m (18 lb ft).




4. Connect the park brake release cable to the park brake lever.




5. Connect the park brake warning lamp connector.
6. Install the MID-Bussed Electrical Center bracket.
7. Install the left side hinge pillar panel.
8. Connect the negative battery cable.
9. Enable the park brake cable automatic adjuster.
