Brake Warning Indicator Always On



Brake Warning Indicator Always On

Test Description

The number below refers to the step number on the diagnostic table.

7. If the fuse in the jumper opens when you perform this test, the signal circuit of the brake fluid level switch is shorted to voltage.

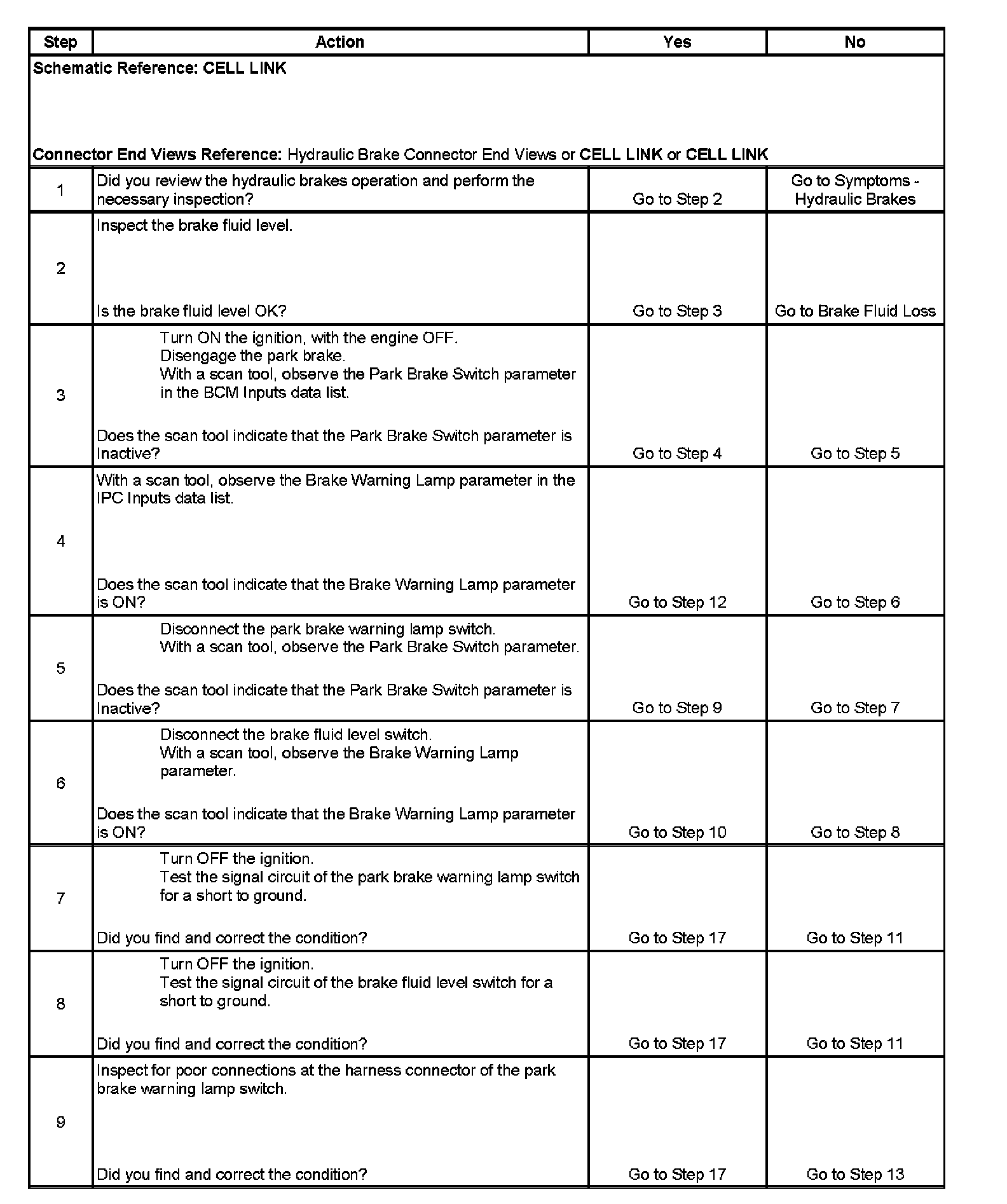

Step 1 - Step 9:

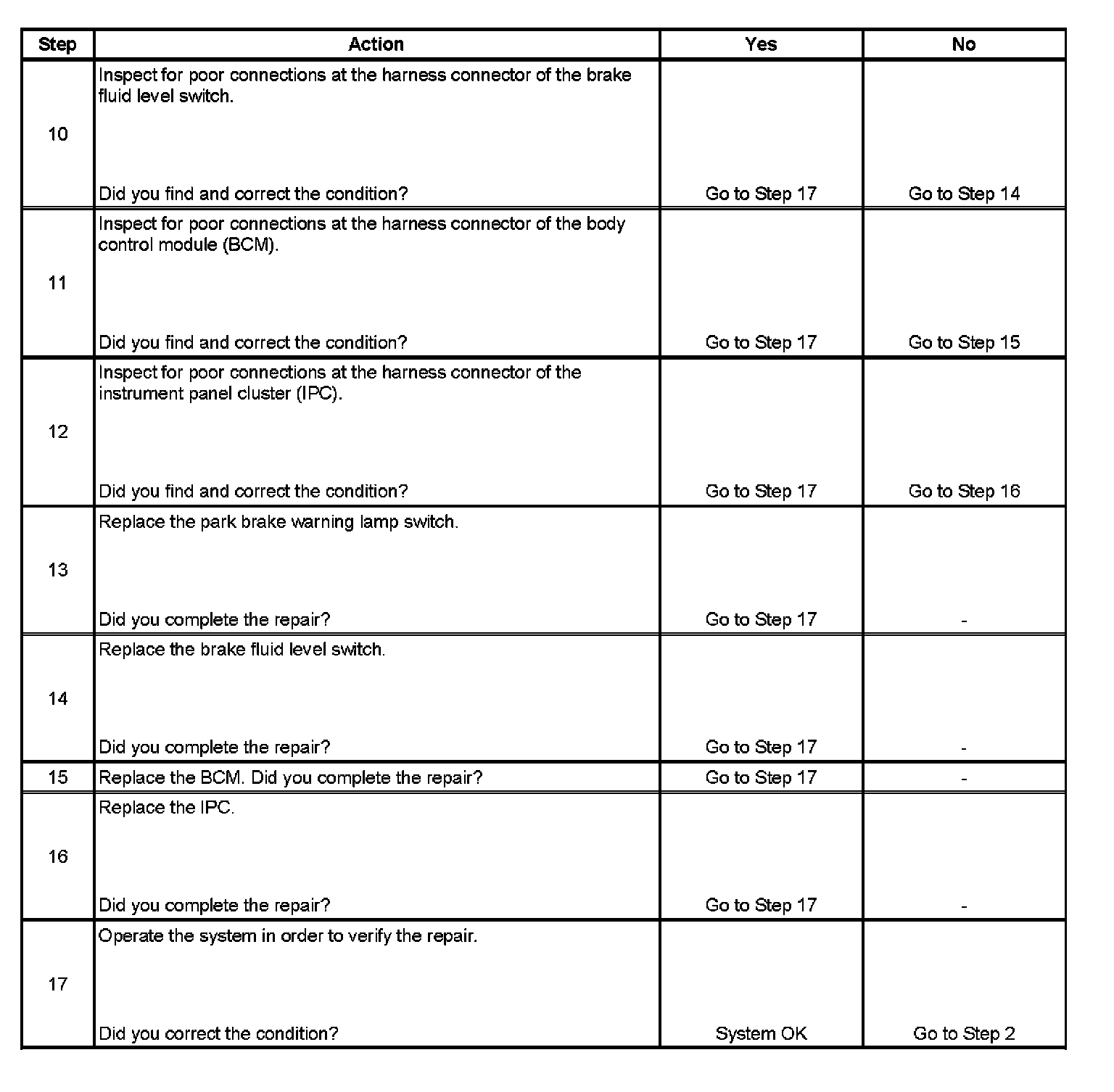

Step 10 - Step 17:
