Brake Pipe Replacement

Brake Pipe Replacement

Caution: Refer to Brake Fluid Irritant Caution.

Notice: Refer to Brake Fluid Effects on Paint and Electrical Components Notice.

Removal Procedure

Caution: Refer to Brake Pipe Replacement Caution.

Important: Brake pipes that run parallel to each other must maintain a 6 mm (1/4 in) clearance.

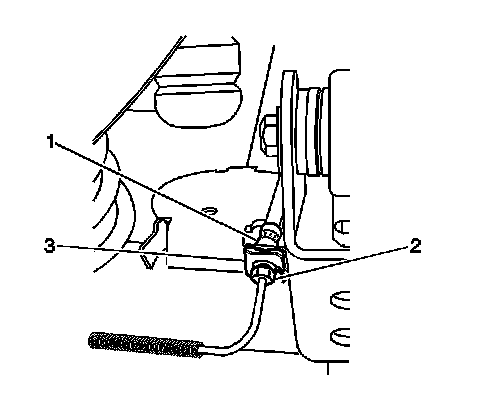

1. Disconnect the brake pipe fittings (2).
2. Remove the brake pipe fasteners from the vehicle.
3. Remove the brake pipe from the vehicle.

Installation Procedure




1. Bend the brake pipe to achieve proper fit.
2. Install the brake pipe to the vehicle. Maintain a clearance of 19 mm (3/4 in) for all moving or vibrating components.
3. Install the brake pipe fasteners to the vehicle.

Notice: Refer to Fastener Notice.

4. Connect the brake pipe fittings (2).

Tighten the brake pipe fitting to 25 N.m (18 lb ft)

5. Bleed the brake hydraulic system. Refer to one of the following procedures:
^ If the brake pipe that was replaced was between the master cylinder and the BPMV, refer to Antilock Brake System Automated Bleed Procedure.
^ If the brake pipe that was replaced was between the BPMV and the wheel jounce hoses, refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure).
