Brake Pedal Assy: Service and Repair

Brake Pedal Assembly Replacement

Removal Procedure




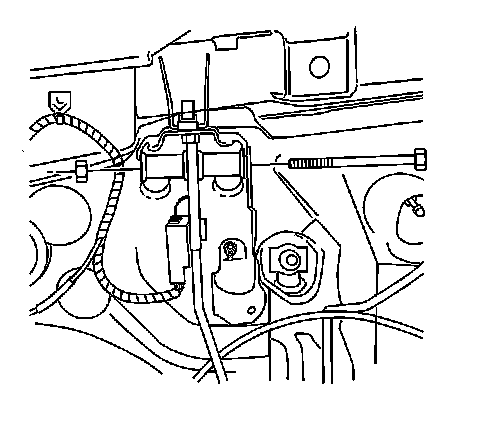

1. Remove the pushrod retaining clip (4).
2. Remove the stoplamp switch (2) and the pushrod (3) from the brake pedal stud (1).




3. Remove the nut from the brake pedal bolt.
4. Remove the brake pedal bolt.
5. Remove the brake pedal.

Installation Procedure




1. Install the brake pedal.
2. Install the brake pedal bolt.

Notice: Refer to Fastener Notice.

3. Install the nut to the brake pedal bolt.

Hold the nut with a wrench and tighten the brake pedal bolt to 47 N.m (35 lb ft).




4. Install the pushrod (3) and the stoplamp switch (2) to the brake pedal pin (1).
5. Install the pushrod retaining clip (4).
