Front Side Door Auxiliary Weatherstrip Replacement

Front Side Door Auxiliary Weatherstrip Replacement

Removal Procedure

1. Open the door.

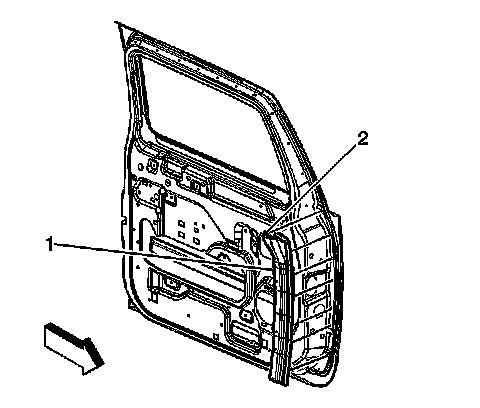

2. Using a flat-bladed tool, release the 7 retainers (2) securing the weatherstrip (1) to the door.
3. Remove the weatherstrip from the door.

Installation Procedure




1. Attach the weatherstrip (1) to the door by installing the 7 retainers (2) that secure it to the door.
2. Close the door.
