Front Door Opening Weatherstrip Replacement

Front Door Opening Weatherstrip Replacement

Removal Procedure

1. Open the door.

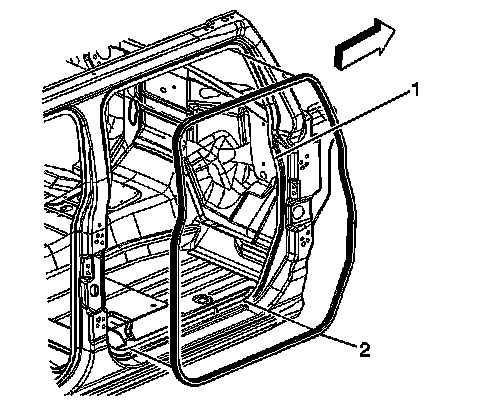

2. Remove the weatherstrip (2) by pulling the weatherstrip off of the door opening pinch-weld flange (1).

Installation Procedure




1. Starting at the top center of the door opening, install the weatherstrip (2) to the pinch-weld flange (1) and work down the right and left sides towards the bottom center, being careful not to stretch the weatherstrip during installation.
2. Use a rubber mallet to ensure proper seating of the weatherstrip on the pinch-weld flange.
3. Close the door.
