Rear Tow Eye/D-Ring Replacement (SUV)

Rear Tow Eye/D-Ring Replacement (SUV)

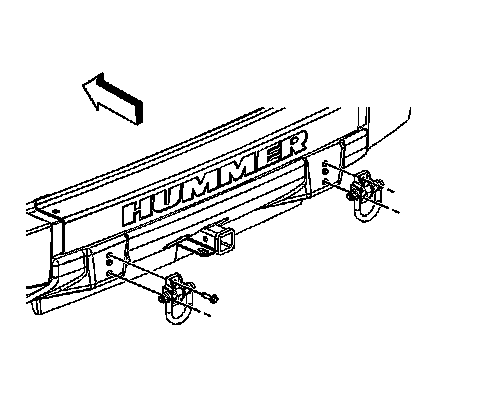

Removal Procedure




1. Remove the D-Ring mounting bolts.
2. Remove the D-Ring.

Installation Procedure




1. Install the D-Rings to the vehicle.

Notice: Refer to Fastener Notice.

2. Install the D-Ring mounting bolts.

Tighten the bolts to 85 N.m (63 lb ft).
