Heated/Cooled Seat Connector End Views



Heated/Cooled Seat Connector End Views

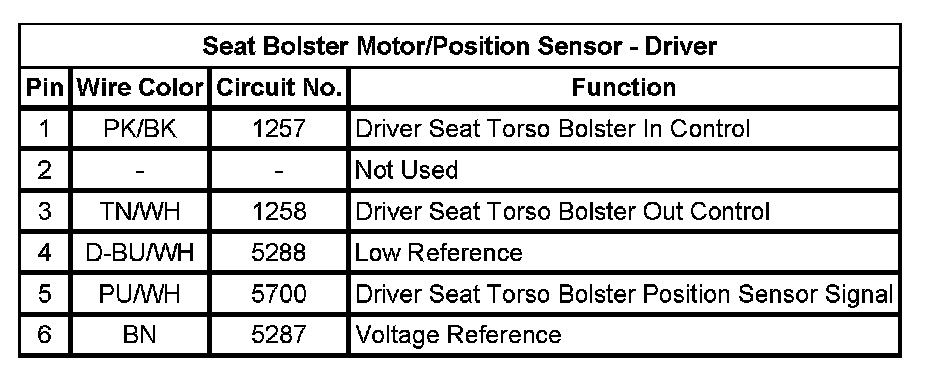

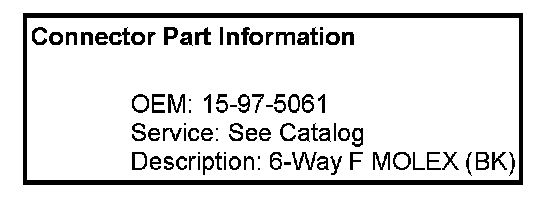

Seat Bolster Motor/Position Sensor - Driver

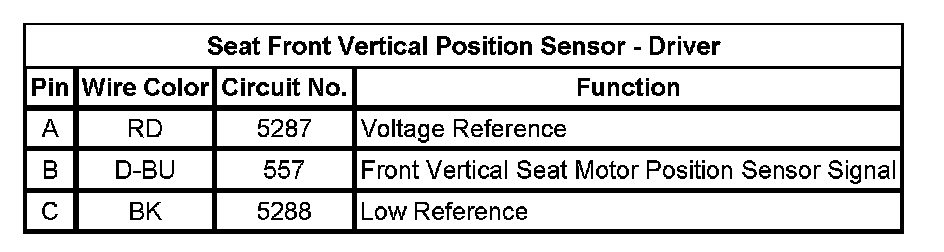

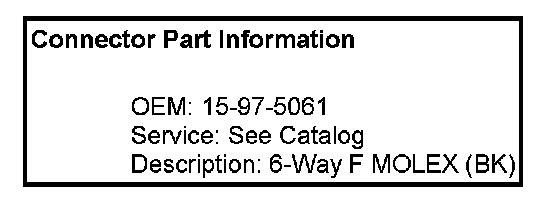

Seat Front Vertical Position Sensor - Driver

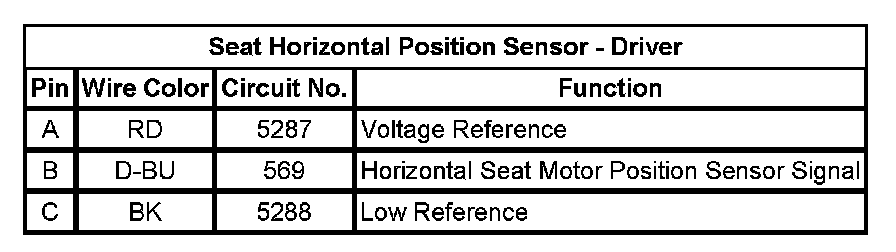

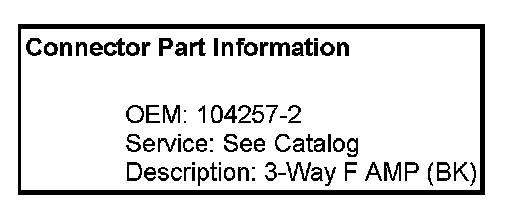

Seat Horizontal Position Sensor - Driver

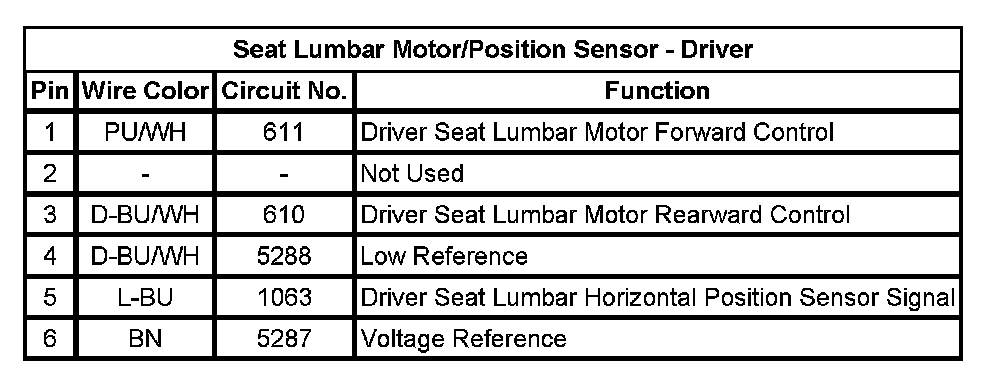

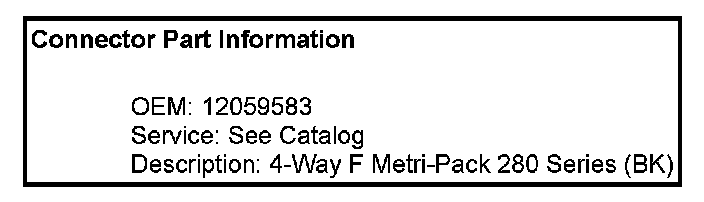

Seat Lumbar Motor/Position Sensor - Driver

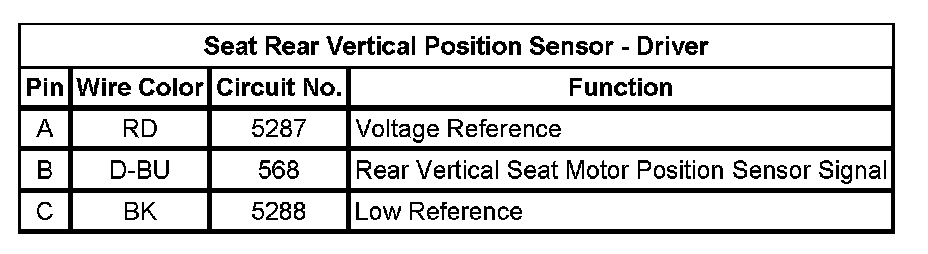

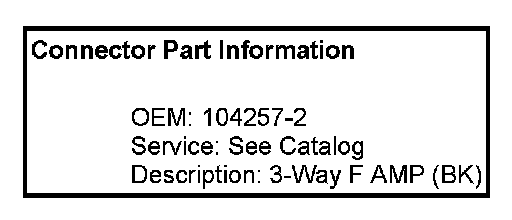

Seat Rear Vertical Position Sensor - Driver

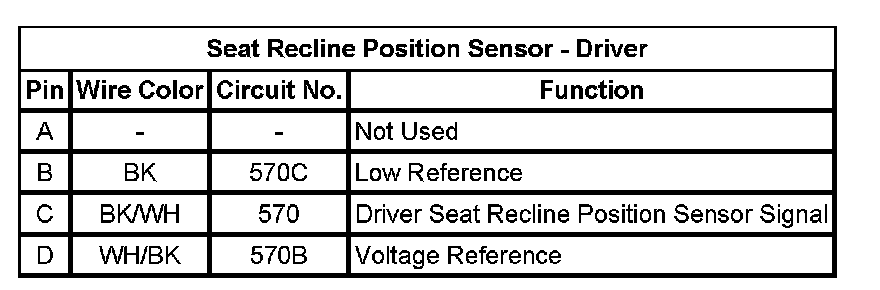

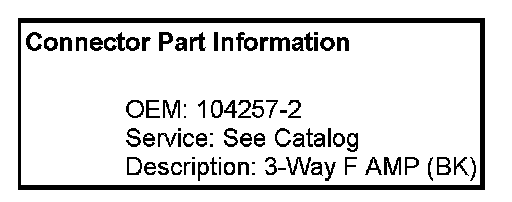

Seat Recline Position Sensor - Driver
