Power Seat Does Not Recline (Driver)
Power Seat Does Not Recline (Driver)
Power Seat Does Not Recline (Driver)
Test

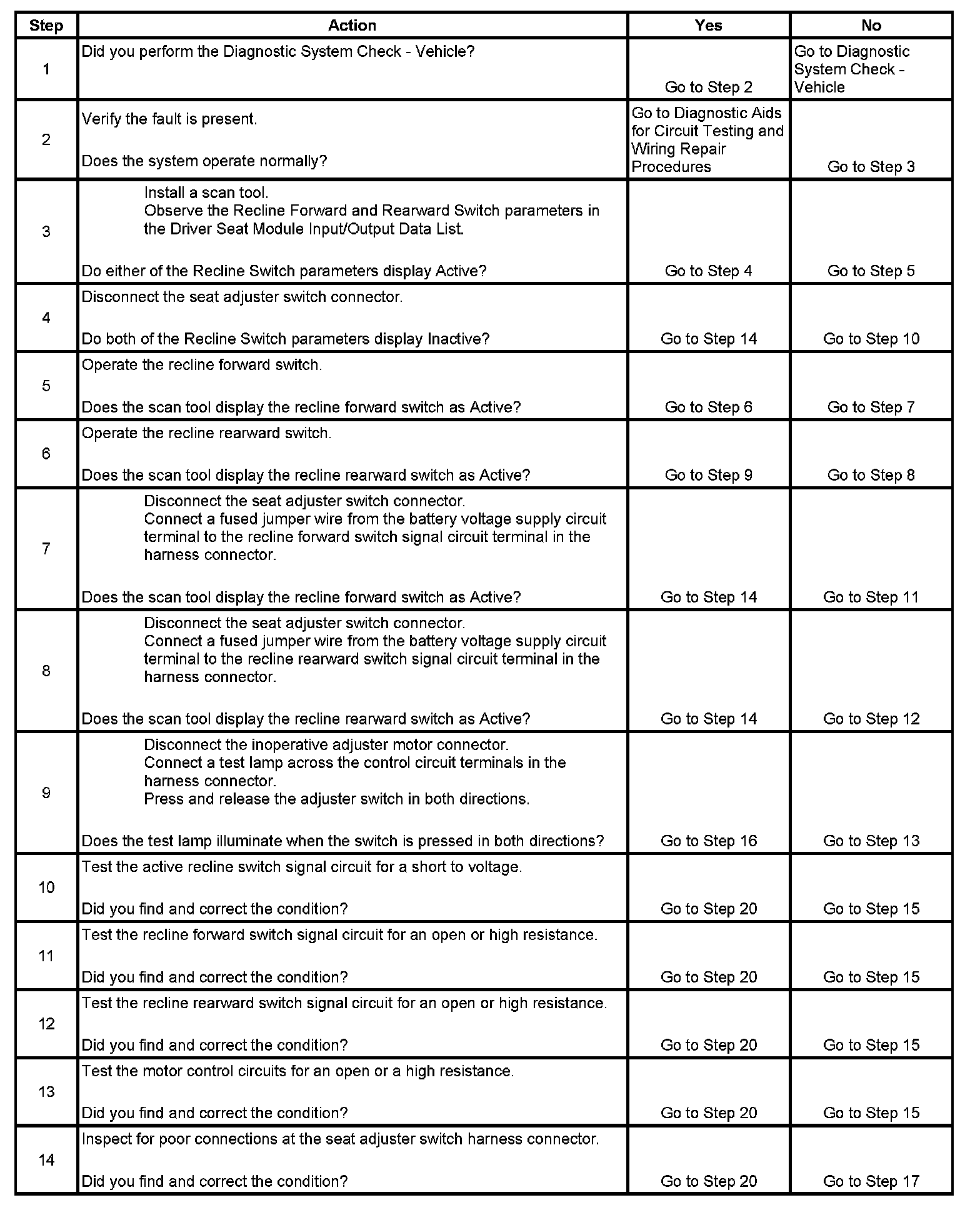

Step 1 - Step 14:

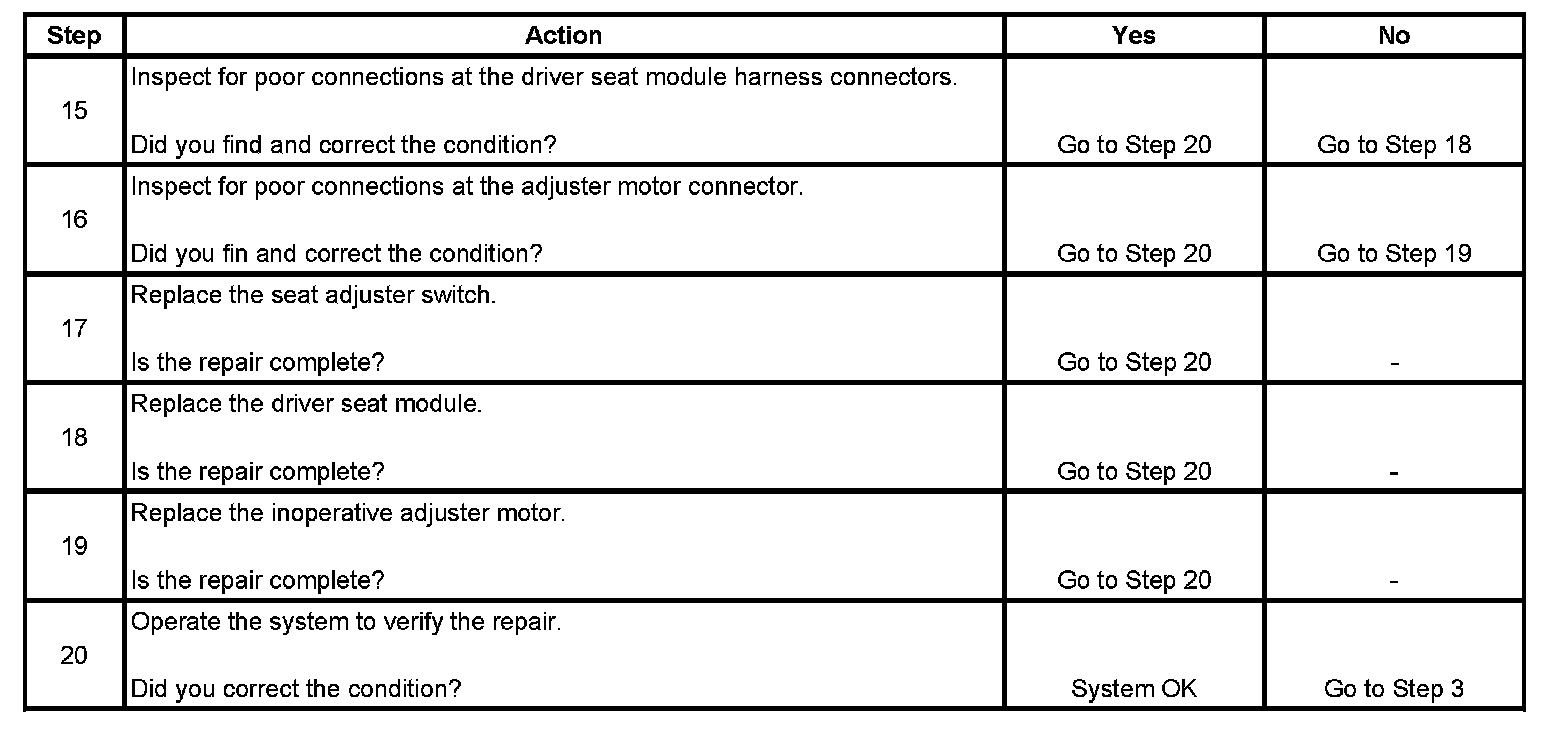

Step 15 - Step 20:
