Power Seat Does Not Move Forward/Rearward (Driver)
Power Seat Does Not Move Forward/Rearward (Driver)
Power Seat Does Not Move Forward/Rearward (Driver)
Test

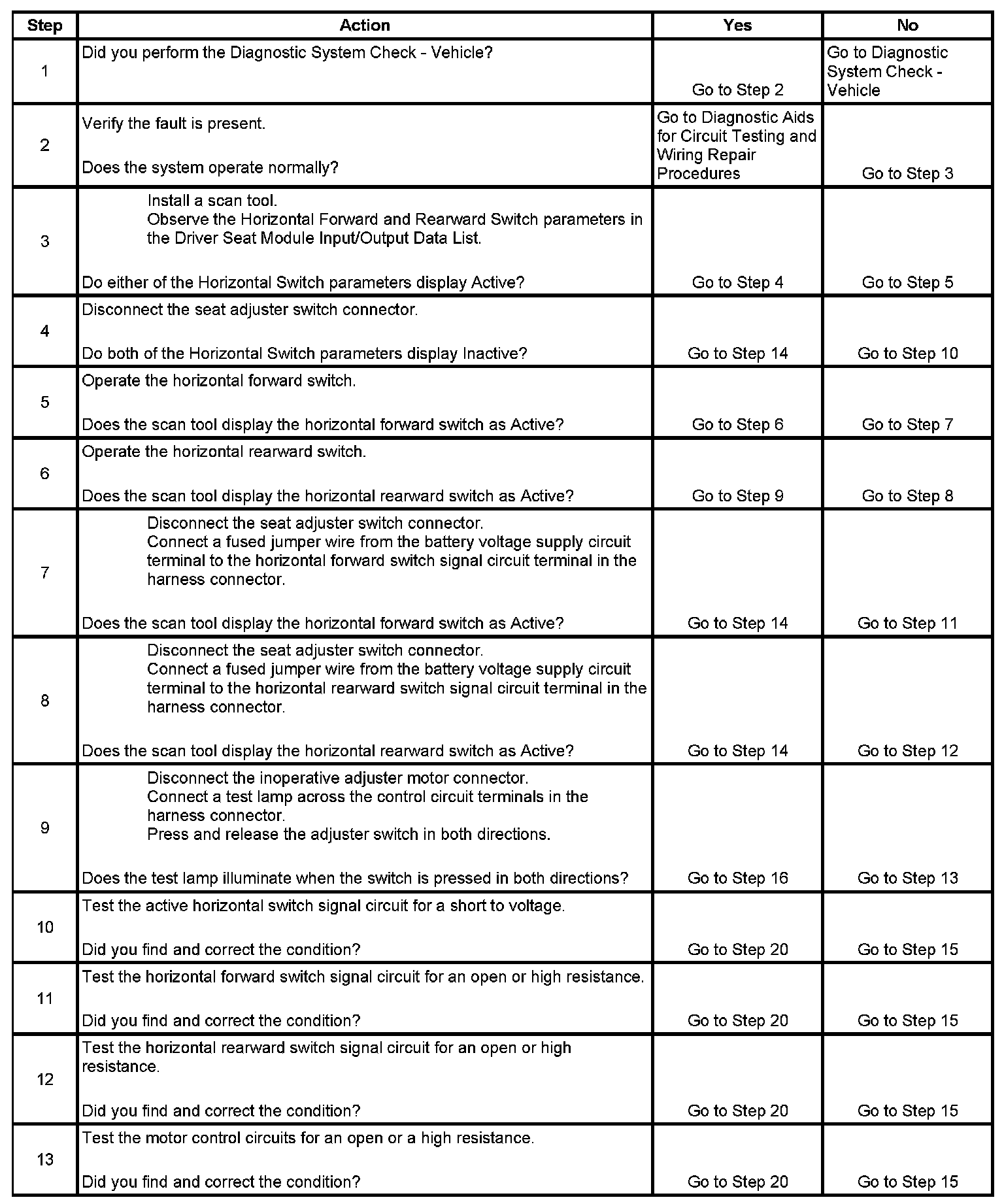

Step 1 - Step 13:

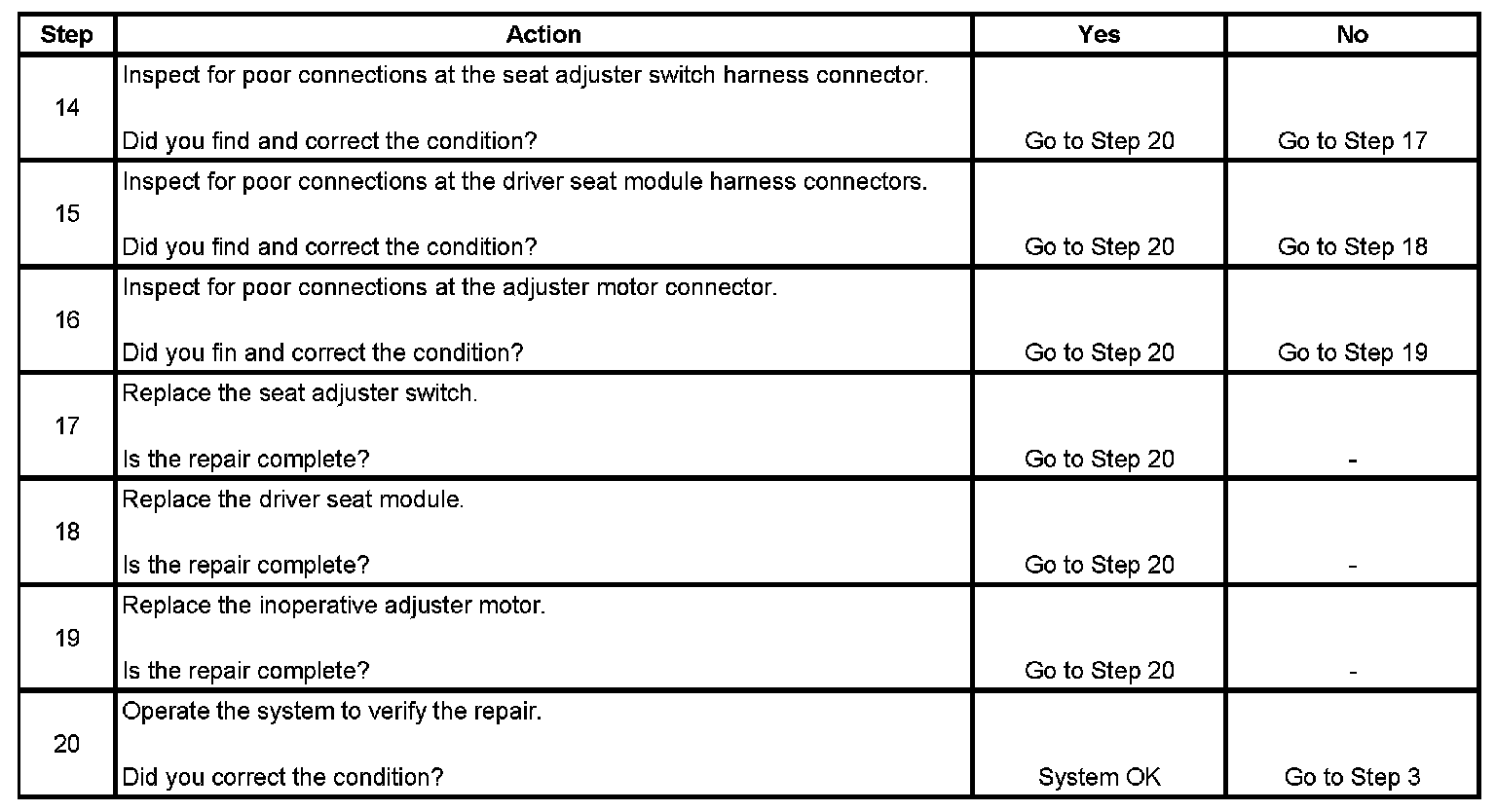

Step 14 - Step 20:
