FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Hummer
>>
2007
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Lumbar Support Inoperative (Passenger)
Lumbar Support Inoperative (Passenger)
Lumbar Support Inoperative (Passenger)

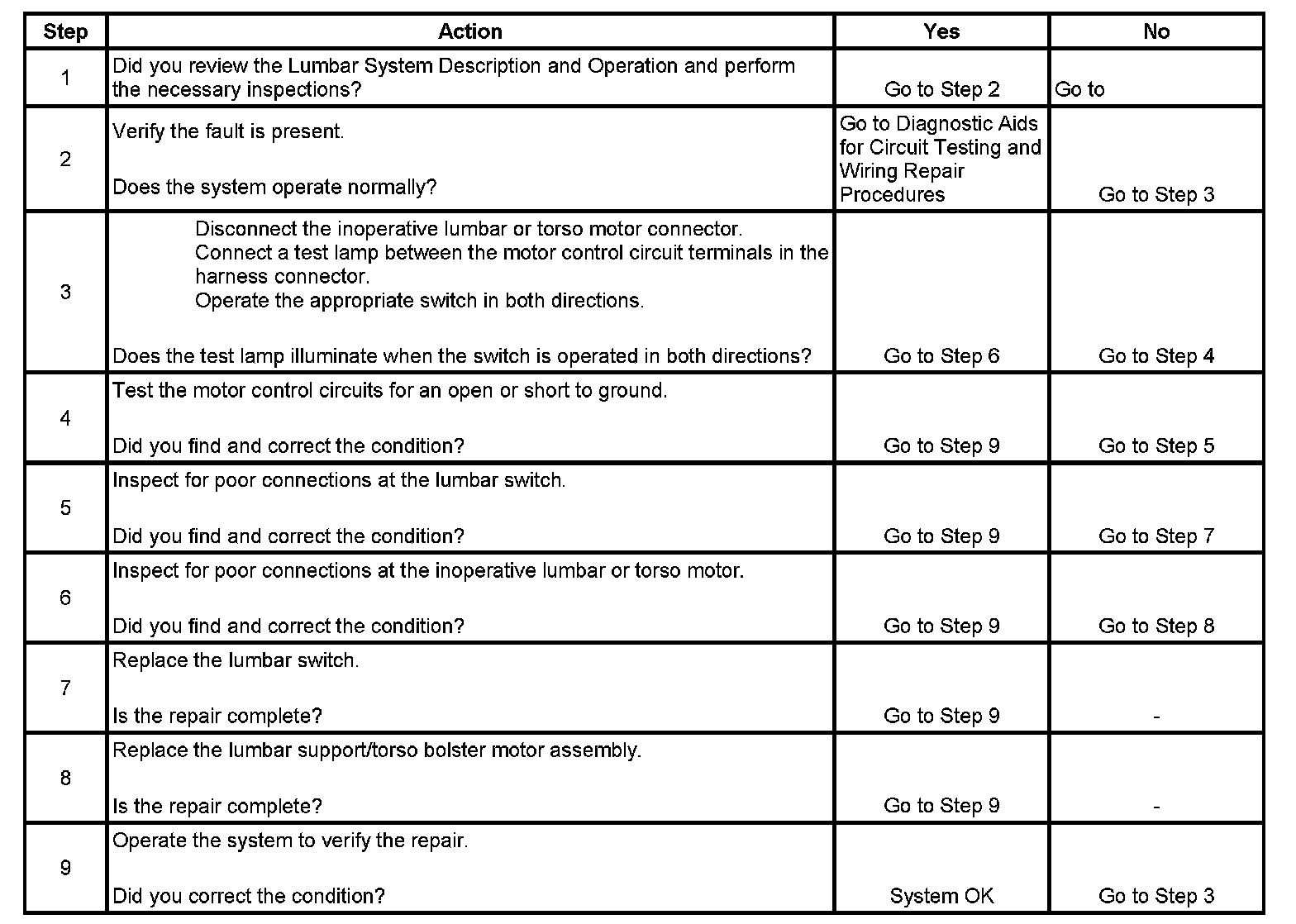

Test
Step 1 - Step 9:
