Front Seat Replacement - Bucket

Front Seat Replacement - Bucket

Removal Procedure

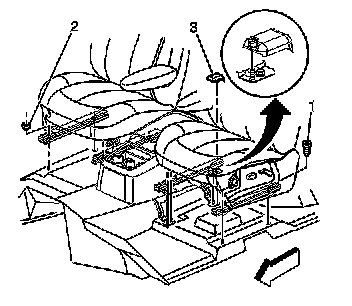

1. Move the seat to the full rearward position. Remove the front seat nut cover (3).
2. Remove the seat retaining front nuts (1).
3. Move the seat to the full forward position in order to remove the seat retaining rear bolts (2).
4. Disconnect the electrical harness.
5. Remove the seat from the vehicle.

Installation Procedure




1. Position the seat in the vehicle.
2. Connect the electrical harness.

Notice: Refer to Fastener Notice.

3. With the seat in the full forward position. Install the seat retaining rear bolts (1).

Tighten the retaining rear bolts to 55 N.m (41 lb ft).

4. Install the front seat retaining bolt cover (3).
5. Move the seat to the full rearward position, and install the seat retaining front nuts (2).

Tighten the nuts to 55 N.m (41 lb ft).
