Heated Seat Always On - Rear
Heated Seat Always On - Rear
Heated Seat Always On - Rear
Test
Step 1 - Step 12:

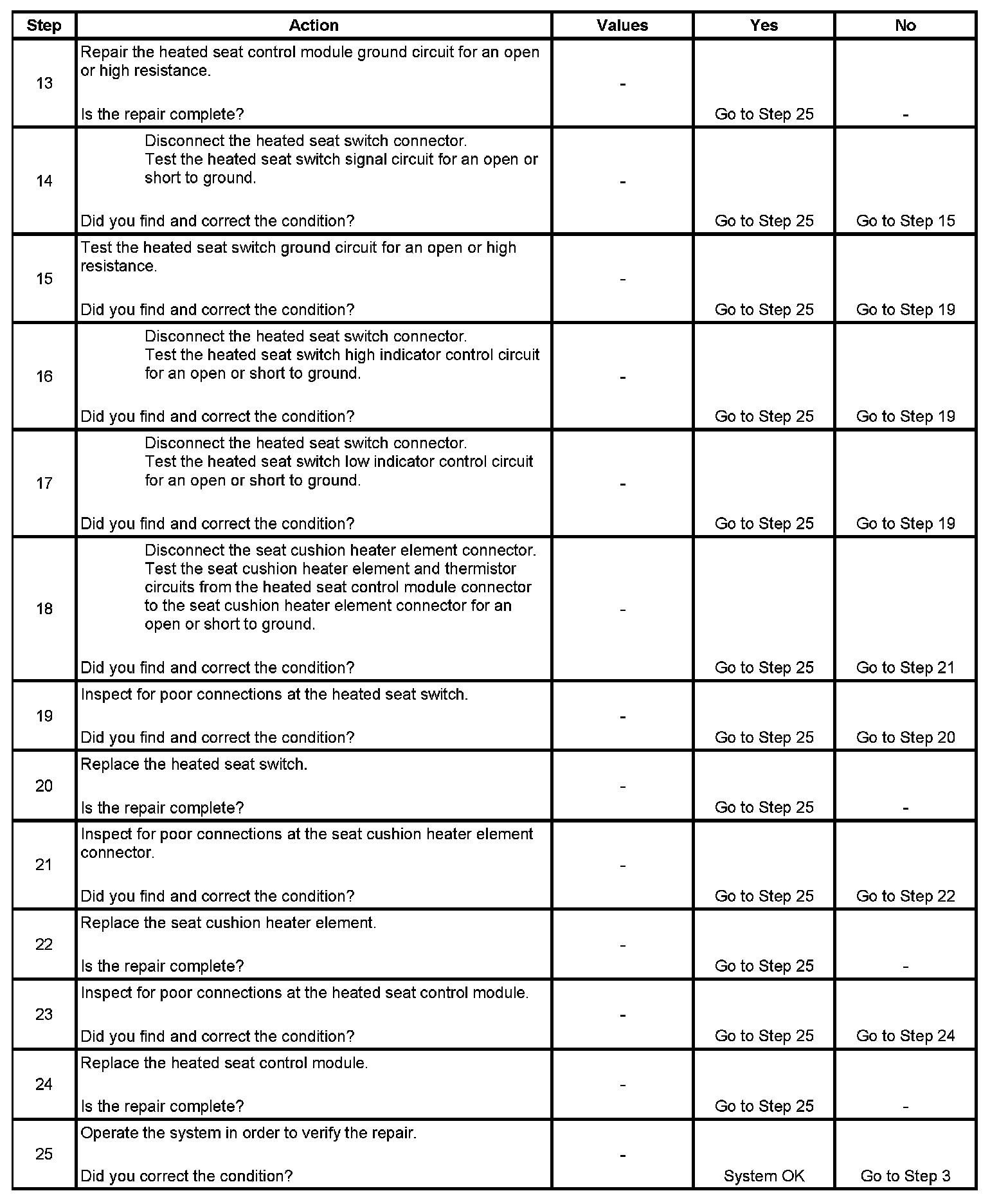

Step 13 - Step 25:
