Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Heated Seat Always On

Heated Seat Always On

Heated Seat Always On

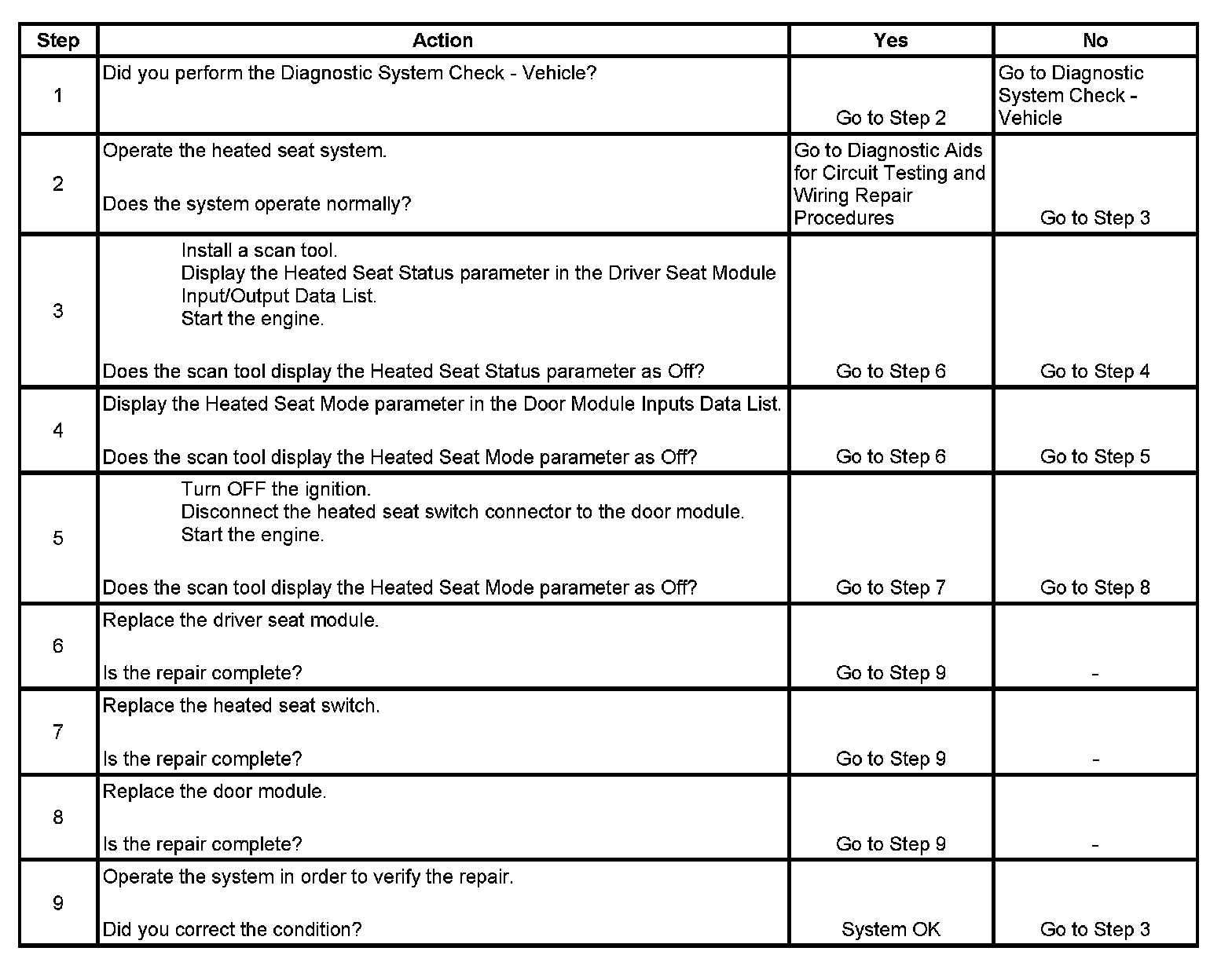

Test

Step 1 - Step 9:
