Power Seat Connector End Views



Power Seat Connector End Views

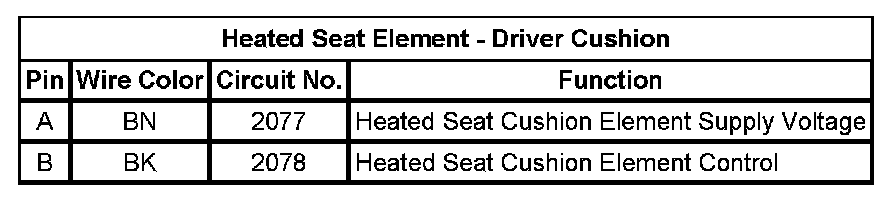

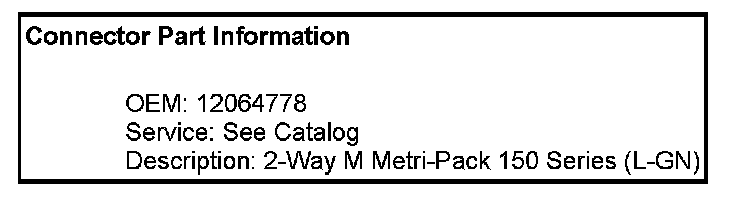

Heated Seat Element - Driver Cushion

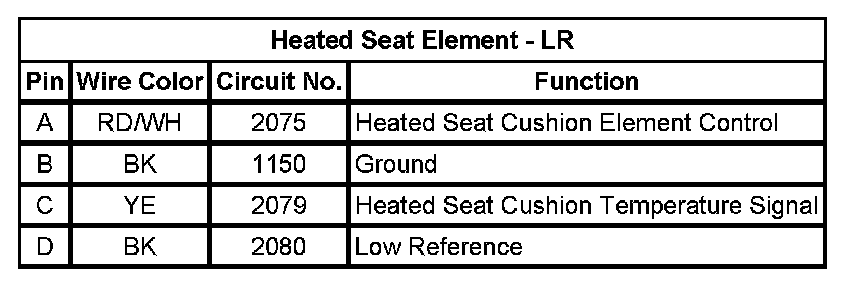

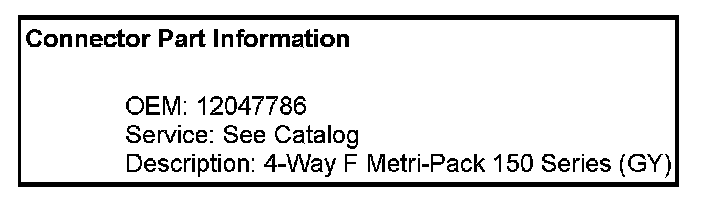

Heated Seat Element - LR

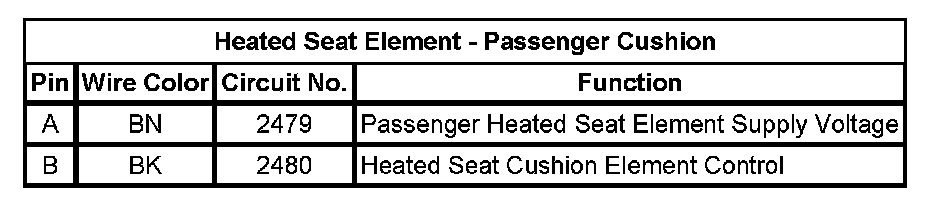

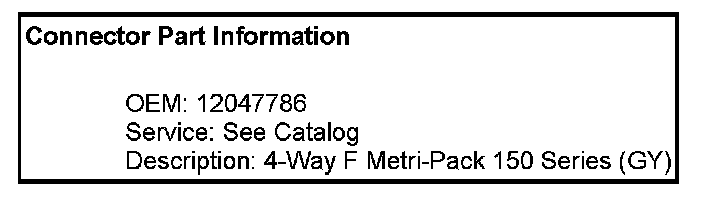

Heated Seat Element - Passenger Cushion

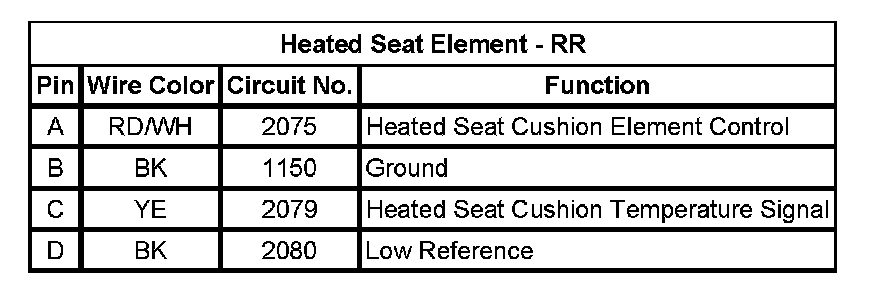

Heated Seat Element - RR
