Rear Seat Back Cushion Frame Replacement

Rear Seat Back Cushion Frame Replacement

Removal Procedure




1. Remove the seat from the vehicle.
2. Remove the armrest, if equipped.
3. Partially remove the seat-back cover in order to gain access to the retaining bolts. Refer to Rear Seat Back Cushion Cover and Pad Replacement.
4. Remove the bolts from the seat-back frame.

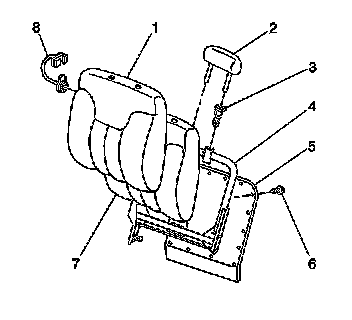

5. Remove the seat-back frame (4) from the seat back cushion frame.

Installation Procedure




1. Install the seat-back frame (4) to the seat cushion frame.

Notice: Refer to Fastener Notice.

2. Install the bolts which retain the seat-back frame to the seat cushion frame.

Tighten the bolts to 35 N.m (26 lb ft).

3. Install the seat-back cover.
4. Install the armrest to the seat back.
5. Install the seat to the vehicle.
