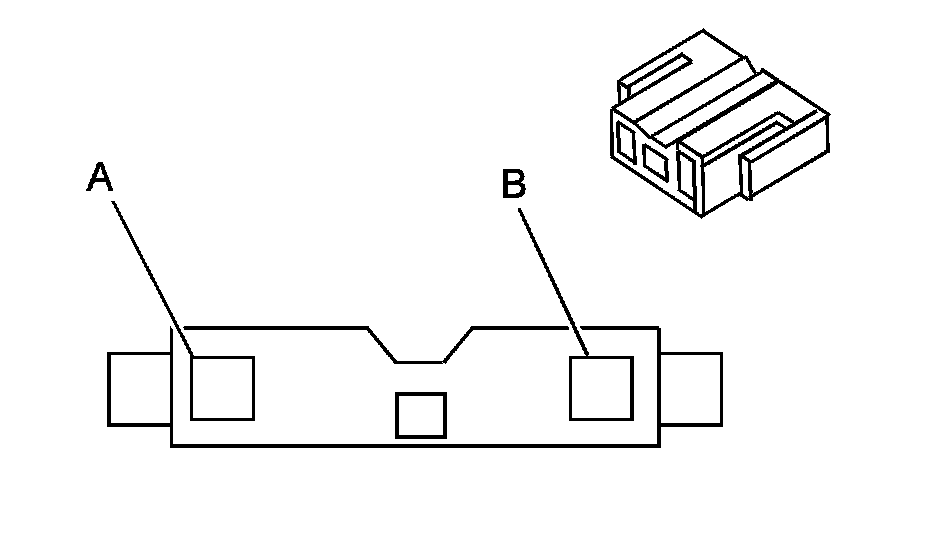

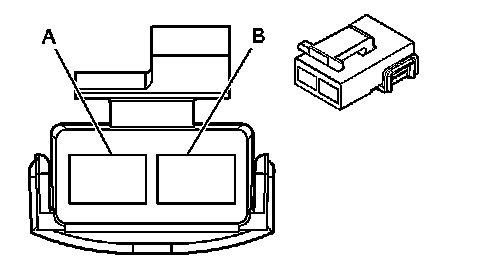

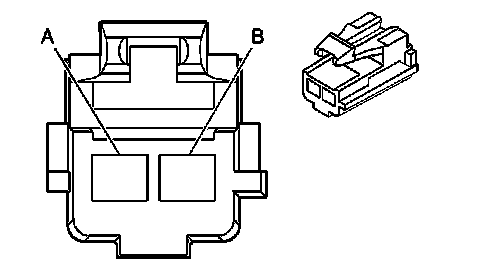

Power Seat Connector End Views



Power Seat Connector End Views

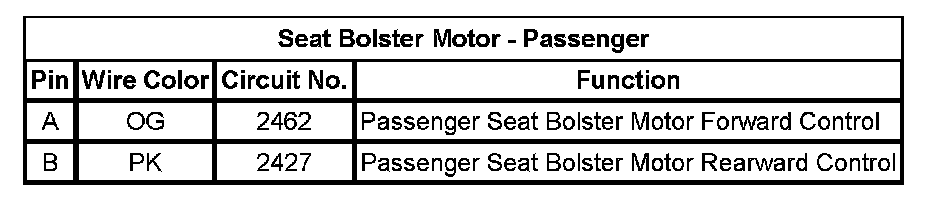

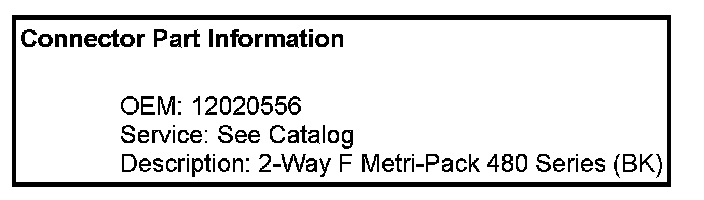

Seat Bolster Motor - Passenger














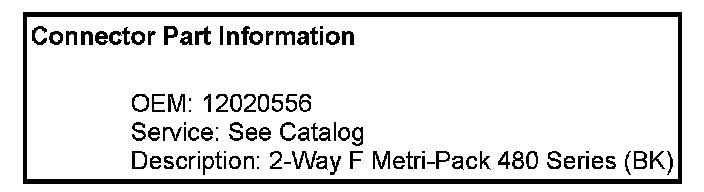

Seat Bolster Motor/Position Sensor - Driver

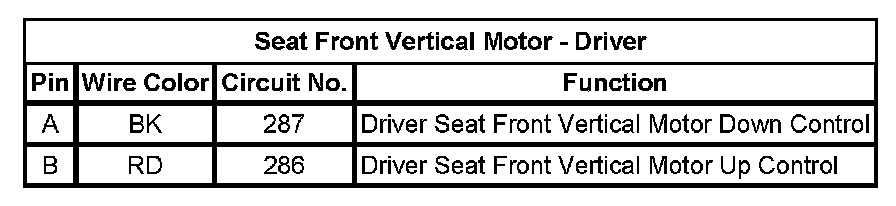

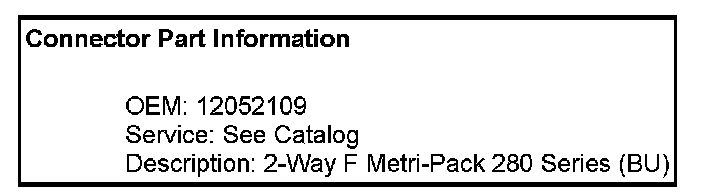

Seat Front Vertical Motor - Driver














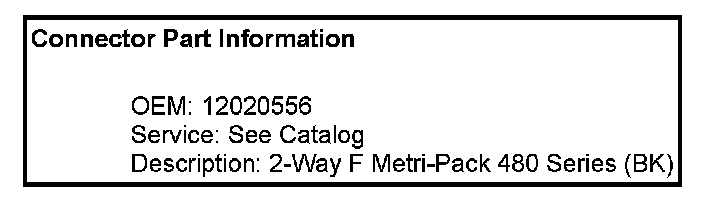

Seat Front Vertical Motor - Passenger

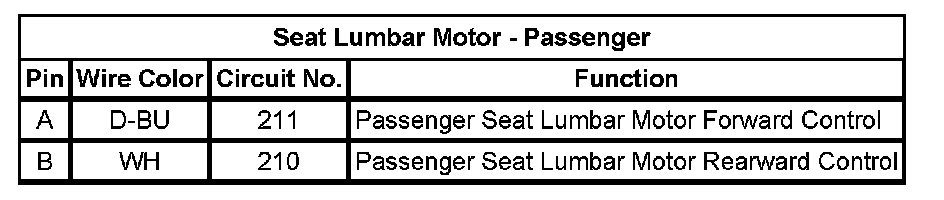

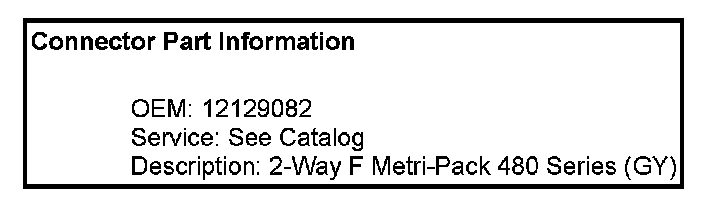

Seat Lumbar Motor - Passenger














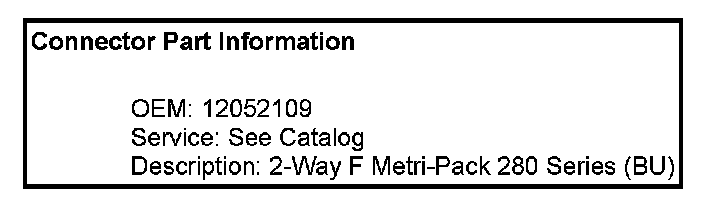

Seat Lumbar Motor/Position Sensor - Driver














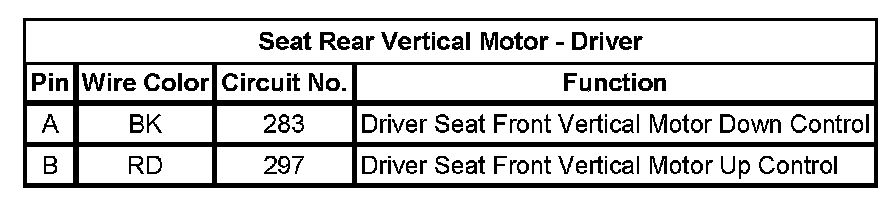

Seat Rear Vertical Motor - Driver

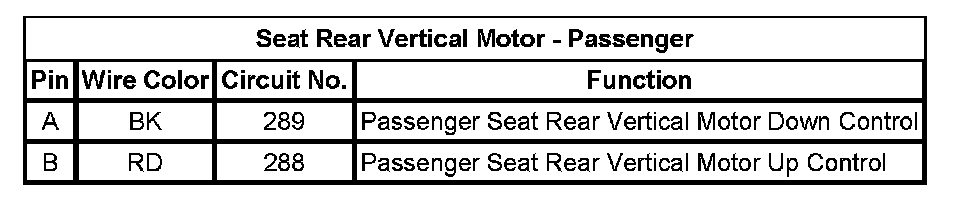

Seat Rear Vertical Motor - Passenger

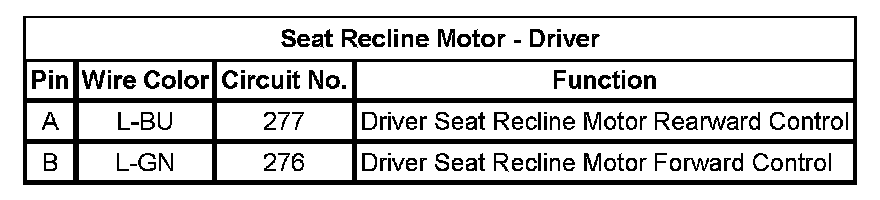

Seat Recline Motor - Driver

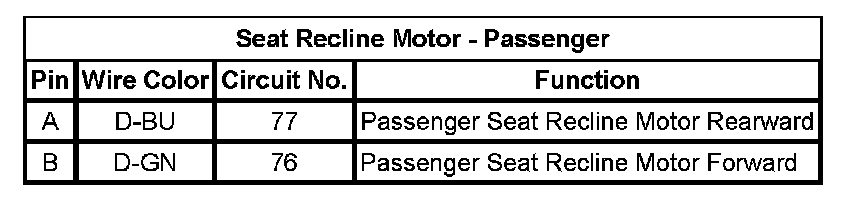

Seat Recline Motor - Passenger
