Sunroof / Moonroof Windguard: Service and Repair

Sunroof Air Deflector Replacement

Removal Procedure

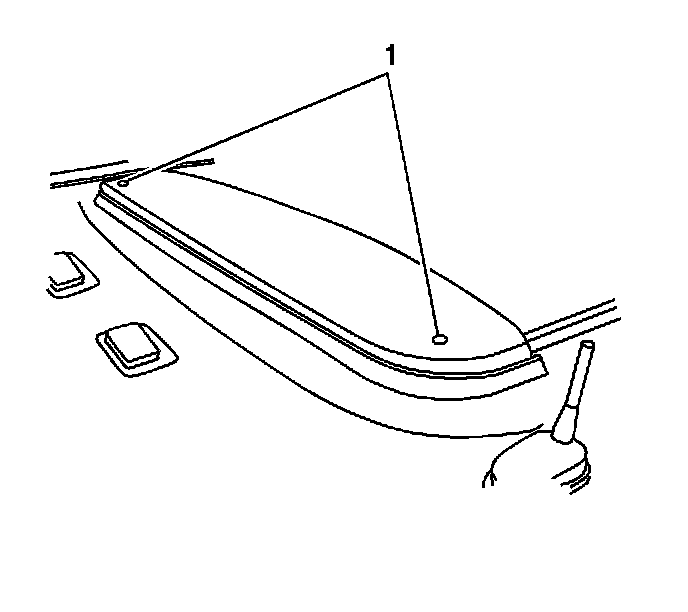

1. Remove the 2 outboard fasteners (1) retaining the air deflector to the air deflector retaining clips.




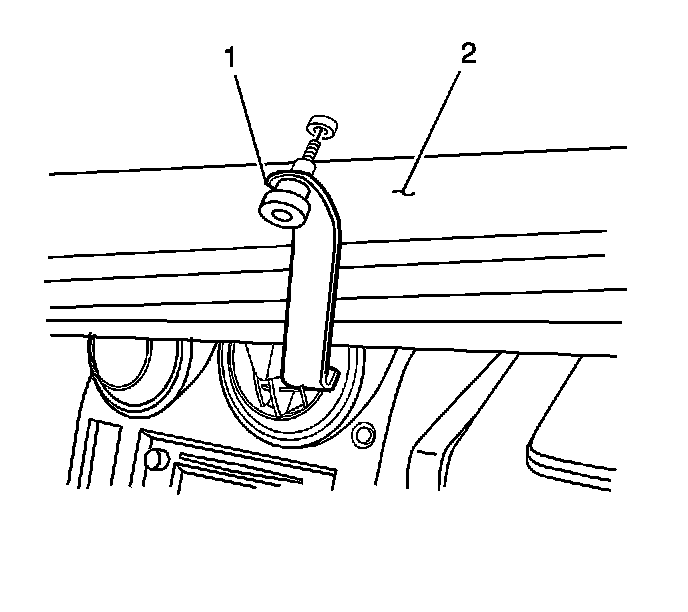

2. Open the sunroof and remove the center retaining clip fastener and the 3 retaining clips (1).

Installation Procedure




1. Attach the air deflector retaining clips loosely to the deflector.

Notice: Refer to Fastener Notice.

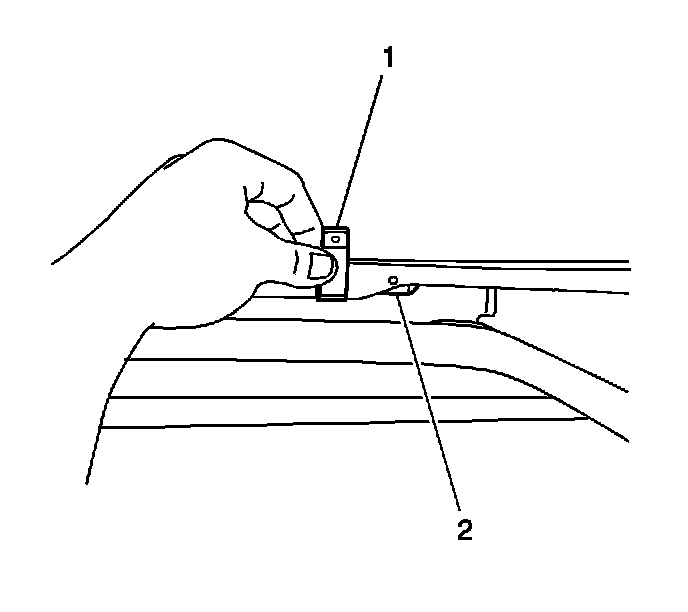

2. Align the air deflector in place on the vehicle, ensuring that the retaining clips are in place under the lip (2) on the sunroof opening.

Tighten the fasteners to 2.5 N.m (22 lb in).
