Sunroof Housing Rear Drain Hose Replacement (SUT) 2

Sunroof Housing Rear Drain Hose Replacement (SUT)

Removal Procedure




1. Remove the headliner.
2. Disconnect the drain hose from the sunroof module.

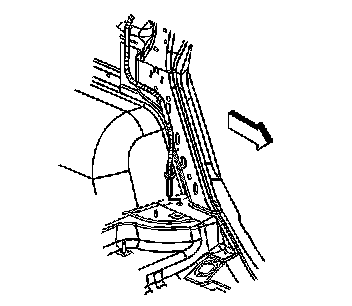

3. Remove the drain hose from the floor pan.
4. Remove the sunroof drain hose from the vehicle.

Installation Procedure




1. Install the sunroof drain hose to the vehicle.
2. Install the drain hose in the floor pan.
3. Connect the drain hose to the sunroof module.
4. Install the headliner.
