Sunroof Housing Front Drain Hose Replacement

Sunroof Housing Front Drain Hose Replacement

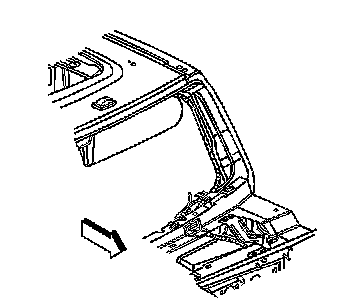

Removal Procedure




1. Remove the headliner.
2. Disconnect the drain hose from the sunroof module.
3. Disconnect the drain hose from the cowl area.
4. Remove the front drain hose from the vehicle.

Installation Procedure

1. Install the front drain hose to the vehicle.




2. Connect the drain hose to the sunroof module.
3. Connect the drain hose to the cowl.
4. Install the headliner.
