Sun Shade: Service and Repair

Sunroof Sunshade Replacement

Removal Procedure




1. Lower the headliner as necessary.

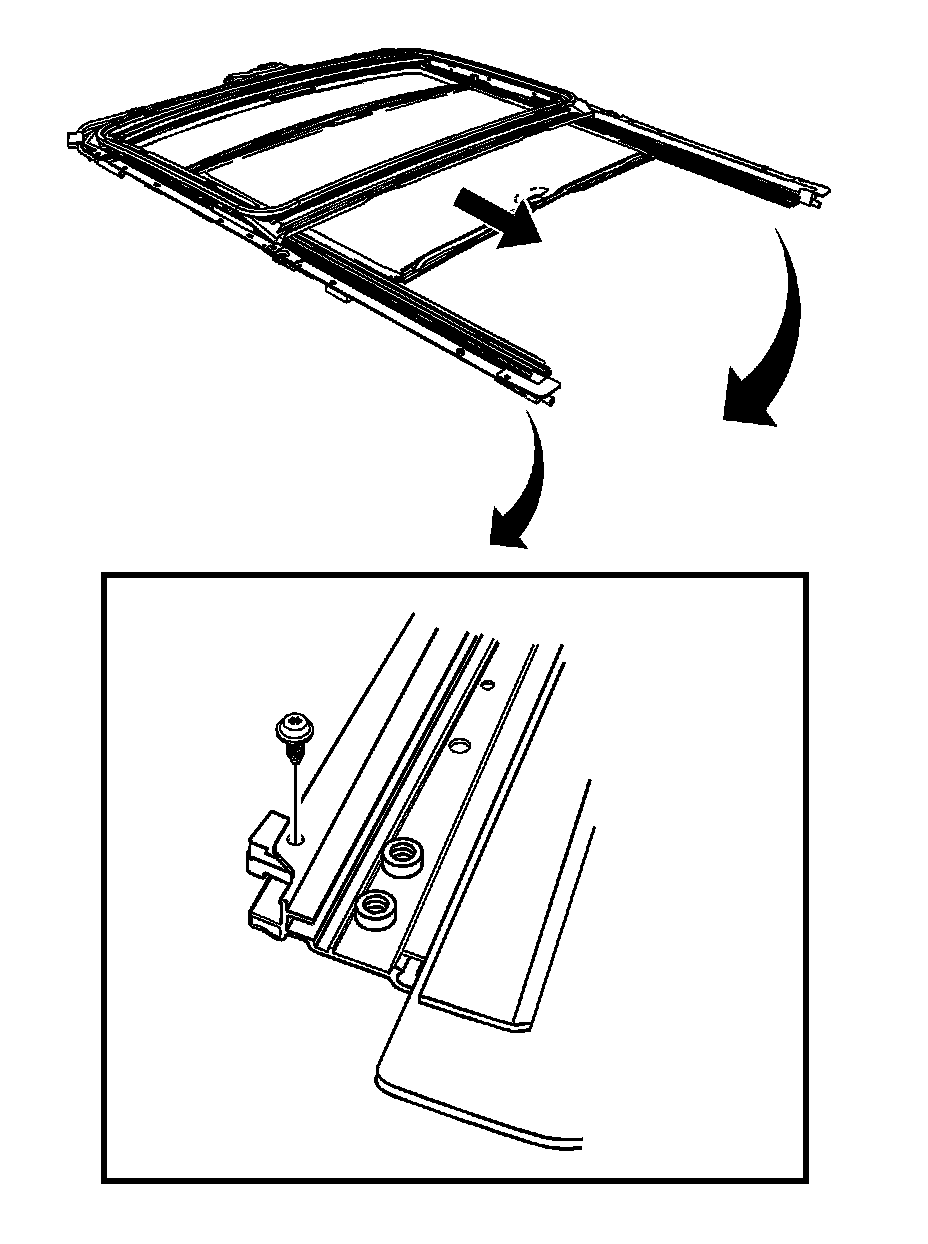

2. Accessing the screw on the top side of the module, remove the sunshade panel rubber stops.
3. Remove the sunshade panel by sliding rearward out of the sunroof module.

Installation Procedure




1. Install the sunshade panel by sliding forward into the sunroof module.

Notice: Refer to Fastener Notice.

2. Install the sunshade panel rubber stops.

Tighten the stop screws to 3 N.m (26 lb in).

3. Install the headliner.
