Trunk / Liftgate Relay: Diagrams

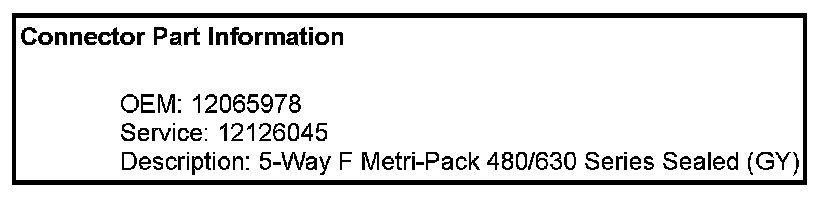

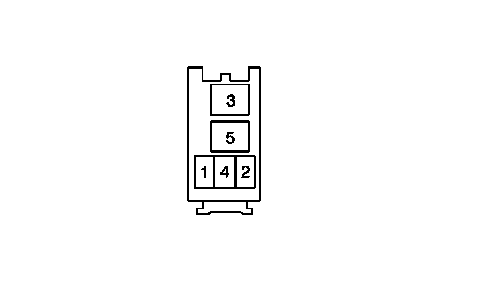

Vehicle Access Connector End Views

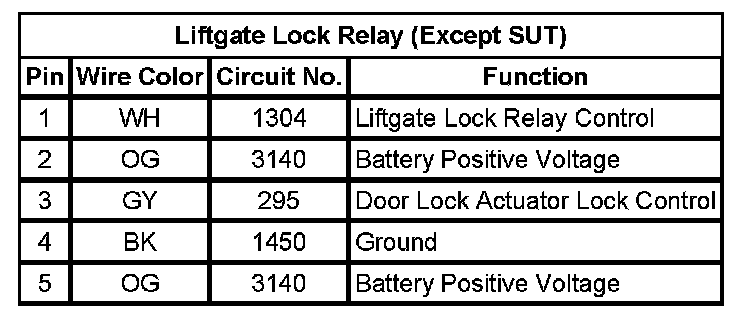

Liftgate Lock Relay (Except SUT)
