Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Body and Frame >> Relays and Modules - Body and Frame >> Sunroof / Moonroof Module >> Locations

Sunroof / Moonroof Module: Locations

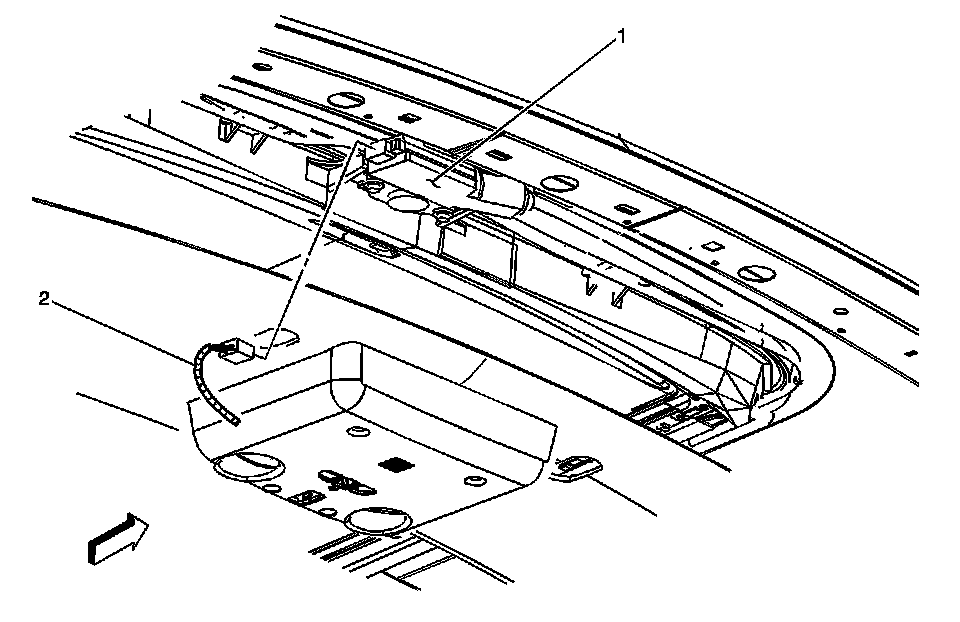

Sunroof Component Views

Sunroof Module




1 - Sunroof Module
2 - Headliner Harness
