Power Seat Control Module: Locations

Power Seat Component Views

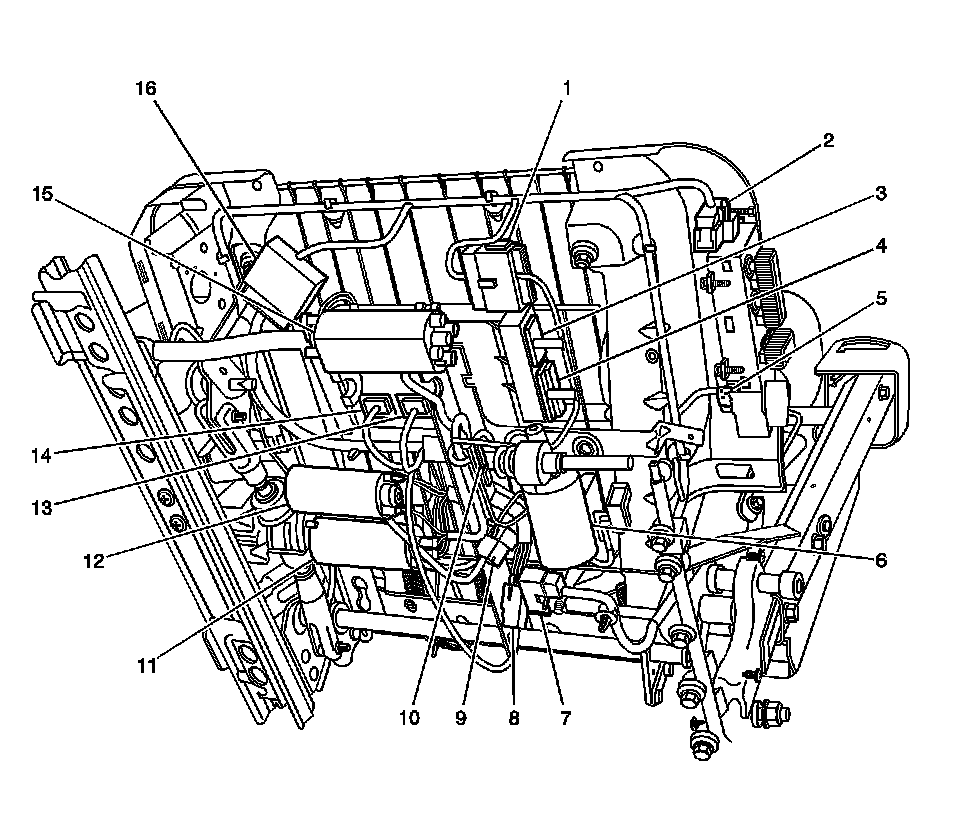

Driver Seat Sub-System Components




1 - C327
2 - Seat Adjuster Switch-Driver
3 - Memory Seat Module-C4
4 - Memory Seat Module-C3
5 - Seat Bolster/Lumbar Switch-Driver
6 - Seat Recline Motor-Driver
7 - C325
8 - C329
9 - C330
10 - C328
11 - Seat Rear Vertical Motor-Driver
12 - Seat Front Vertical Motor-Driver
13 - Memory Seat Module-C2
14 - Memory Seat Module-C1
15 - Seat Horizontal Motor-Driver
16 - C326
