Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Mirrors - Memory Functions Inoperative

Power Mirrors - Memory Functions Inoperative



Power Mirrors - Memory Functions Inoperative

Test

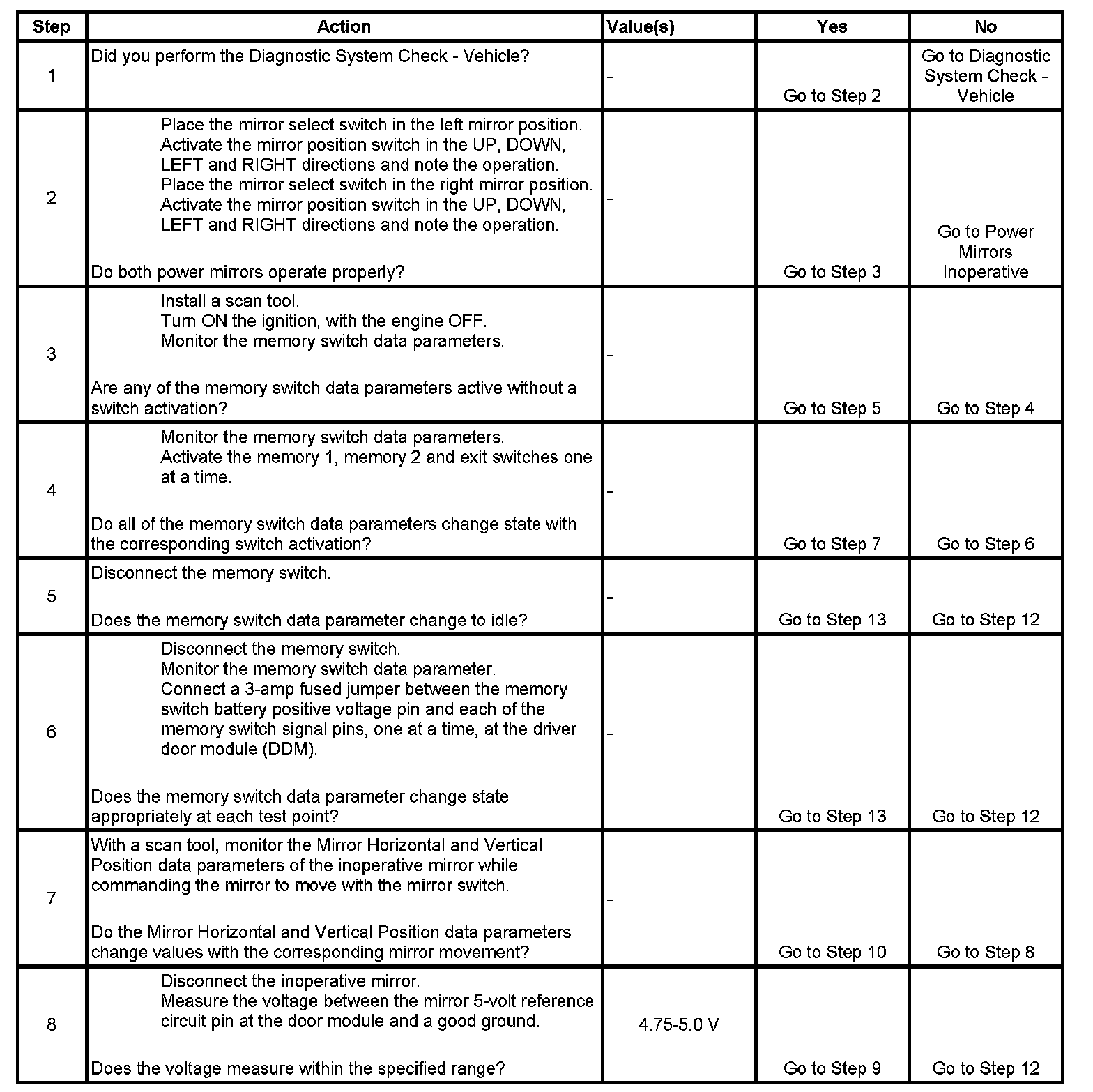

Step 1 - Step 8:

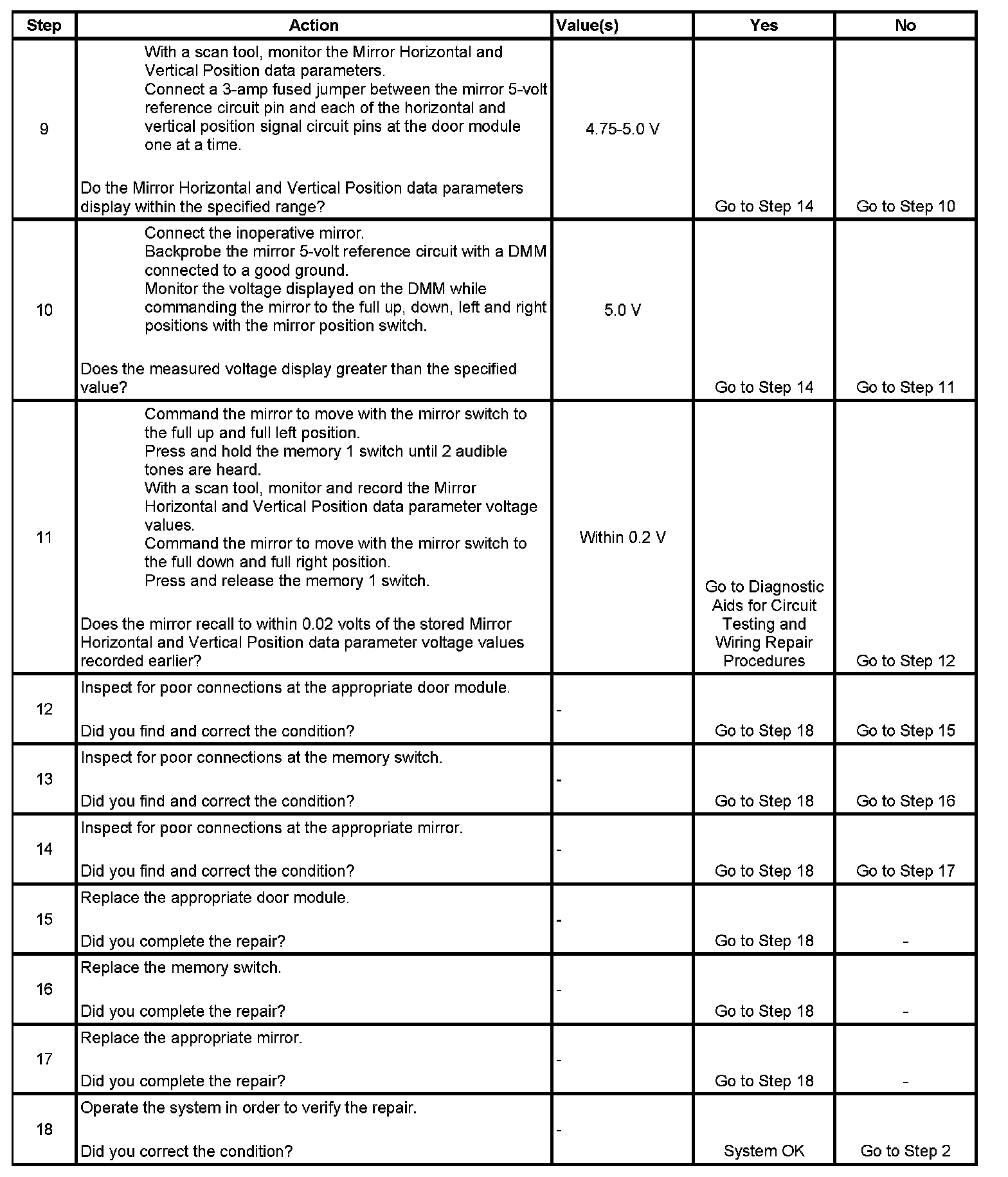

Step 9 - Step 18:
