Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Door Locks Inoperative - Endgate/Liftgate

Power Door Locks Inoperative - Endgate/Liftgate



Power Door Locks Inoperative - Endgate/Liftgate

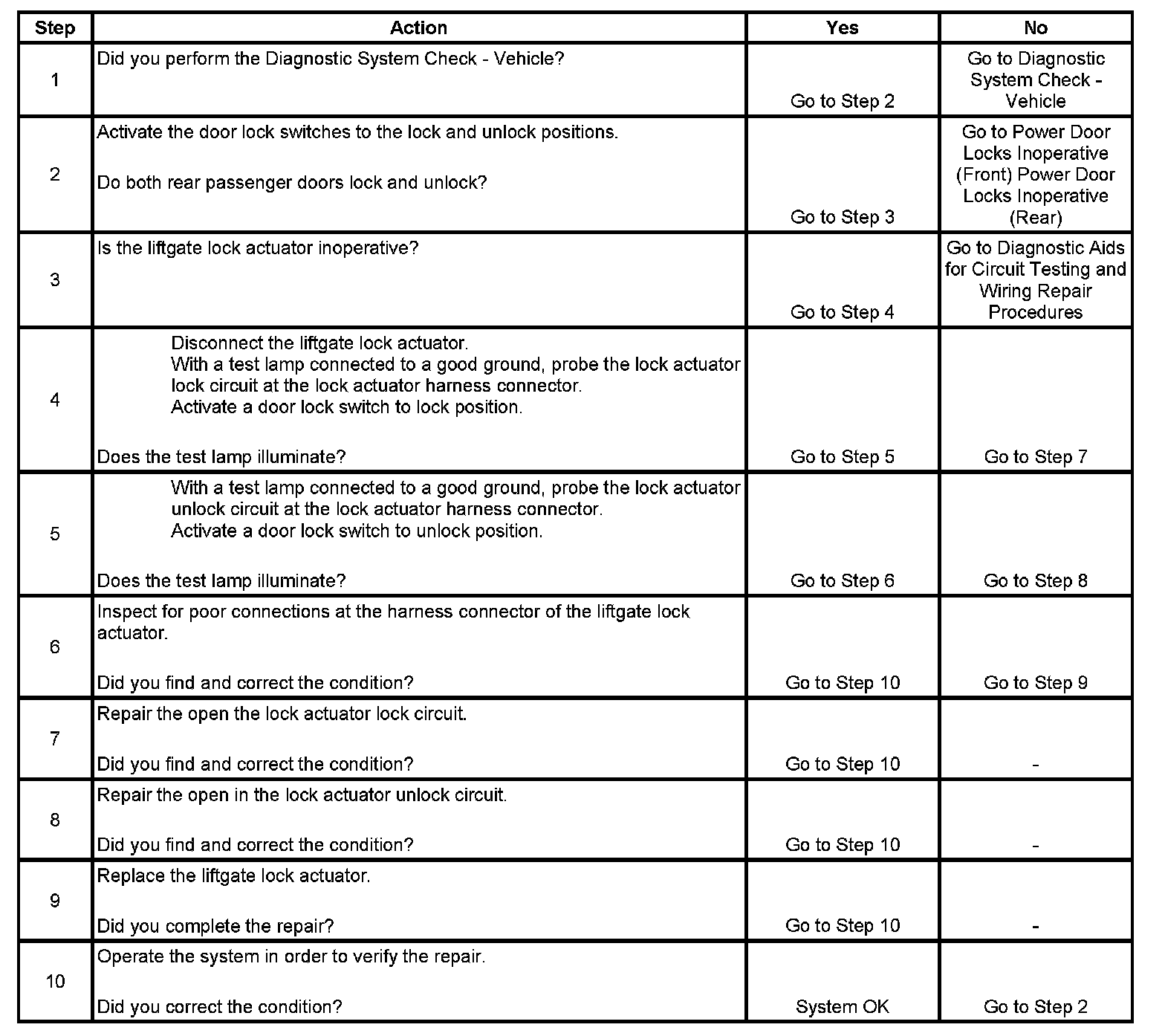

Test

Step 1 - Step 10:
