Power Door Locks Inoperative (Rear)
Power Door Locks Inoperative (Rear)
Power Door Locks Inoperative (Rear)
Test

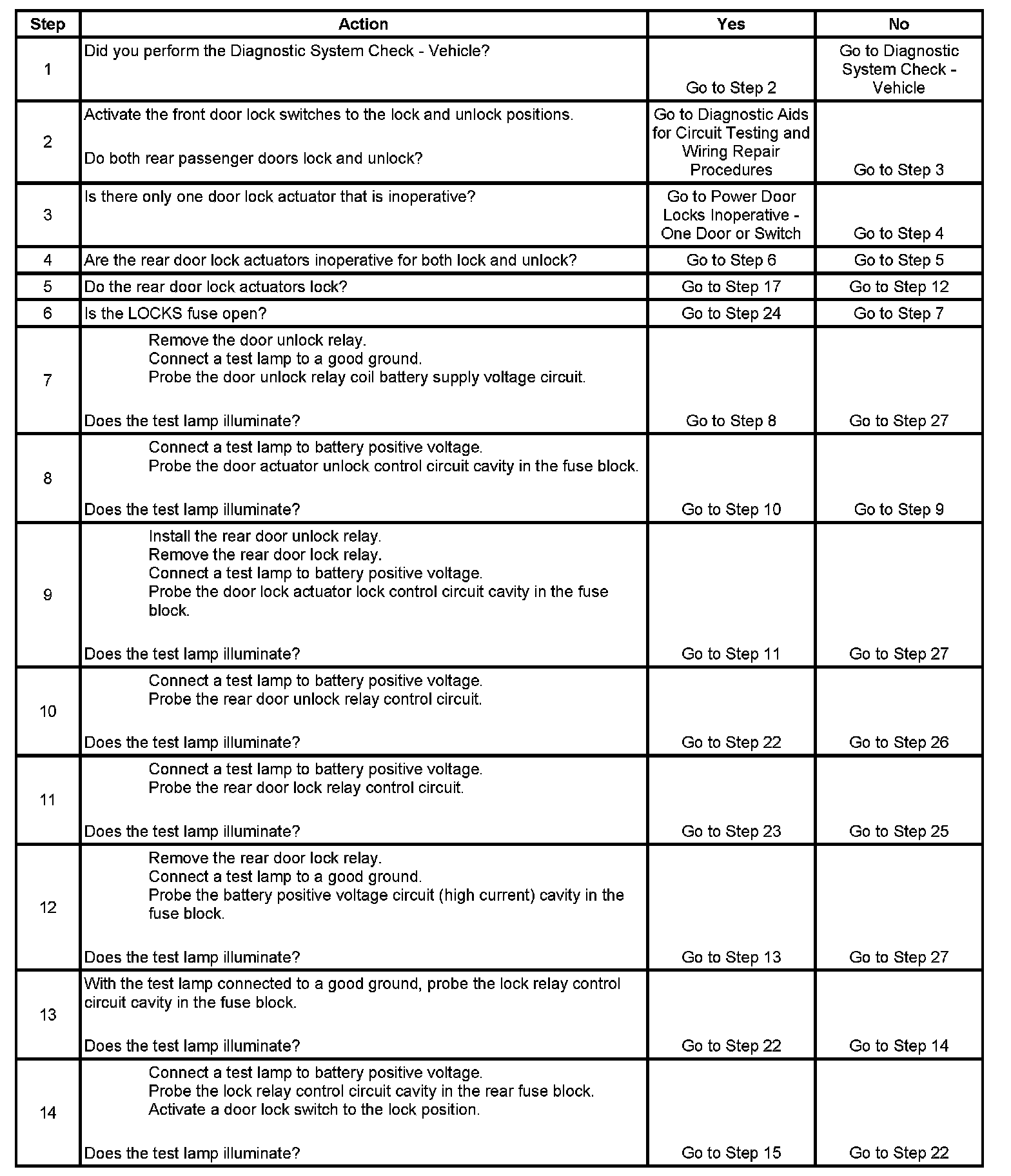

Step 1 - Step 14:

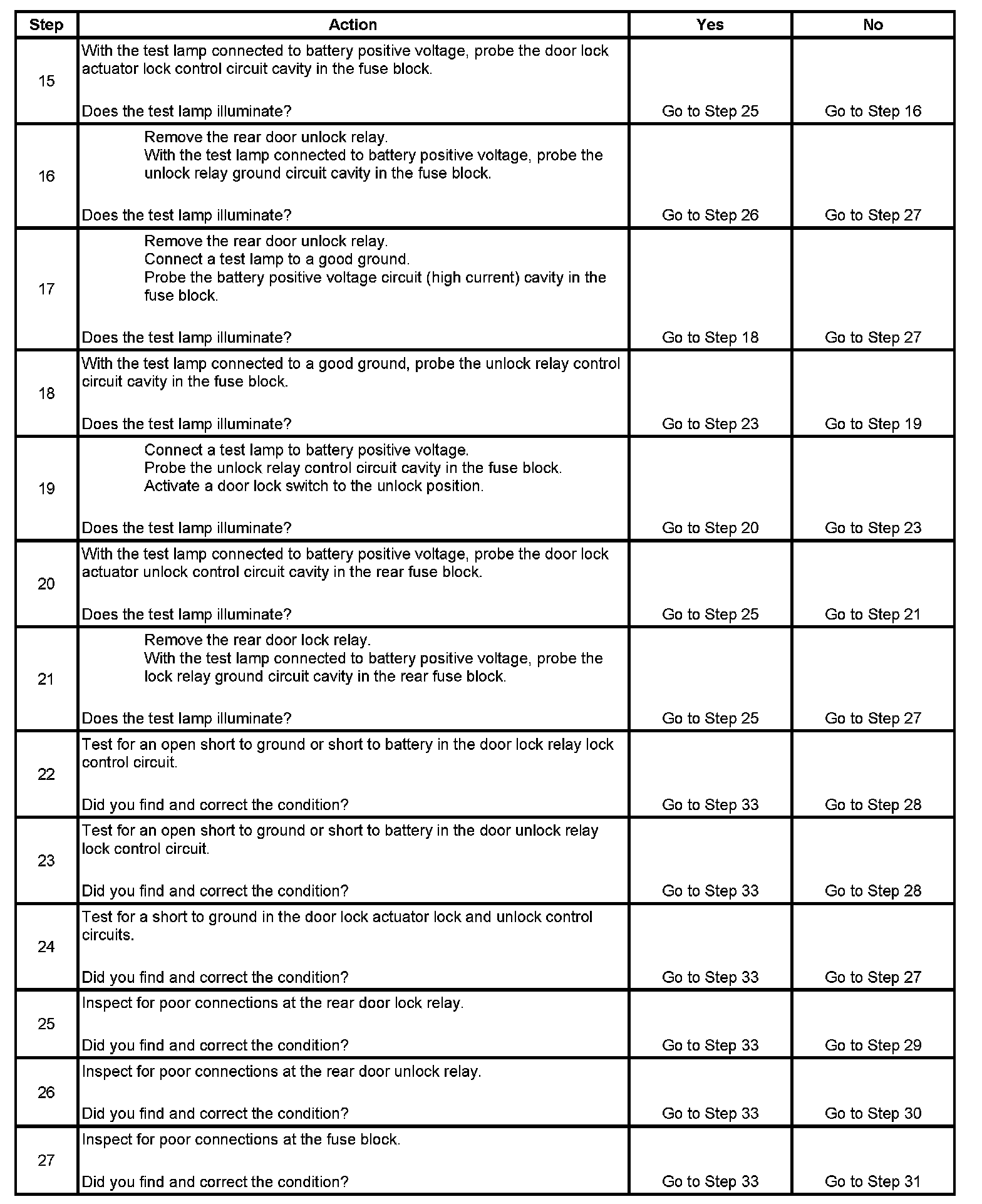

Step 15 - Step 27:

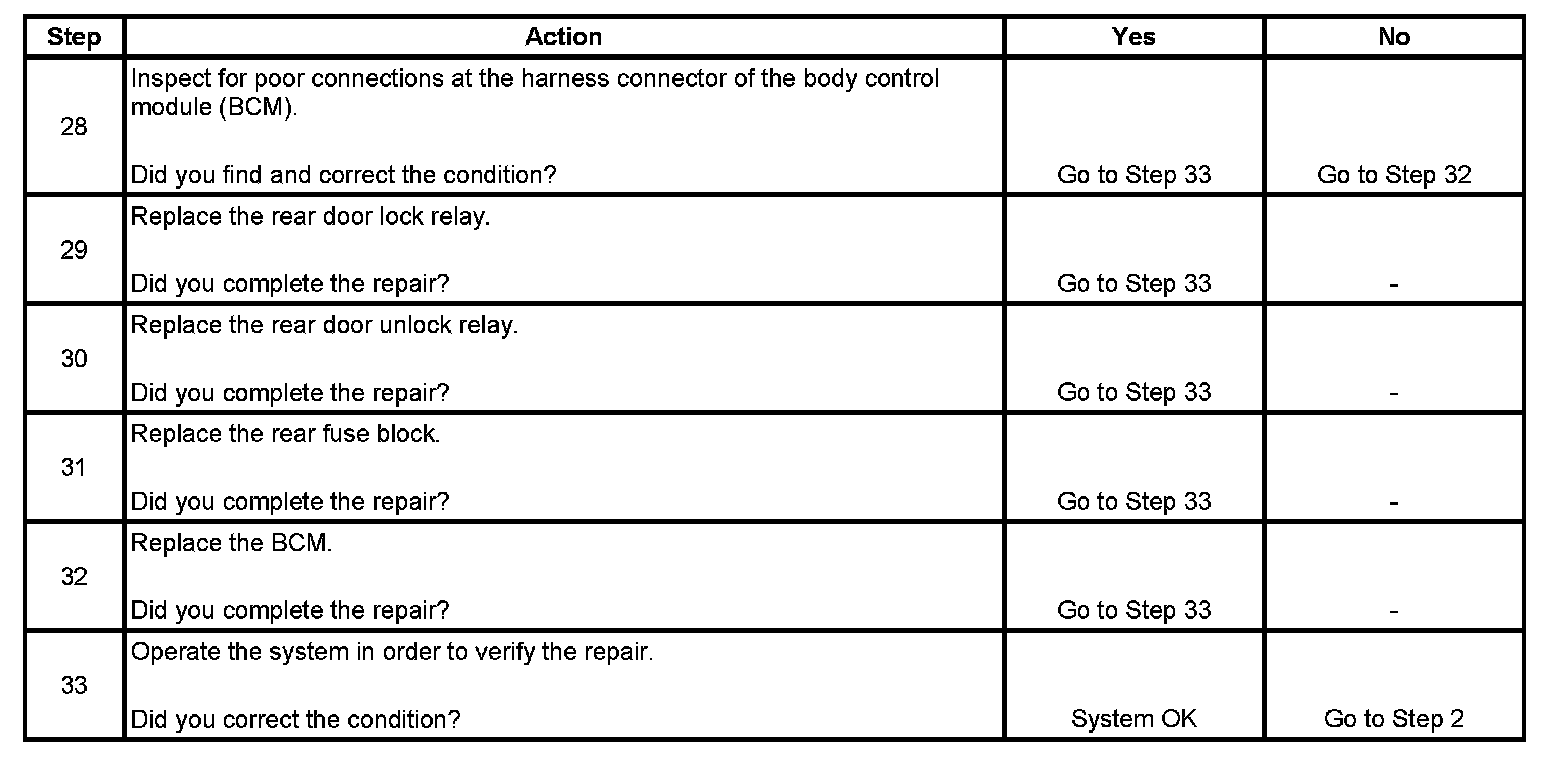

Step 28 - Step 33:
