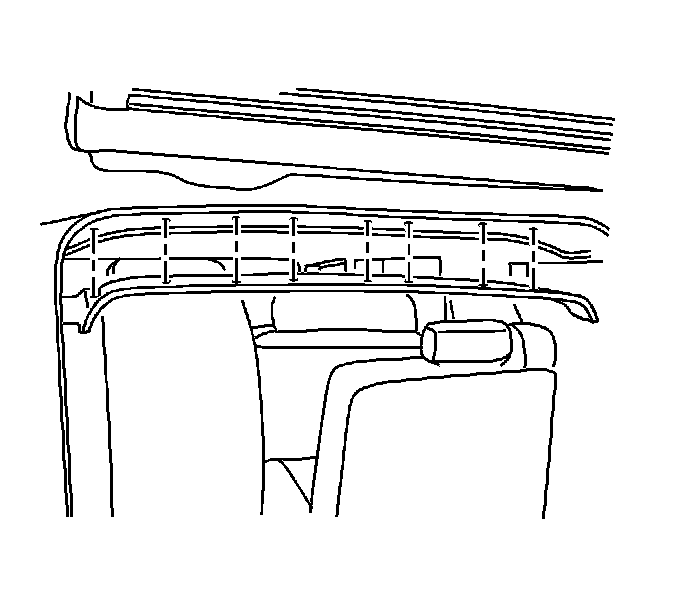

Rear Upper Garnish Molding Replacement

Rear Upper Garnish Molding Replacement

Removal Procedure




1. Firmly grasp the retaining fasteners and pull gently in order to disengage the fasteners.
2. Remove the garnish molding from the vehicle.
3. Inspect for broken or missing fasteners. Replace the fasteners as necessary before installation.

Installation Procedure




1. Align the garnish molding with the openings in the body.
2. Install the retaining fasteners through the garnish molding.
3. Press gently to fully engage the fasteners.
