Rear Compartment Side Trim Replacement - Left Side

Rear Compartment Side Trim Replacement - Left Side

Removal Procedure

1. Open the spare tire carrier to the full open position.
2. Lower the endgate.
3. Remove the left rear sail panel molding.
4. Open the midgate.
5. Release the exterior midgate weatherstrip up to the stationary opera quarter window.




6. Remove the bolts (1) securing the rear cargo liner tie down loops (2) to the body.
7. Remove the bolts, loops and floor liner from the vehicle.

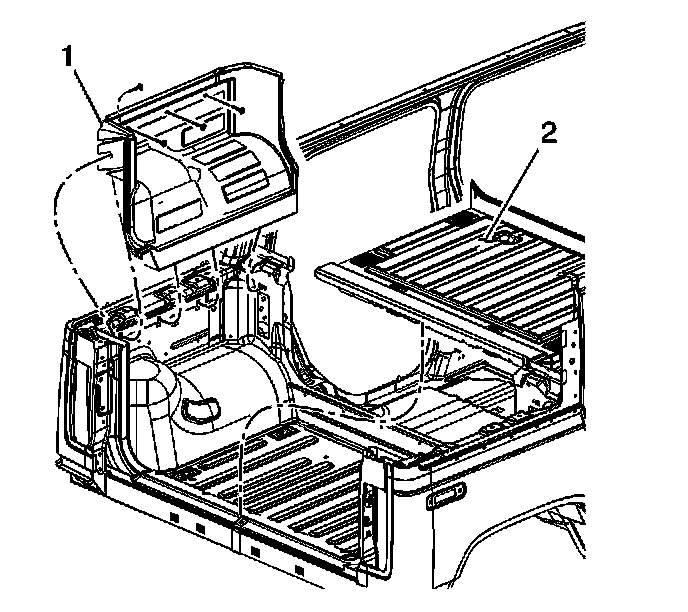

8. Remove the screws securing the left rear compartment side trim panel (1) to the body.
9. Remove the left rear compartment side trim panel from the pickup box.

Installation Procedure




1. Position the left rear compartment side trim panel (1) to the pickup box.

Notice: Refer to Fastener Notice.

2. Install the screws.

Tighten the screws to 10 N.m (89 lb in).

3. Position the floor liner to the floor.
4. Install the cargo tie down loops.
5. Install the cargo tie down loop bolts.

Tighten the bolts to 10 N.m (89 lb in).

6. Reposition the midgate weatherstrip onto the pinch-weld flange and over the floor liner and front edge of the left rear compartment side trim panel.
7. Close the midgate.
8. Install the left rear sail panel molding.
9. Close the endgate.
10. Latch and secure the spare tire carrier.
