Lock Pillar Upper Garnish Molding Replacement

Lock Pillar Upper Garnish Molding Replacement

Removal Procedure




1. Remove the center pillar upper garnish molding.

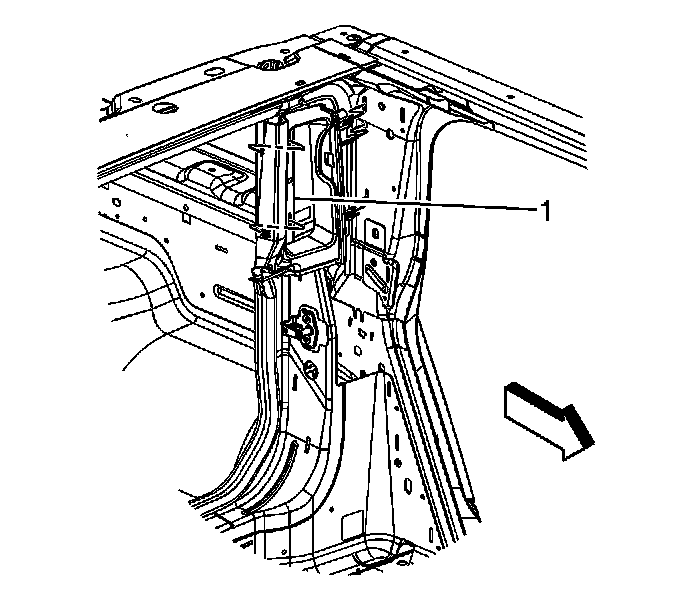

2. Carefully pull the lock pillar garnish molding (1) towards the front of the vehicle, only far enough to release the rearward facing clips.
3. Pull the lock pillar garnish molding (1) away from the body towards the center of the vehicle to release the remaining clips.
4. Remove the lock pillar garnish molding (1).

Installation Procedure




1. Align the lock pillar garnish molding (1) with the body.

Important: Ensure the molding clips are aligned with the openings in the body before pushing on the panel to engage the molding clips.

2. Push the lock pillar garnish molding (1) towards the outside of the body to engage clips.
3. Push the lock pillar garnish molding (1) towards the rear of the vehicle to engage the remaining clips.
4. Install the lock pillar garnish molding (1).
