Front Floor Kick-Up Panel Replacement

Front Floor Kick-Up Panel Replacement

Removal Procedure




1. Remove the front door sill plate.

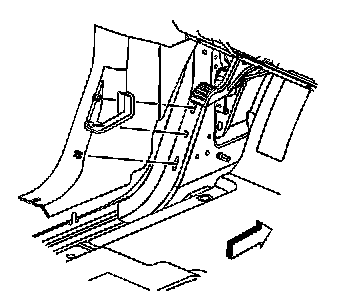

2. Firmly grasp and gently pull the front floor kick-up panel to disengage the retaining clips.
3. Remove the front floor kick-up panel from around the hood release lever, if necessary.
4. Inspect for broken or missing retaining clips and replace as necessary.

Installation Procedure




1. Install the front floor kick-up panel around the hood release lever.
2. Align the retaining clips with the openings in the body.
3. Gently press to fully seat the retaining clips.
4. Install the front door sill plate.
