Center Pillar Upper Garnish Molding Replacement

Center Pillar Upper Garnish Molding Replacement

Removal Procedure




1. Remove the endgate center molding.

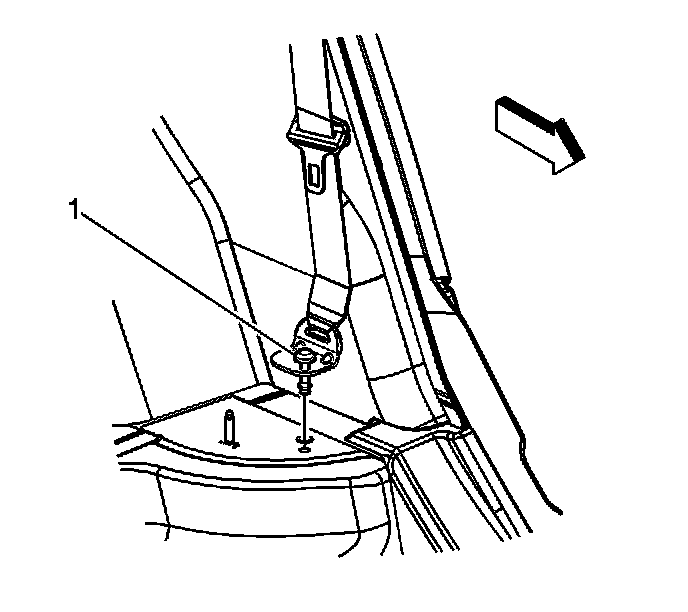

2. Remove the rear seat belt lower anchor bolt (1).
3. Open the endgate.

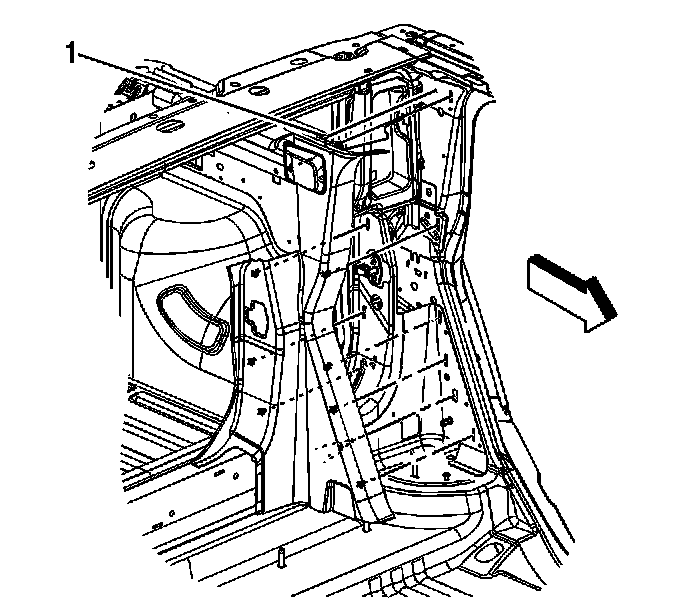

4. Pull the center pillar upper garnish (1) away from the body towards the center of the vehicle to release the clips.
5. Remove the seat belt from the center pillar upper garnish (1), through the opening on the trim.
6. Remove the center pillar upper garnish (1) from the vehicle.

Installation Procedure




1. Position the center pillar upper garnish (1) to the center pillar.
2. Feed the seat belt through the opening in the center pillar garnish (1).
3. Align the garnish molding clips to the center pillar.
4. Push the center pillar upper garnish (1) towards the body to engage the clips.




5. Install the rear seat belt lower anchor bolt (1).
6. Install the endgate center molding.
