Body Side Trim Panel Replacement - Left Side

Body Side Trim Panel Replacement - Left Side

Removal Procedure




1. Remove the spare tire carrier.
2. Remove the lock pillar trim panel.
3. Remove the liftgate sill plate.
4. Remove the rear pillar garnish panel.

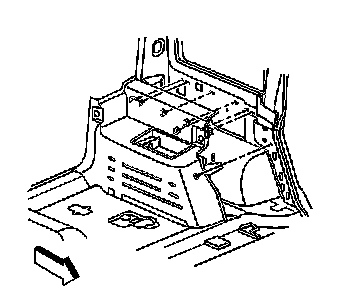

5. Firmly grasp the front edge of the left body side panel and gently pull to disengage the retaining clips.
6. Remove the left body side panel from the vehicle.

Installation Procedure




1. Install the left body side panel to the vehicle.
2. Align the retaining clips with the opening in the body and gently press to fully seat the retaining clips.
3. Install the rear pillar garnish panel.
4. Install the liftgate sill plate.
5. Install the lock pillar trim panel.
6. Install the spare tire carrier.
