Body Lock Pillar Trim Panel Replacement

Body Lock Pillar Trim Panel Replacement

Removal Procedure




1. Fold the rear seat No. 1 forward to access the seat belt bolt.
2. Remove the seat belt to floor mounting bolt.
3. Remove the vehicle jack and bracket, if necessary.

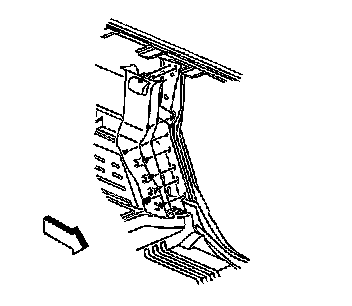

4. Firmly grasp and gently pull the lock pillar to disengage the retaining clips.
5. Feed the seat belt through the opening in the lock pillar trim panel.
6. Remove the lock pillar trim panel from the vehicle.
7. Inspect for broken or missing retaining clips and replace as necessary.

Installation Procedure




1. Install the lock pillar trim panel to the vehicle.
2. Feed the seat belt through the opening in the lock pillar trim panel.
3. Align the retaining clips with the openings in the body.
4. Gently press to fully seat the retaining clips.

Notice: Refer to Fastener Notice.

5. Install the vehicle jack and bracket if necessary.
6. Raise the jack after it is installed in the bracket to ensure that it is secure.

Tighten the bracket to 53 N.m (39 lb ft).

7. Install the seat belt to floor mounting bolt.
8. Fold the rear seat into the upright position.
