Body Hinge Pillar Trim Panel Replacement

Body Hinge Pillar Trim Panel Replacement

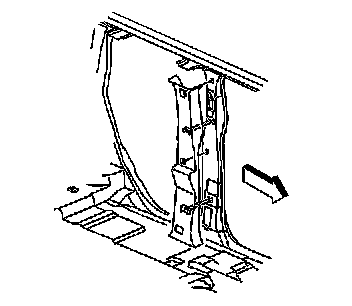

Removal Procedure

1. Remove close out panel at the top of the hinged pillar trim panel using a small flat bladed tool.
2. Remove the retaining screw.




3. Firmly grasp and gently pull to disengage the retaining clips.
4. Disconnect the lower lamp wire connector.
5. Remove the hinge pillar trim from the vehicle.
6. Inspect for broken or missing retaining clips and replace as necessary.

Installation Procedure




1. Install the hinge pillar trim to the vehicle.
2. Connect the lower lamp wire connector.
3. Align the locator pins and the retaining clips to the opening in the body.
4. Gently press to fully seat the retaining clips.
5. Install the retaining screw.
6. Install the close out panel.
