Liftgate Door Sill Plate Replacement

Liftgate Door Sill Plate Replacement

Removal Procedure

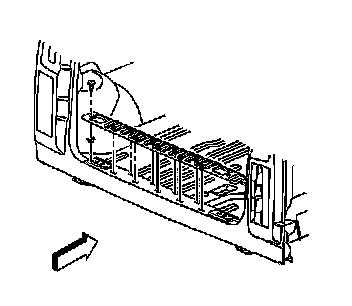

1. Remove the screws that retain the liftgate sill plate.
2. Firmly grasp and gently pull the liftgate sill plate to disengage the retaining clips.
3. Remove the liftgate sill plate from the vehicle.
4. Inspect for broken or missing retaining clips and replace as necessary.

Installation Procedure




1. Install the liftgate sill plate to the vehicle.
2. Align the retaining clips with the opening in the body.
3. Gently press to fully seat the retaining clips.

Notice: Refer to Fastener Notice.

4. Install the screws that retain the liftgate sill plate.

Tighten the screws to 2 N.m (18 lb in).
