Front Side Door Sill Plate Replacement

Front Side Door Sill Plate Replacement

Removal Procedure

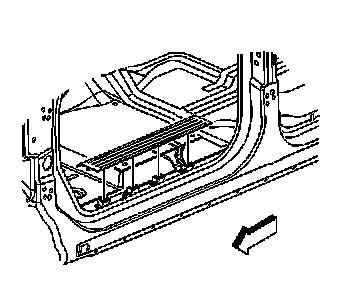

1. Firmly grasp and gently pull the front door sill plate to disengage the retaining clips.
2. Remove the front door sill plate from the vehicle.
3. Inspect for broken or missing retaining clips and replace as necessary.

Installation Procedure




1. Install the front door sill plate to the vehicle.
2. Align the retaining clips with the opening in the body.
3. Gently press to fully seat the retaining clips.
