Instrument Panel Compartment Door Lock Striker Replacement

Instrument Panel Compartment Door Lock Striker Replacement

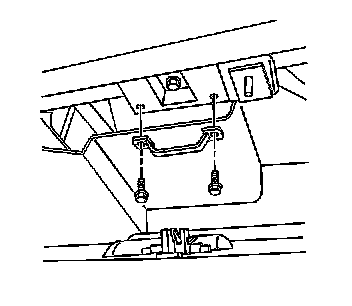

Removal Procedure

1. Open compartment door to expose compartment striker bracket.
2. Loosen screws/bolts holding striker bracket to I/P.




3. Remove striker bracket assembly from I/P.

Installation Procedure




1. Install striker bracket to instrument panel subscript loosely.

Notice: Refer to Fastener Notice.

2. Align striker with I/P compartment door and tighten striker bracket in place.

Tighten the screws to 1.6 N.m (14 lb in).
