Instrument Panel Insulator Replacement

Instrument Panel Insulator Replacement

Removal Procedure




1. Remove the retaining bolts.

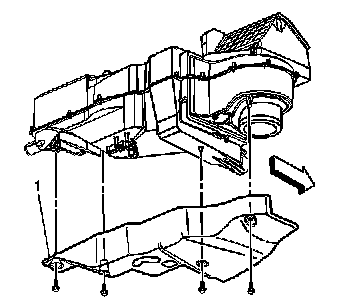

2. Remove the insulator (1) from the instrument panel by pulling downwards.

Installation Procedure

1. Install the insulator (1) to the instrument panel.






Notice: Refer to Fastener Notice.

2. Install the retaining bolts.

Tighten the bolts to 1.6 N.m (14 lb in).
